3.8.21 Camera Connectors

The Open-Q 820 development kit supports three 4-lane MIPI camera interfaces via three separate JAE 41-pin
connectors.
The following are some features of the camera connectors:
3 x 4 lane MIPI CSI signals
•
No support for integrated flash driver
•
Support for 3D camera configuration
•
o Separate I2C control (CCI0, CCI1)
• Supports all CSI interfaces
• All camera CSI connectors are on the carrier board edge
• Self-regulated camera modules can be powered with 3.3V power (MB_VREG_3P3)
JAE FI-RE41S-VF connector for exposing MIPI, CLK, GPIOs and Power rails.
• Uses
Please use JAE FI-RE41S-VF connector to access signals such as MIPI, CLK, GPIO
•
and power rails

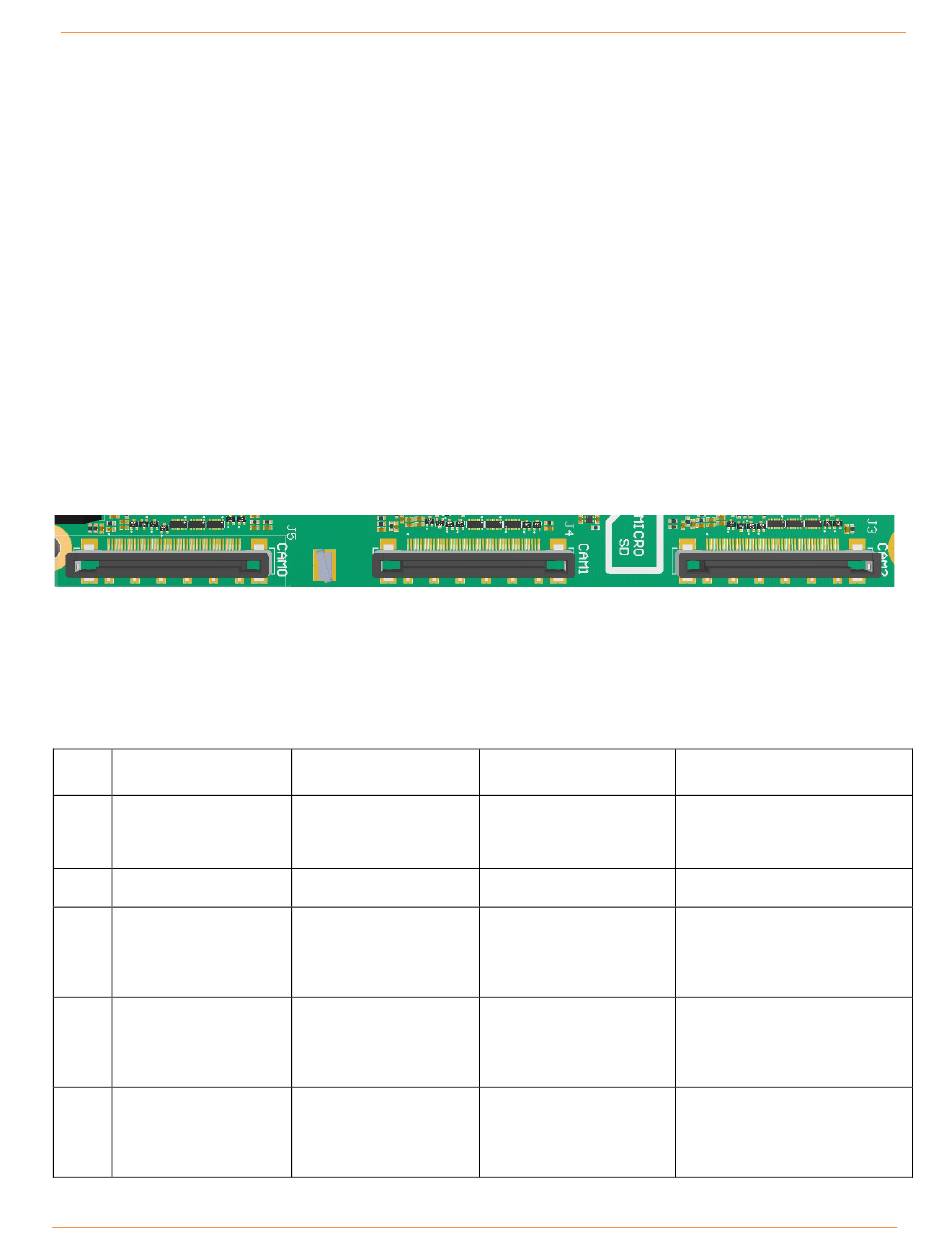

Figure 23 above shows the three MIPI CAM0 (J5), CAM1 (J4) and CAM2 (J3) connectors. Table 3.8.21-1
below outlines the pin outs of these connectors

Table 3.8.21-1. MIPI CSI Camera Connector Pin outs (J5,J4,J3)

Pin# CAM0(J5)
1,2,3 MB_VREG_3P3
4 GND
5 VREG_L17A_2P8
6 MB_ELDO_CAM0_DVDD
7,8 VREG_L23A_2P8
Open-Q™ 820 Dev Kit User Guide

Figure 23 Camera Connectors (J5,J4,J3)

CAM1(J4)
MB_VREG_3P3
GND
VREG_L18A_2P8
MB_ELDO_CAM1_DVDD
MB_ELDO_CAM1_VCM
CAM2(J3)
MB_VREG_3P3
GND
VREG_L29A_2P8
MB_ELDO_CAM2_DVDD
VREG_L23A_2P8
Open-Q™ 820 Development Kit
Description
Power output. Connected to main
+3.3V MB_VREG_3P3 max current
700mA
Ground
Power output. Connected to
various PM8996 LDO regulators.
Default is +2.8V. Maximum current
300mA
Power output. Connected to U5,
U6, and U71 AMS LDO regulator.
Default is +1.2V. Maximum current
500mA
Power output. Connected to
PM8996 VREG_L23A regulator or
on board LDO regulator. Default is
+2.8V. Maximum current 300mA
43
