Programmable Configuration Data

A.1

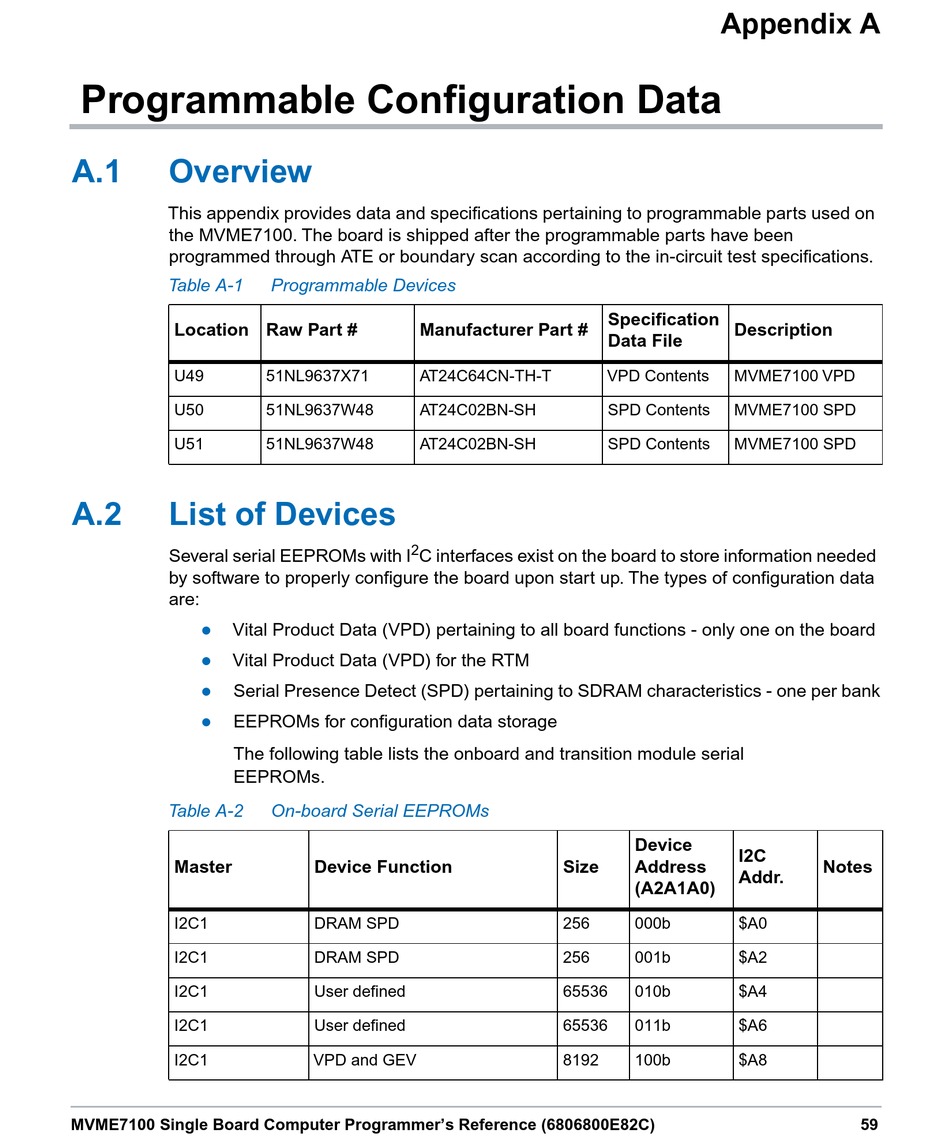

Overview

This appendix provides data and specifications pertaining to programmable parts used on
the MVME7100. The board is shipped after the programmable parts have been
programmed through ATE or boundary scan according to the in-circuit test specifications.
Table A-1
Location Raw Part #
U49
U50
U51
A.2

List of Devices

Several serial EEPROMs with I
by software to properly configure the board upon start up. The types of configuration data
are:
 Vital Product Data (VPD) pertaining to all board functions - only one on the board
 Vital Product Data (VPD) for the RTM
 Serial Presence Detect (SPD) pertaining to SDRAM characteristics - one per bank
 EEPROMs for configuration data storage
The following table lists the onboard and transition module serial
EEPROMs.
Table A-2
Master
I2C1
I2C1
I2C1
I2C1
I2C1
