scanCONTROL Output Unit
7.4.3

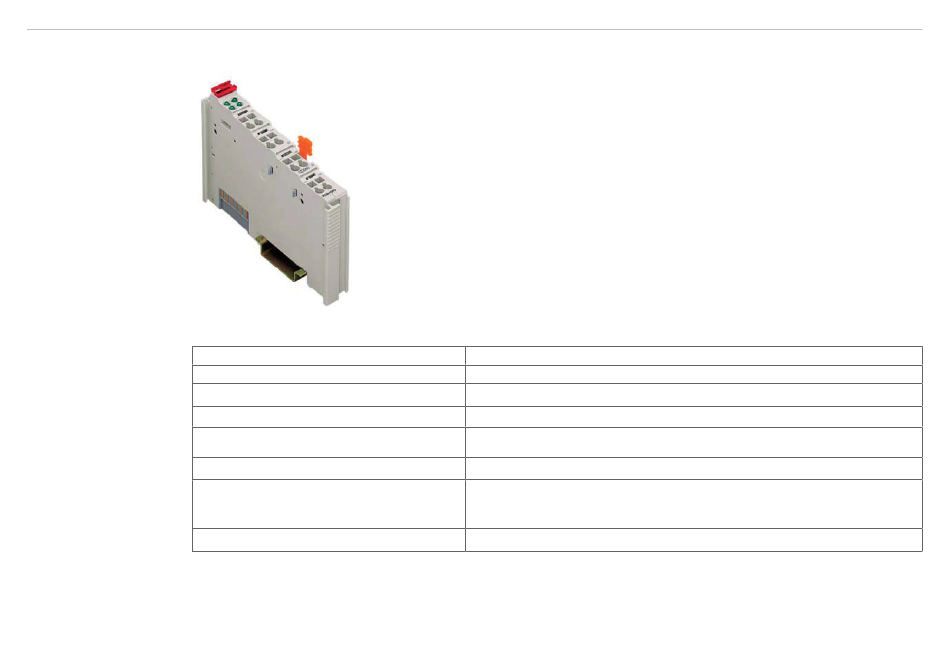

Fig. 32 8-Channel DigitalOut-Module
Number of outputs
Current consumption (internal)
Voltage via power jumper contacts
Type of load
Switching rate
Output current
Absorbable energy dissipation W
(unique switching off)
Current consumption typ. (field side)
Fig. 33 Technical data of the digital output module
scanCONTROL 29xx

OU-DigitalOut/8-Channel/DC24 V/0.5 A/High-side Switching/8 Actuators

- Micro-Epsilon art. no. 0325115
- The 8-Channel digital output terminal DC 24V 0.5 A is short-circuit-
proof, high-side switching, for TS35, CAGE CLAMP® connections,
8 actuators.
- The field level is galvanically isolated from the system level.
- The indicators (Status LED's) additionally show the status of the
digital outputs (IO/NIO),
for detailed description refer to manual of the 8-Channel digital out-
put modules DC 24 V 0.5A, 8 actuators, high-side switching
- Actuators can be operated at all digital outputs and be wired di-
rectly via DO 1/2/3/4/5/6/7/8.
- scanCONTROL 2910/2960 supports eight digital outputs.
max.
max.
8
25 mA
DC 24 V (-25 % / +30 %)
resistive, inductive, lamp load
2 kHz
0.5 A short-circuit proof
0.9 J
L = 2 W /I²
max. max.
15 mA (per module) + load
