Mounting and Installation
Recommended
attachment point
MR = Measuring range
SMR = Start of measuring range
MMR =Mid of measuring range
EMR = End of measuring range

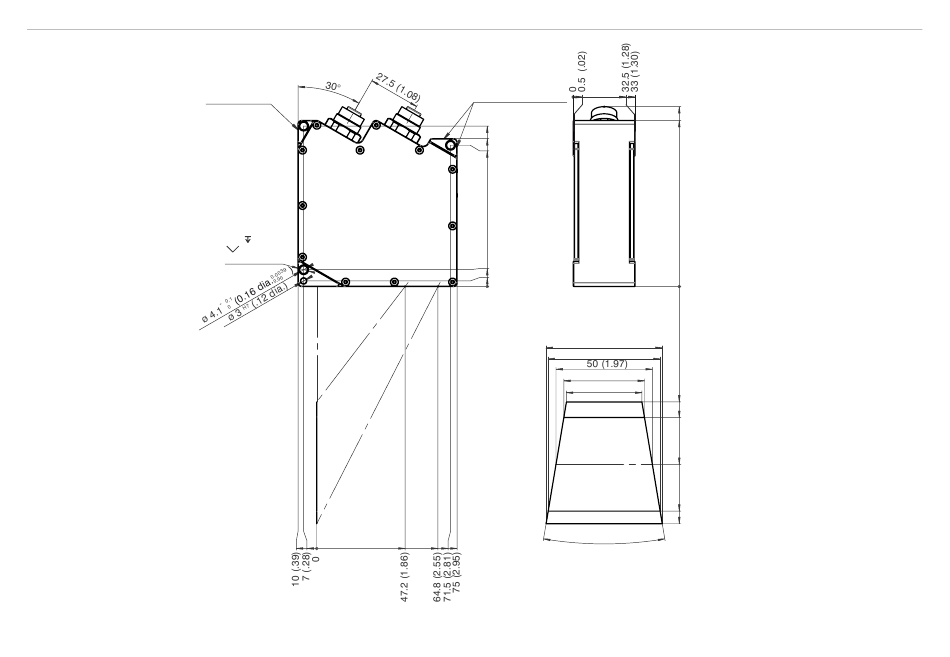

Fig. 13 Dimensional drawing scanCONTROL 29xx-50 sensor, dimensions in mm (inches), not to scale
scanCONTROL 29xx
M5 10 (.39)
ø 5.2 x 90°
(on both sides)
Recommended
attachment point
85.75 (3.38)
79 (3.11)
75.5 (2.97)
9 (.35)
3 (.12)
0
60 (2.36)
58 (2.28)
42 (1.65)
40 (1.57)
(~19°)
96 (3.78)
89 (3.50)
0
MR extended ≥ 65 (2.56)
70 (2.76) SMR
95 (3.74) MMR
120 (4.72) EMR
MR extended ≤ 125 (4.92)
