MICRO-EPSILON scanCONTROL 29 Series Operating Instructions Manual page 27

Mounting and Installation
Recommended
attachment point
SMR = Start of measuring range
EMR = End of measuring range

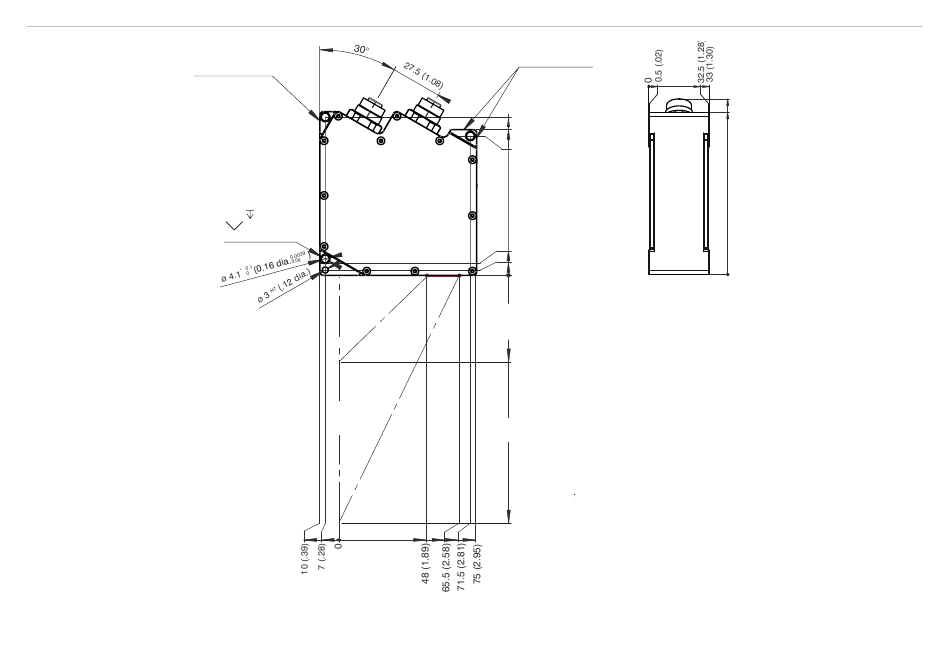

Fig. 14 Dimensional drawing scanCONTROL 29xx-100 sensor, dimensions in mm (inches), not to scale
scanCONTROL 29xx
10 (.39)
M5
ø 5.2 (o.2) x 90°
(on both sides)
Recommended
attachment point
85.75 (3.38)
79 (3.11)
75.5 (2.97)
9 (.35)
3 (.12)
0
190 (7.48) SMR
290 (11.42) EMR
96 (3.78)
89 (3.50)
0
Page 27
