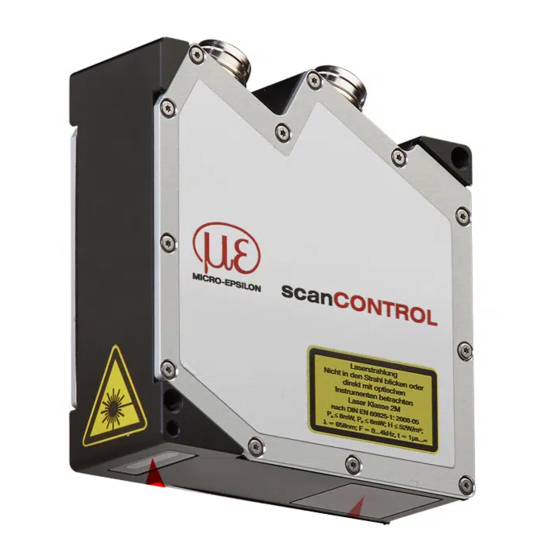

MICRO-EPSILON scanCONTROL 2500 Assembly Instructions Manual

MICRO-EPSILON scanCONTROL 2500 Assembly Instructions Manual

Hide thumbs Also See for scanCONTROL 2500:

Advertisement

Quick Links

1.
Warnings
Avoid unnecessary laser radiation to be exposed to the human body.
Connect the power supply and the display-/output device according to the safety
regulations for electrical equipment. The power supply must not exceed the specified
limits.
> Risk of injury, damage to or destruction of the sensor
Avoid shocks and impacts to the sensor. Avoid exposure of sensor to aggressive
materials (detergents, cooling emulsions).
> Damage to or destruction of the sensor
Avoid constant exposure of the sensor to dust or splashes of water by appropriate
methods such as blowing or using a protective housing.
> Damage to or destruction of the sensor
Read the detailed instruction manual before operating the sensor. You will find this
manual online at www.micro-epsilon.com.
2.
Notes on CE Identification
The following applies to the scanCONTROL 25xx:
- EU Directive 2014/30/EU
- EU Directive 2011/65/EU, "RoHS" category 9
The sensor is designed for use in industry and satisfies the requirements. The sensor
fulfills the specifications of the EMC requirements, if the instructions in the manual are
followed.
3.
Proper Environment
- Protection class:
- Operating temperature:
- Storage temperature:
- Humidity:
4.
Scope of Delivery of scanCONTROL 25xx
- 1 Sensor scanCONTROL 25xx with integrated controller
- 1 Multifunction cable PCR3000-5, length 5 m; for power supply, trigger and RS422;
M12x1 screw connector and free cable ends
- Calibration final inspection / assembly instructions / 2 protective caps
Assembly Instructions
scanCONTROL
IP 65
0 to +45 °C (+32 to +113 °F), by free circulation of air
-20 to +70 °C ( -4 to +158 °F)
5 - 95 % (non condensing)
2500 / 2510

Advertisement

loading
Need help?

Need help?

Do you have a question about the scanCONTROL 2500 and is the answer not in the manual?

Questions and answers

Summary of Contents for MICRO-EPSILON scanCONTROL 2500

  • Page 1 > Damage to or destruction of the sensor Read the detailed instruction manual before operating the sensor. You will find this manual online at www.micro-epsilon.com. Notes on CE Identification The following applies to the scanCONTROL 25xx: - EU Directive 2014/30/EU - EU Directive 2011/65/EU, “RoHS“...
  • Page 2: Laser Safety

    Laser Safety The scanCONTROL 25xx sensors operate with a semiconductor laser having a wave- length of 658 nm (visible/red). The laser operation is indicated visually by the LED on the sensor. When operating the scanCONTROL 25xx sensors, the relevant regulations according to IEC 60825, Part 1 of 05/2014 and the applicable accident prevention regulations must be followed.
  • Page 3: Multifunction Port

    Connections, LED Displays 1 Ethernet socket 2 Multifunction socket (Power supply, IO) Multifunction Port Designation Sensor con- Cable color Notes nector Pin PCR3000-x + 11 V - 30 V DC (rated value 24 V); max. 500 mA blue +Laser on/off white available with SI option -Laser on/off...
  • Page 4 RS422, Synchronization The RS422 connection (Pin 11 and 12 of the multifunction port) can be used with either of the following configurations: - RS422 (half-duplex): Load user modes, sensor control and transmit measurement results (Modbus RTU or ASCII-Format). - Synchronization/triggering: Synchronization respectively triggering using switching signals.
  • Page 5 > Damage of the sensor and/or the Ethernet card! - A fixed IP address can be assigned. sensorFINDER Use the program to make the above-described sensor settings. The program is available online on www.micro-epsilon.com/download/ software/SensorFinder.zip.
  • Page 6: Led State

    LED Displays laser on Meaning Green Laser is on state Meaning Green Measurement is active laser on Green, flashes long Data transmission is active state Green, flashes short Controller accesses Red, flashes Error code System Requirements scanCONTROL Configuration Tools The following minimum system specification is necessary: - Windows 7 (32 bit and 64 bit), Windows 10 (32 bit and 64 bit) - 800-MHz or faster (32 bit and 64 bit) processor / 512 MB RAM - Screen resolution: 1024 x 768...
  • Page 7 Mount the sensor according to the installation instructions. Install the software. You will find the software online on the product website of the sensor or in the download area: https://www. micro-epsilon.com/2D_3D/laser-scan- ner/Software/downloads/ Follow the dialog through the installa- tion process. A. Reading of installation help B.
  • Page 8 First Profile Display Now start the scanCONTROL Configuration Tools software. Click on Profiles in the main window. No scanCONTROL found If the software shows the error message in the status line, please check the Ethernet connection between scanCONTROL and PC. On the left side you can adjust the settings for your measurement task, the right side shows the profile data and information about the measurement.
  • Page 9 scanCONTROL Gateway scanCONTROL Gateway allows for scanCONTROL SMART sensors to be integrated into various fieldbus systems: - Profinet - Ethernet IP - EtherCat All measurement results obtained from the profile evaluation carried out of a scanCONTROL SMART sensor can be transmitted to a PLC via one of these fieldbus systems.
  • Page 10 scanCONTROL 2510 with scanCONTROL Output Unit for Con Status voltage supply 13 14 - Power jumper contacts LINK ETHERNET ACT 1 - System LINK Data contacts Ñ System supply (OUT) 0: WBM 255: DHCP 24 V Supply via power jumper contacts System supply (In) 24 V 750-626...
  • Page 11 nnection to an SPS Status Status 13 14 13 14 DO 1 DO 2 Function Error DO 8 DO 7 Data A1 A2 A1 A2 Data contacts contacts DO 2 DO 1 AO 1 AO 2 A3 A4 D0 4 DO 3 A3 A4 A5 A6...
  • Page 12: Further Information

    You will find details to the separate programs in the respective instruction manuals or in the instruction manual of this sensor, Chap. 6.2. You will find the instruction manuals online on www.micro-epsilon.com www.micro-epsilon.com MICRO-EPSILON Messtechnik GmbH & Co. KG Königbacher Str. 15 94496 Ortenburg / Germany, Tel. +49 (0) 85 42/1 68-0 *X9771413-A01*...
