Connections; General - MICRO-EPSILON scanCONTROL 29 Series Operating Instructions Manual

Mounting and Installation
5.2
5.2.1
Fig. 16 Output sockets arrangement
Designation
+Ub
GND
+Laser on/off 3
-Laser on/off
RS422
/RS422
In1
GND-In1
In2
GND-In2
In3
GND-In3
Shield

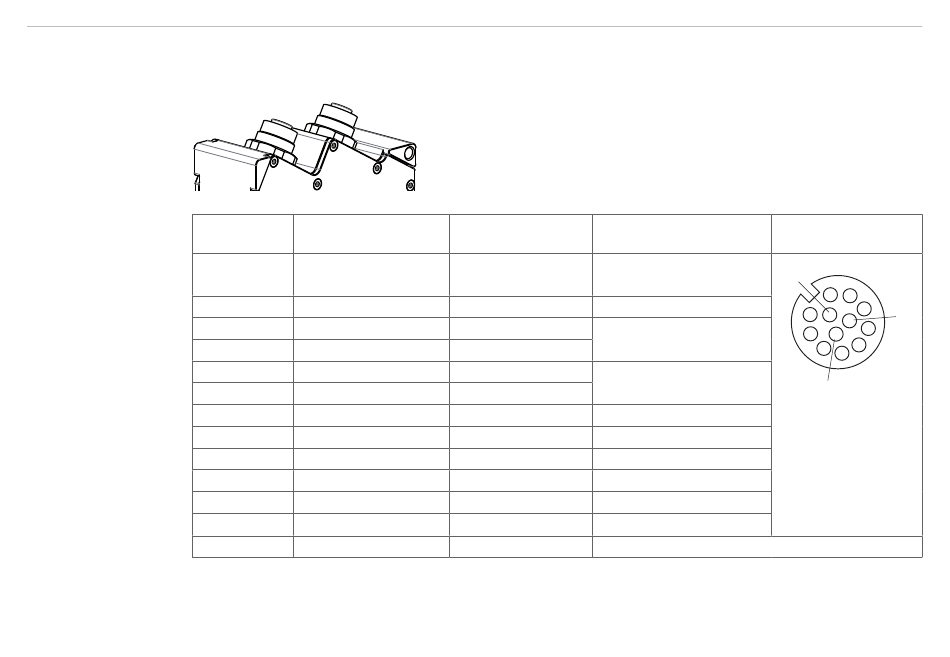

Fig. 17 Assignment of the multifunction socket on scanCONTROL 29xx
GND: Galvanically isolated from IN1, 2, 3, RS422, Laser on/off
Laser on/off: Input galvanically isolated from GND, IN1...3, RS422
IN1, IN2, IN3, RS422: Inputs galvanically isolated from GND and Laser on/off
scanCONTROL 29xx

Connections

General

1 2
1 Ethernet socket
2 Multifunction socket (Power supply, IO)
Sensor connector
Pin
9
2
1
12
11
6
4
5
8
10
7
Housing
Cable color Notes
PCR3000-x
Red + 11 V - 30 V DC (rated
value 24 V); max. 500 mA
Blue 0 V
White
Optional
Brown
Red-blue
RS422
input or output
Gray-pink
Yellow Switching input In1
Green Ground connection In1
Pink Switching input In2
Gray Ground connection In2
Purple Switching input In3
Black Ground connection In3
Black DC-insulated from GND
Connection view
2
3
10
4
1
11
5
9
6
8
7
12
Screw connector,
solder pin side
