scanCONTROL Output Unit

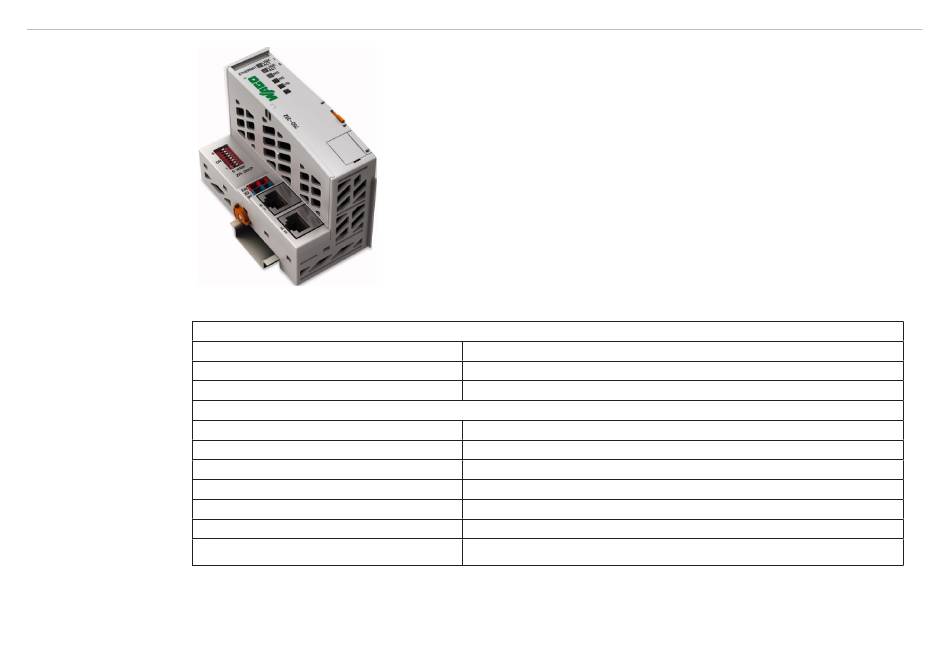

Fig. 30 OU-Fieldbus Coupler/Ethernet with system supply terminal
System data
Max. number of bus participants
Max. length of segment
Transmission rate
Technical Data
Number of bus terminals
With bus extension
Power supply
Max. input current
Internal current consumption
Total current for bus terminals
Voltage drop at I
Fig. 31 Technical data Fieldbus Coupler/Ethernet
scanCONTROL 29xx
- Ports: 2x Ethernet to connect
scanCONTROL 2910/2960 sensors.
- Indicators (Status LED's, for detailed description refer to the manual
of the OU-Fieldbus Coupler/Ethernet)
- The system supply is already mounted to the Fieldbus Coupler.
Limited by Ethernet specification
100 m
10/100 Mbit/s
64
250
DC 24 V (-25 % ... +30 %)
280 mA at 24 V
450 mA at 5 V
700 mA at 5 V
< 1 V at 64 I/O bus terminals
max.
