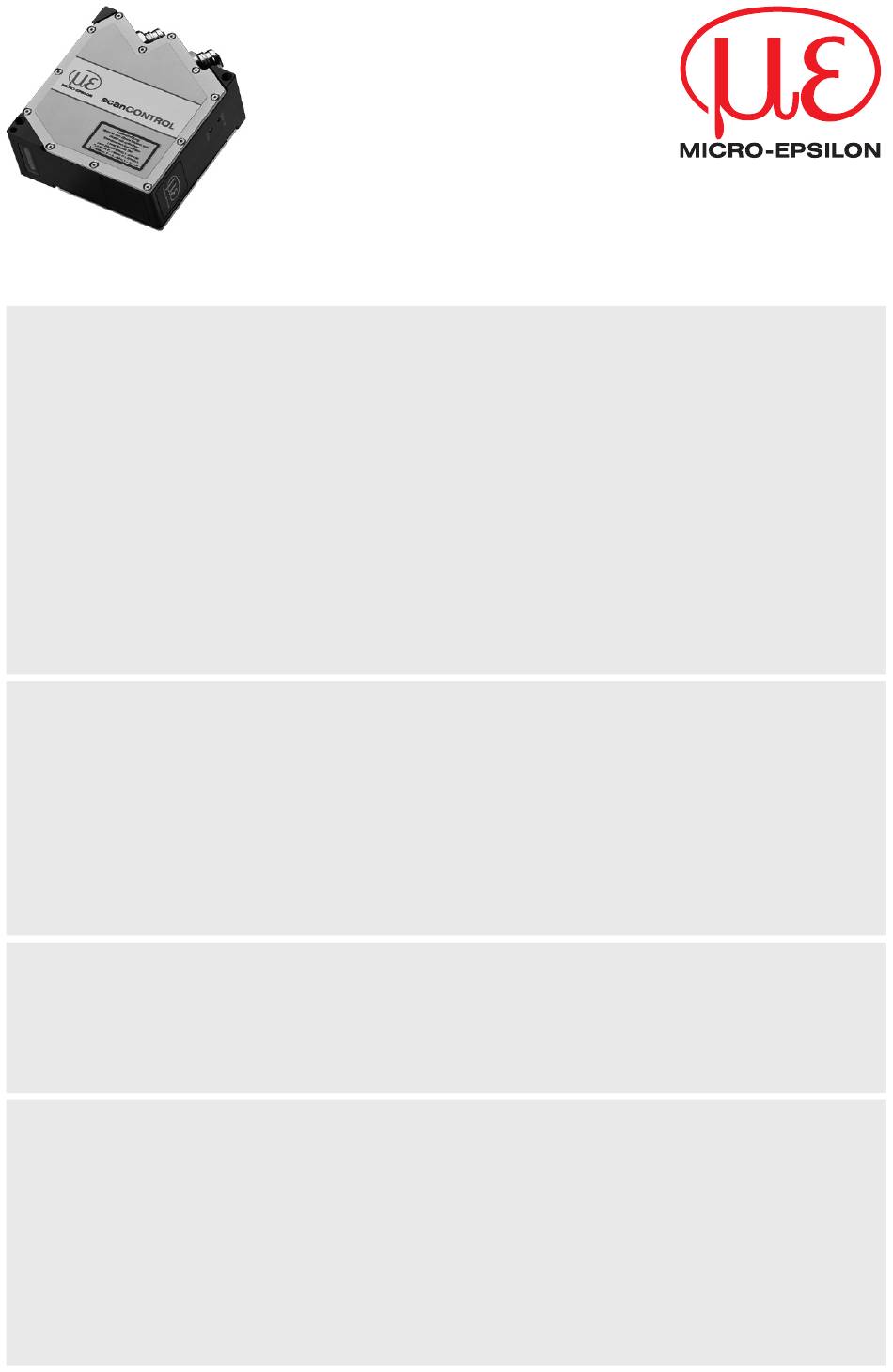

MICRO-EPSILON scanCONTROL 2610 Assembly Instructions Manual

Advertisement

Quick Links

1.

Warnings

Connect the power supply and the display-/output device in accordance with the
safety regulations for electrical equipment. The power supply must not exceed the
specified limits.
> Danger of injury, damage or destruction of the sensor
Avoid shock and vibration to the sensor. Avoid continuous exposure to dust and spray
on the sensor. Avoid exposure to aggressive materials (e. g. washing agent, penetrat-
ing liquids or similar) on the sensor.
> Damage to or destruction of the sensor
Read the detailed instruction manual before operating the sensor. You will find this
manual on the provided CD or online at www.micro-epsilon.com.
2.

Notes on CE Identification

The following applies to the scanCONTROL 26xx/29xx:
- EU directive 2014/30/EU
- EU directive 2011/65/EU, „RoHS" category 9
The sensor is designed for use in industry and satisfies the requirements.
The sensor fulfills the specifications of the EMC requirements, if the instructions in the
manual are followed.
3.

Proper Environment

- Protection class:
- Operating temperature: 0 to +45 °C (+32 to +113 °F), by free circulation of air
- Storage temperature:
- Humidity:
4.

Scope of Delivery of scanCONTROL 26xx/29xx

- 1 Sensor scanCONTROL 26xx/29xx with integrated controller
- 1 Multifunction cable PC2600/2900-5, length 5 m; for power supply, trigger and
RS422; Escha screw connector and free cable ends
- Sensor acceptance report / assembly instructions
- 2 protective caps
- CD scanCONTROL Configuration Tools with drivers and documentation
Assembly Instructions
scanCONTROL
IP 65
-20 to +70 °C ( -4 to +158 °F)
5 - 95 % (non condensing)
2610/2660/2910/2960

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the scanCONTROL 2610 and is the answer not in the manual?

Questions and answers

Summary of Contents for MICRO-EPSILON scanCONTROL 2610

  • Page 1 > Damage to or destruction of the sensor Read the detailed instruction manual before operating the sensor. You will find this manual on the provided CD or online at www.micro-epsilon.com. Notes on CE Identification The following applies to the scanCONTROL 26xx/29xx: - EU directive 2014/30/EU - EU directive 2011/65/EU, „RoHS“...
  • Page 2 Laser Safety The scanCONTROL 26xx/29xx sensors operate with a semiconductor laser having a wavelength of 658 nm (visible/red). The laser operation is indicated visually by the LED on the sensor. Laser Class 2M scanCONTROL 26xx/29xx sensors with a maximum laser power up to 8 mW are clas- sified in Laser Class 2M (IIM).
  • Page 3 Connections, LED Displays 1 Ethernet port 2 Multifunction port (Power supply, IO) RS422, Synchronization The RS422 connection (Pin 11 and 12 of the multifunction port) can be used with either of the following configurations: - RS422 (half-duplex): Load user modes, sensor control and transmission of measurement results (Modbus RTU or ASCII format).
  • Page 4 Trigger, Encoder, Mode Switching The switching inputs of the multifunction port can either be used for encoder input, for trigger input or for loading previously stored user modes. The signal levels are switchable for all switching inputs between LLL (low-voltage-, TTL logic) and HLL (high-voltage-, HTL logic): - LLL level: Low 0 V …...
  • Page 5 LED Displays LED „laser on“ Green: Laser on Note: The “state“ LED “state“: Green: Measure- LED flashes green, ment Two-color LED long during active Green flashing: (red / green) data transmissi- Data transmission on and short for Red flashing: Error controller accesses.
  • Page 6 scanCONTROL 26xx/29xx with scanCONTROL Output Status voltage supply 13 14 - Power jumper contacts LINK ETHERNET ACT 1 - System LINK Data contacts Ñ System supply (OUT) 0: WBM 24 V 255: DHCP Supply via power jumper contacts System supply (In) 24 V 750-626...
  • Page 7 Unit for Connections to an SPS Status 13 14 Status 13 14 DO 2 DO 1 Function Error DO 8 DO 7 Data contacts A1 A2 A1 A2 Data contacts DO 2 DO 1 AO 1 AO 2 A3 A4 D0 4 DO 3 A5 A6...
  • Page 8 IP settings of the PC/sensor or a modification of the firewall settings, see Chap. 5.2.5 of instruction manual. www.micro-epsilon.com MICRO-EPSILON Messtechnik GmbH & Co. KG Königbacher Str. 15 94496 Ortenburg / Germany, Tel. +49 (0) 85 42/1 68-0 *X9771299.001-A01*...
