Mounting and Installation

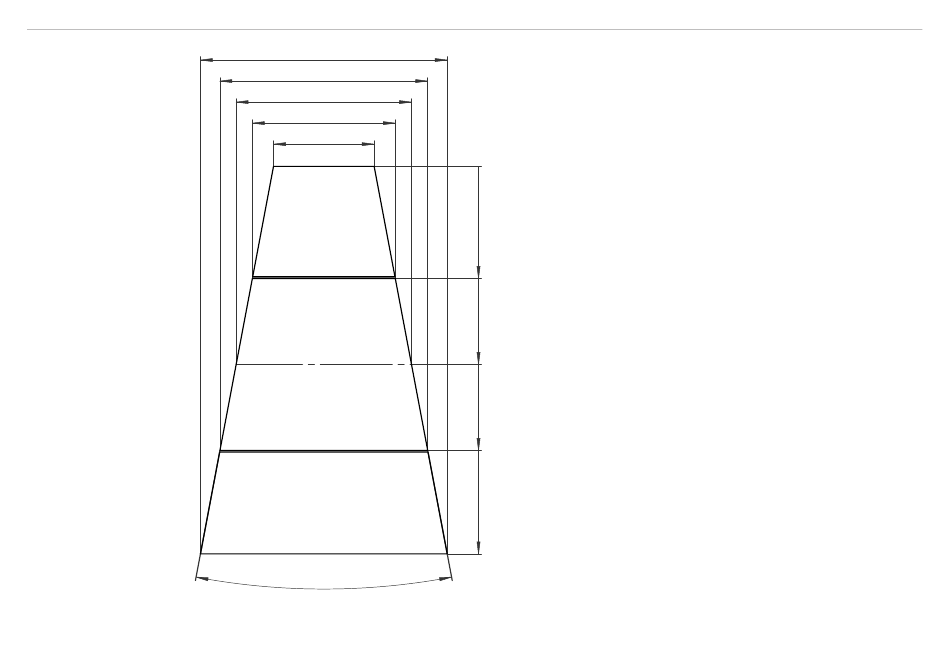

Fig. 15 Measuring field scanCONTROL 29xx-100 sensor, dimensions in mm (inches), not to scale
scanCONTROL 29xx
143.5 (5.65)
120.8 (4.76)
100 (3.94)
83.1 (3.27)
58.5 (2.30)
(21.4 °)
MR extended ≥ 125 (4.92)
190 (7.48) SMR
240 (9.45) MMR
290 (11.42) EMR
MR extended ≤ 390 (15.35)
MR = Measuring range
SMR = Start of measuring range
MMR =Mid of measuring range
EMR = End of measuring range
