3.10 C-Tong accessories: electrode yokes

49023, EN - rev. 4, 2020-01
In addition to the standard 80 mm yoke, there are three different
electrode yokes available for the CTR9:
1. 40 mm throat depth, water cooled
2. 350 mm throat depth, water cooled
3. 500 mm throat depth, water cooled

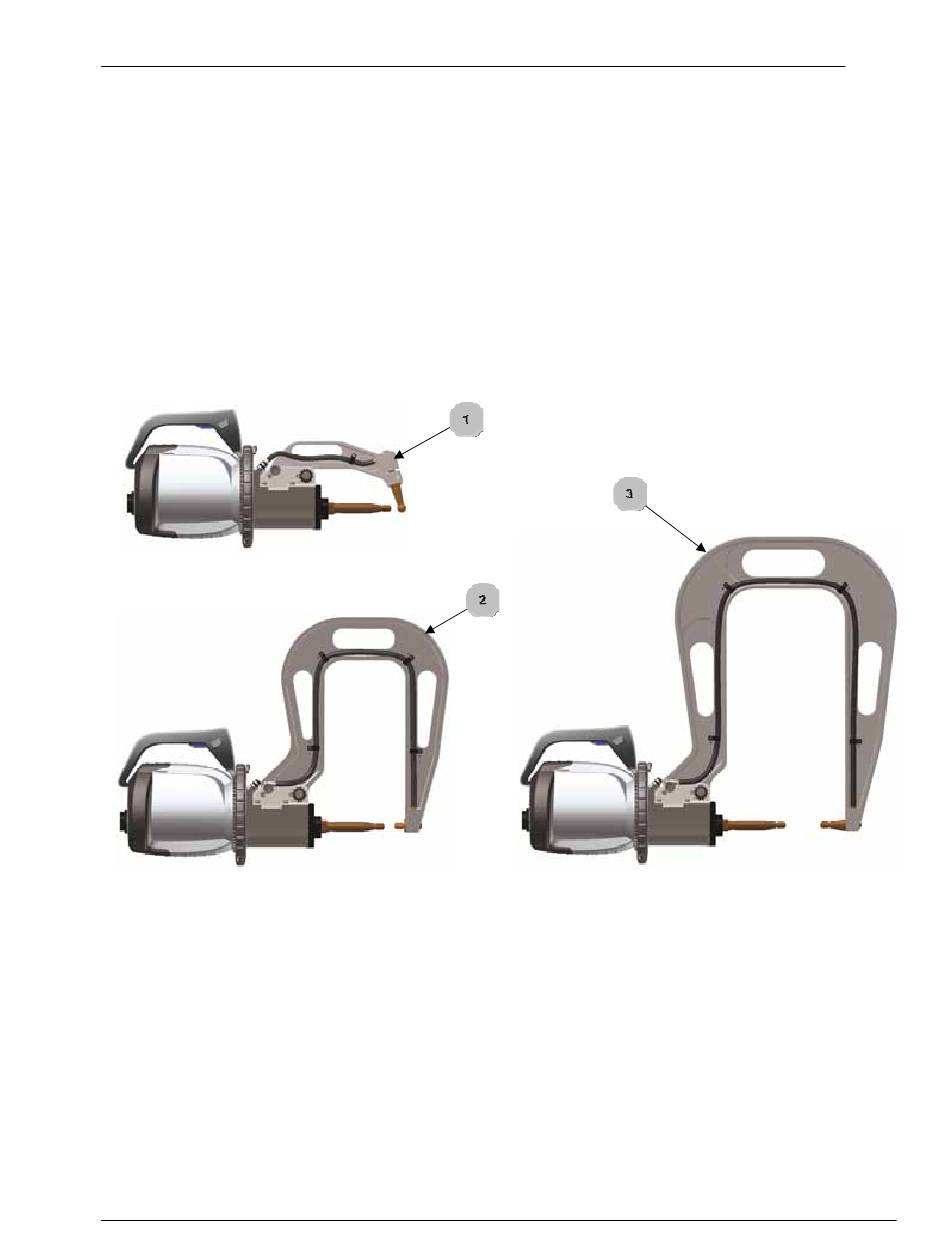

Figure 3.3 C-Tong accessories, electrode yokes
For instructions how to change yokes, electrodes and caps,
see section 4.5 Preparing the C-Tong for welding operation.
