5.3.

Preparing for operation

In STBY the amplifier is in bypass-mode and your transceiver is directly connected to the antenna.
Maximum allowed power in bypass mode is 200 Watts! Passing RF power is displayed if PA is in
standby mode.
To turn PA ON press ON/OFF button on the front panel (black one) and hold it abt. 1 second. PA will start tube
heating. It will take 180 seconds. Turning PA ON is possible ONLY from the home screen! If you have other display
active, press EXIT more times to go back to the home screen.

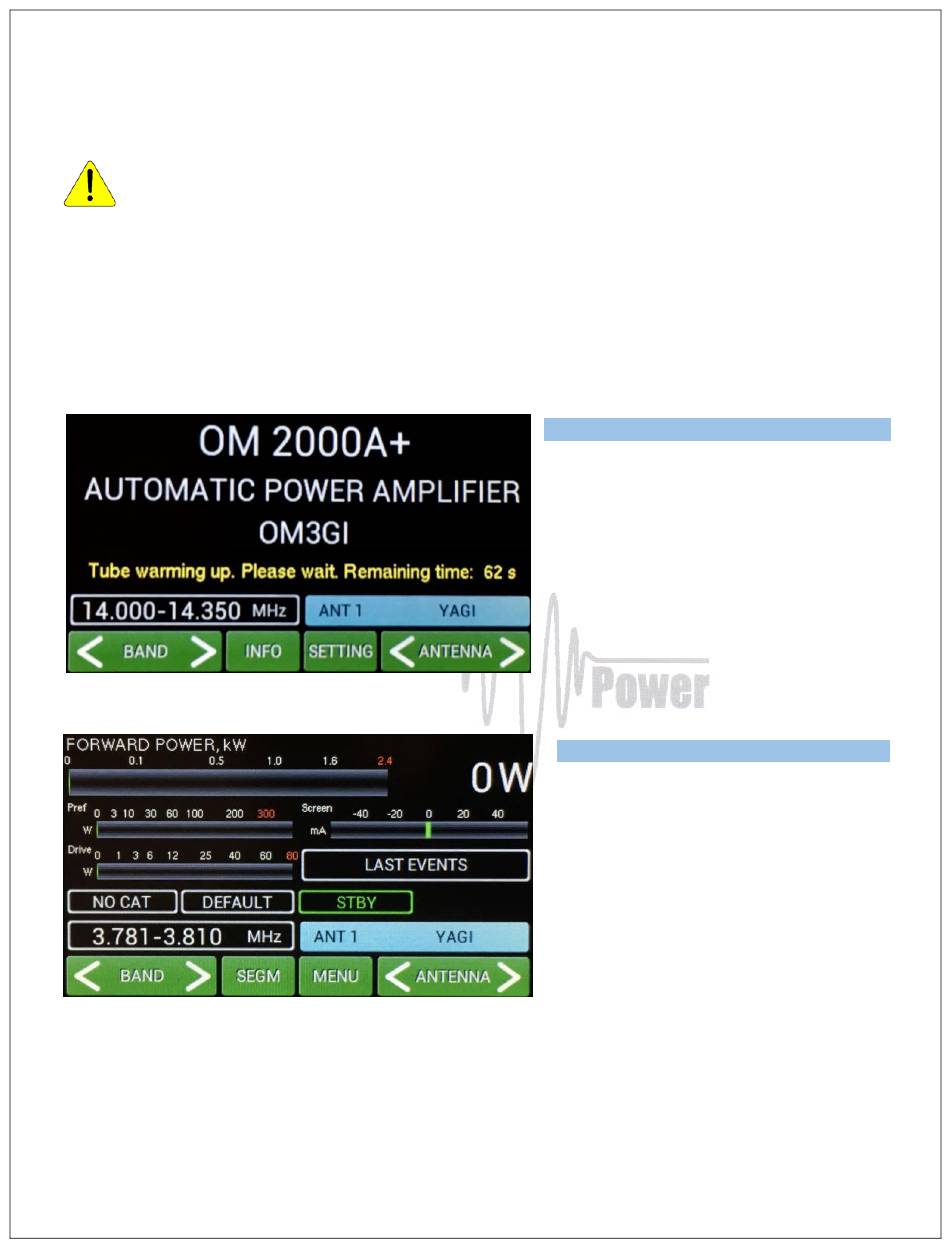

Depending on CAT settings you would have two possible situation illustrated. If NO CAT was saved, above display
will be visible. To set band and segment for transmitting, use BAND and SEGMENT buttons. In this mode exact
frequency will be read from RF input and PA will set up on it automatically.
Time to go is visible on the display. Wait
Type of supported TCVR and working
heating finish.
frequency are visible on the display.
After heating finished PA will stay in STBY mode
Type of supported TCVR and working
and Main display will appear.
frequency are visible on the display.
until
AUTO LED is ON.
AUTO LED is ON.
21
