Grounding

The amplifier has to be grounded properly! Connect the screw on the rear panel of the amplifier to
your local grounding system with a copper cable; use a cross-section of 4 mm
Connect your transceiver to the same grounding system of your shack carefully! Use minimum length cables and
make certain that the connections are both physically and electrically sound. With poor grounding, you may risk
damaging your equipment, having problems with TVI/BCI or your transmitted signal may be distorted.
4.2.

Coaxial Cable

The output of the transceiver is to be connected to the input of the amplifier via RG58 or similar cable. For the
connection between the power amplifier and the antenna, RG213 or similar coaxial cable suited for high power
is recommended. At the INPUT and OUTPUT SO-239 sockets with Teflon insulation are used.

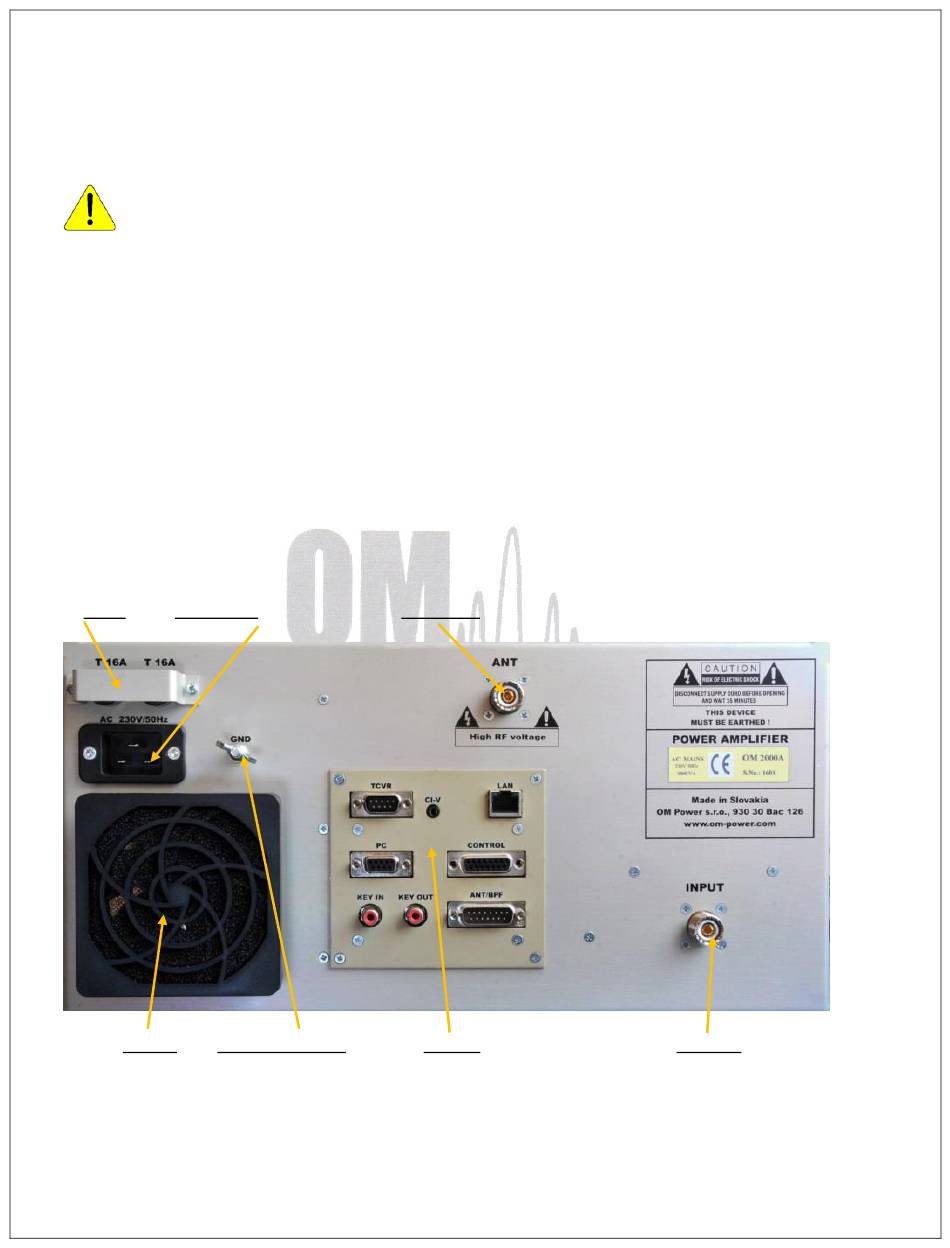

Rier view of the amplifier OM2000A+
Fuses Mains Plug
Blower Grounding point
HF Output
Control
2
at least.
HF Input
10
