OM POWER OM2000A+ Manual page 38

Flex Radio 6xxx series connection using USB output
Connect USB from Flexradio directly to TCVR port on OM2000A+ using USB – serial port adapter and
a
null modem serial cable (both ends of the cable with a female DB-9 connectors (pins 2 and 3 are crossed).

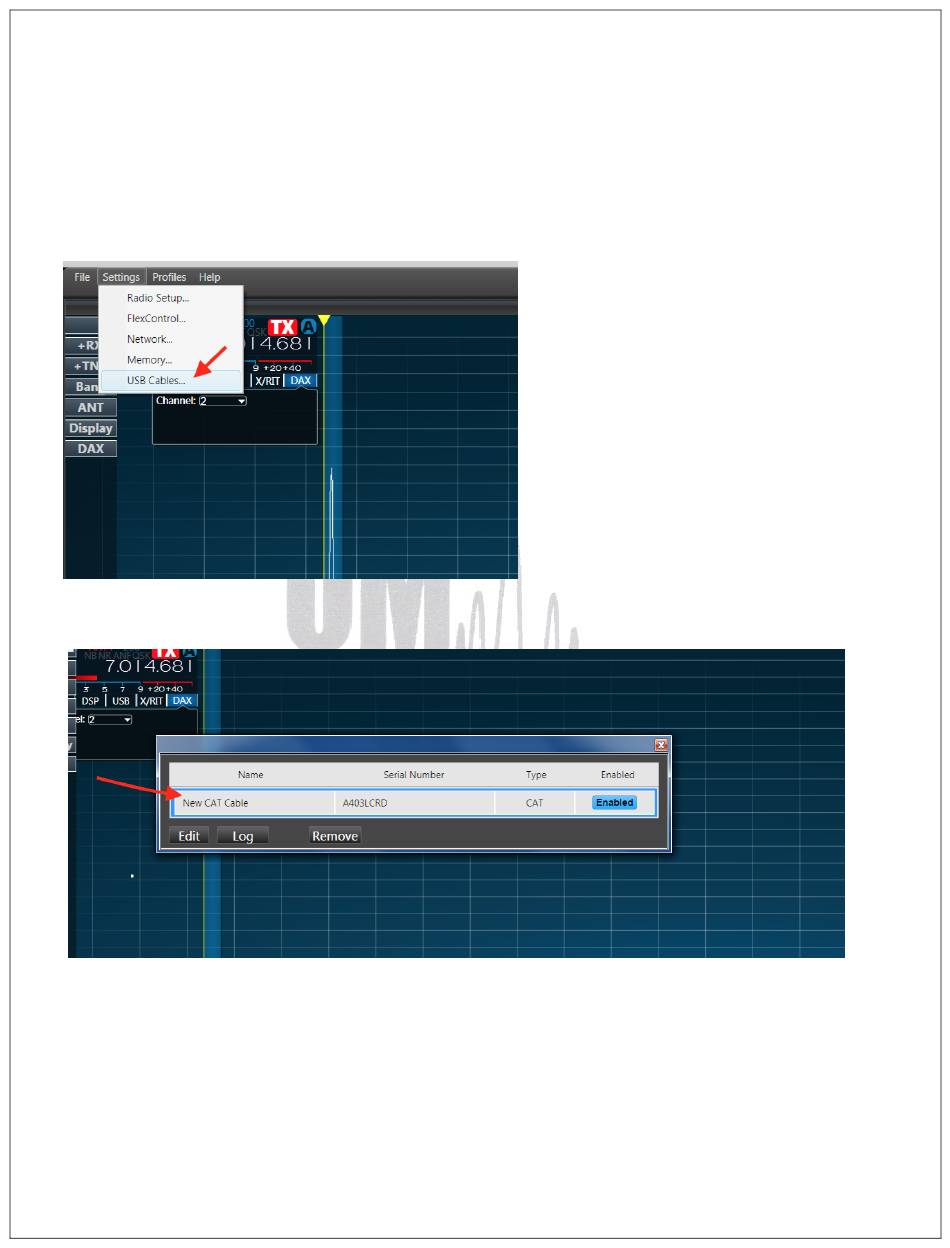

Activate the smartSDR and choose Settings / USB Cables
(USB adapter to serial connect to USB port of Flexradio). Line with connected USB adapter will appear.
Make double click on the line (with connected USB adapter after that appears possibility) to open configuration
window for COM port .
Set all parameters in the table according the picture below. In both windows ENABLED must be selected.
