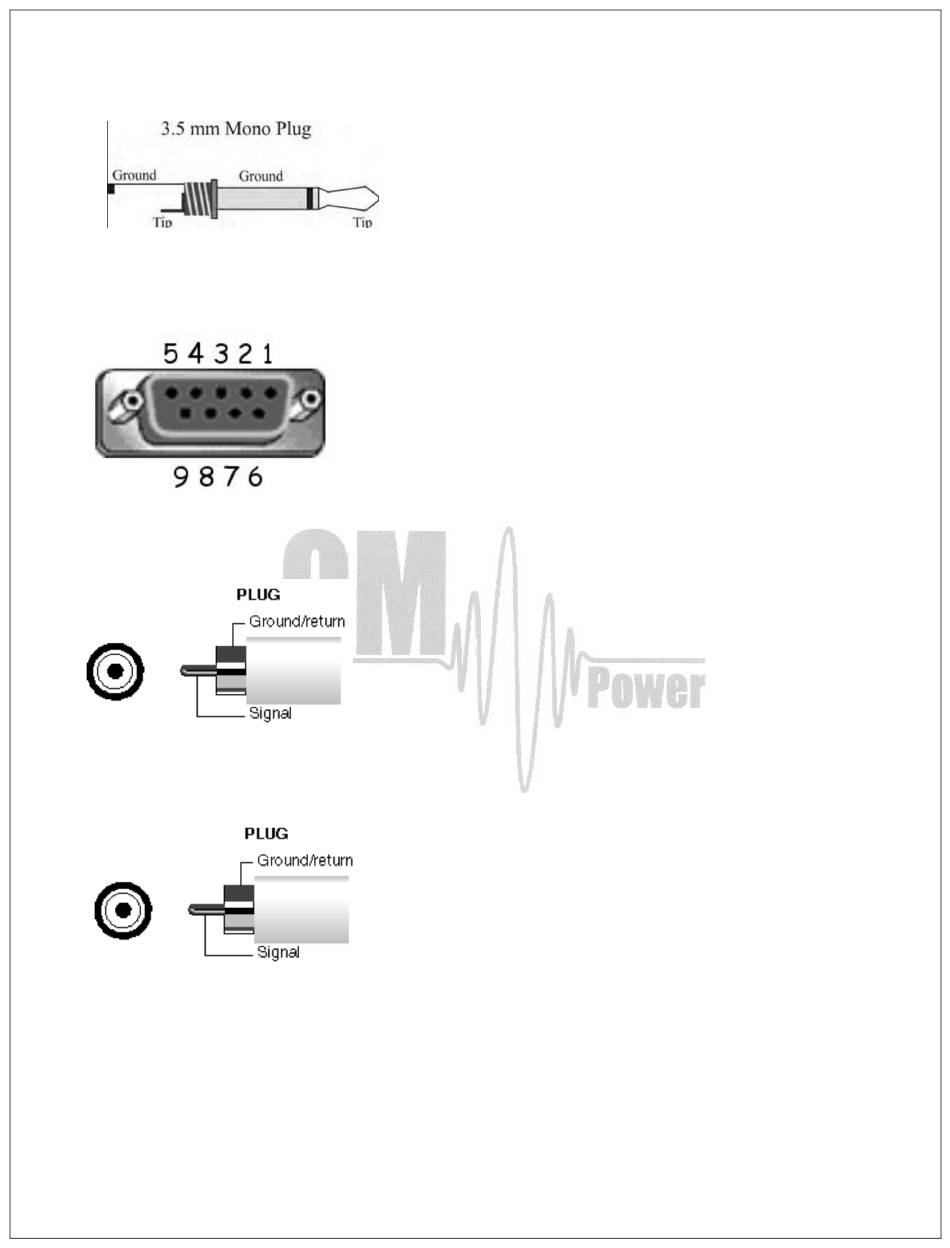

CI-V connector

PC connector DB 9 female

KEY IN – RCA connector

KEY OUT – RCA connector

Use CI-V connection for communication with ICOM type

transceiver. Signal CI-V is connected to the Tip.

RS232 connection to the computer. For CAT communication you need

connect pin 2 TX-D, pin 3 RX-D and pin 5 GROUND

Input signal PTT switching voltage / current 5V /2mA)

Output signal PTT (maximum switching of 30V / 50mA)
