EVAL-ADFS5758SDZ

SOFTWARE QUICK START PROCEDURES

INSTALLING THE ACE SOFTWARE AND
PLUGINS
The EVAL-ADFS5758SDZ software uses the Analog Devices, Inc.,
ACE software. For instructions on the use of the
see the www.analog.com/ACE
When the installation completes, the EVAL-ADFS5758SDZ
evaluation board plugin window appears when the
software opens (see Figure 2).

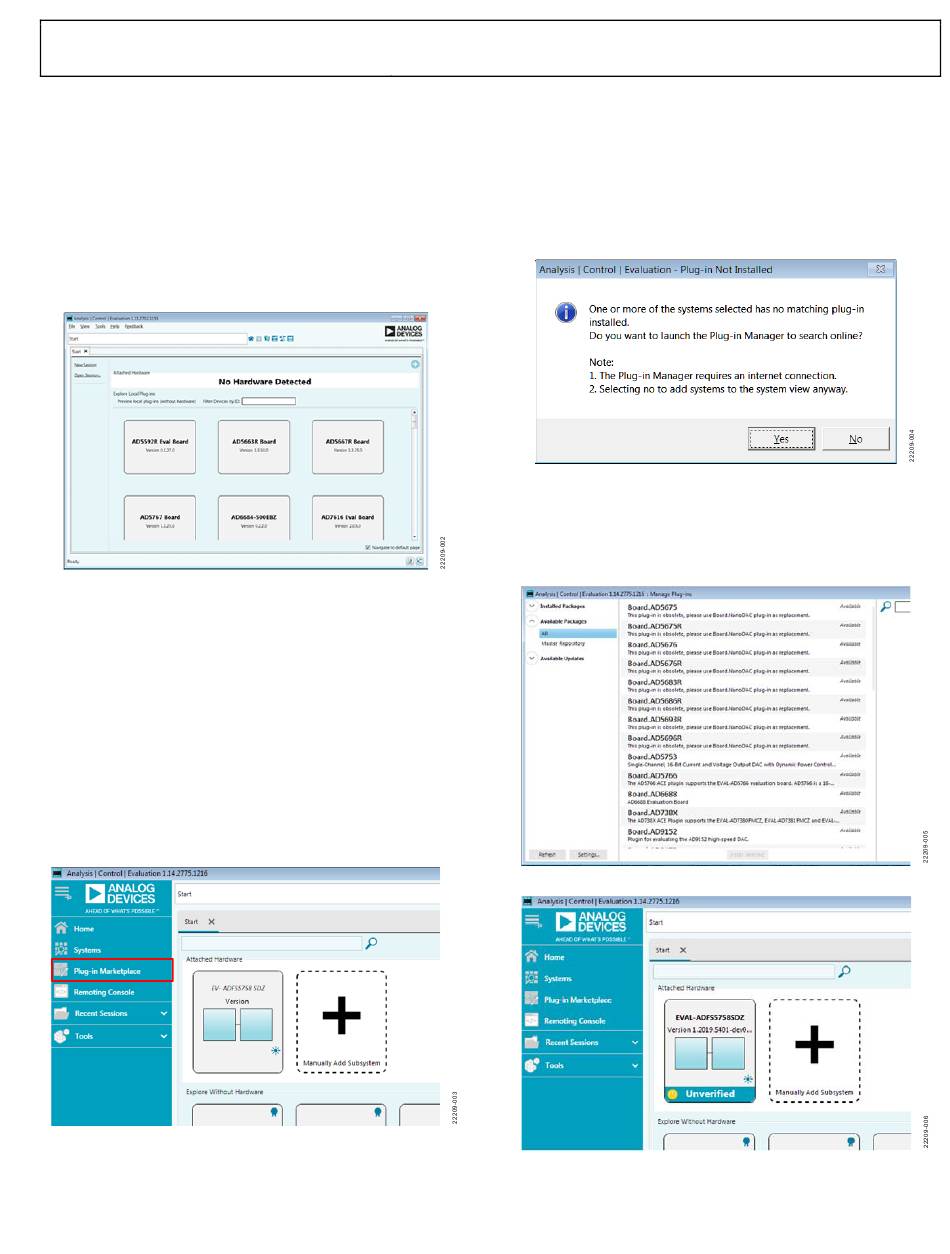

Figure 2. EVAL-ADFS5758SDZ Evaluation Board Plugin Window After
Opening the

INITIAL SETUP

To set up the EVAL-ADFS5758SDZ, take the following steps:
1. Connect a USB cable to the PC and then to the
board.
2. Connect the SDP-S board to the EVAL-ADFS5758SDZ.
The PC recognizes the EVAL-ADFS5758SDZ.
3. Power up the EVAL-ADFS5758SDZ with the relevant
power supplies.
4. If not opened already, open the
EVAL-ADFS5758SDZ appears in the Attached Hardware
pane.
Figure 3. EVAL-ADFS5758SDZ Plugin Not Installed
User Guide
ADFS5758
ACE software,
product page.
ACE
ACE Software
SDP-S
ACE software. The
5. When setting up the evaluation board for the first time, the
EVAL-ADFS5758SDZ plugin may need to be installed. If
the plugin appears as shown in Figure 6, go to Step 7. If the
plugin appears as shown in Figure 3, click the button that is
marked in red in Figure 3. After clicking this button, the
popup window shown in Figure 4 appears. Click Yes.
Figure 4. Installing Plugin Popup Window
6. A new window appears, as shown in Figure 5. Navigate to
the Board.ADFS5758 plugin and click Install Selected. The
EVAL-ADFS5758SDZ plugin installs and displays, as
shown in Figure 6.
Figure 6. Attached Hardware Pane with EVAL-ADFS5758SDZ Connection
Rev. 0 | Page 5 of 20
Figure 5. Manage Plug-ins Window
UG-1688
