UG-1688

SETTING THE DAC OUTPUT

To configure the DAC output, use the DAC Config Register
popup menu (see Figure 11). Click the 16 Bit DAC block in the
block diagram to display the DAC configuration register. Select
the appropriate settings, and then click Apply Changes. It is
recommended to disable the output until the correct value in
the DAC input register is written to the device.
To change the DAC voltage or current output level, write the
appropriate hexadecimal code to the DAC input register, and
then click Apply Changes. Click SW LDAC to issue a software
LDAC command, or pull the LDAC pin low to update the DAC
output register with the values in the DAC input register. Enable
the DAC output by checking the OUT_EN (Enable VI_OUT)
checkbox, and then click Apply Changes. The programmed
voltage or current is then reflected at the VI

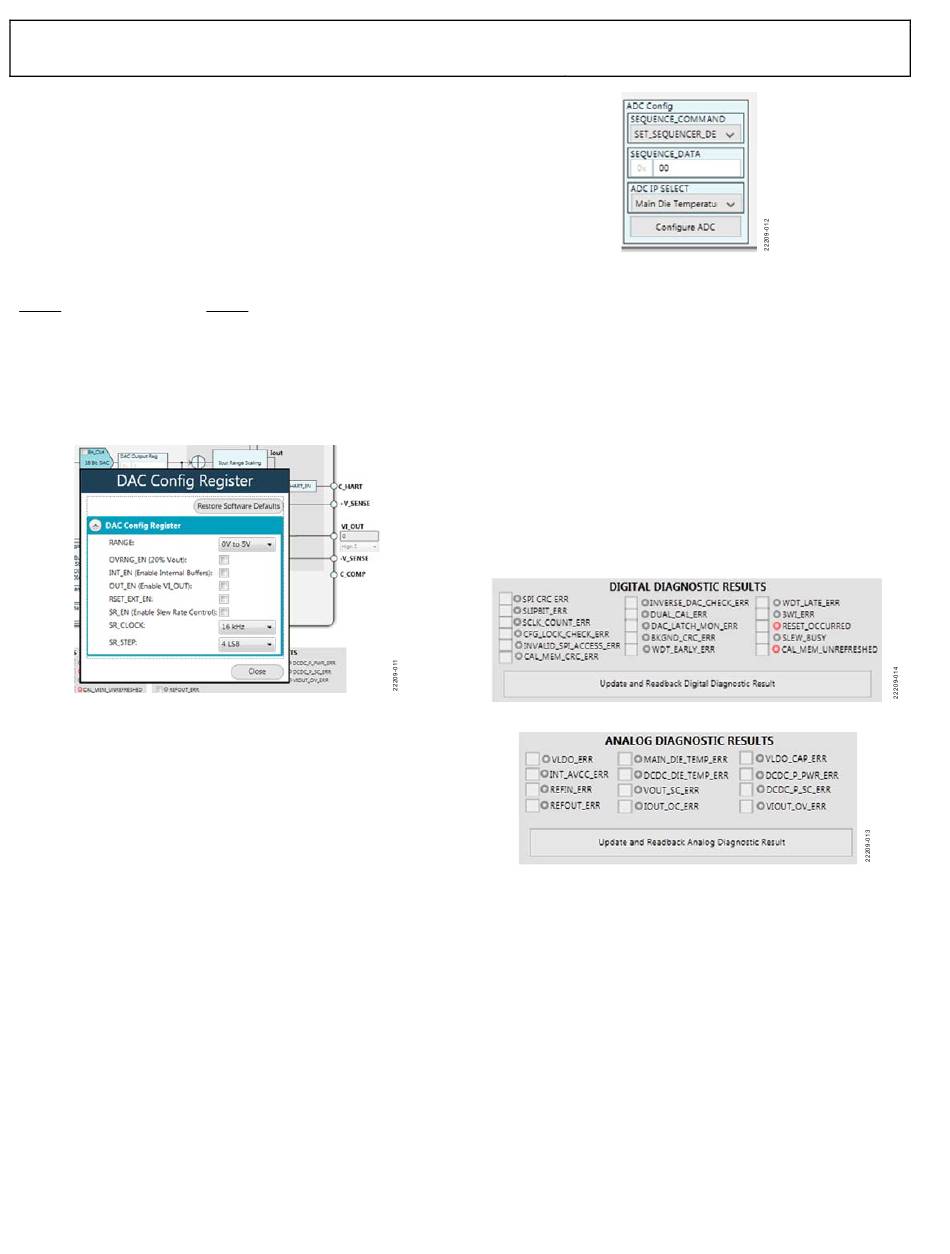

Figure 11. ADFS5758 DAC Config Register Popup Menu

WRITING TO THE ADC CONFIGURATION REGISTER

The procedure to set up and configure the ADC input node is
discussed in the ADFS5758 data sheet. For this reason, writing
to the ADC configuration register through the Apply Changes
function is disabled.
The dropdown list in the SEQUENCE_COMMAND pane
contains the list of available commands. The hexadecimal text
field in the SEQUENCE_DATA section is used in conjuction with
the SEQUENCE_COMMAND bits. The dropdown list in the
ADC IP SELECT section is used to select the desired input node
for the ADC to convert. Click Configure ADC to initiate a write
to the ADC configuration register. A register read must be
performed to see the ADC result in the status register.
pin.
OUT
Rev. 0 | Page 10 of 20
EVAL-ADFS5758SDZ
Figure 12. ADFS5758

UPDATING DIAGNOSTIC RESULTS

The ADFS5758 has a digital diagnostic results register and an
analog diagnostic results register, which contain error flags for
the on-chip digital and analog diagnostic features. Writing 1 to
the respective error flags updates the error flag status.
To update the digital and analog diagnostic results registers,
click Update and Readback Digital Diagnostic Result for digital
diagnostic results registers or Update and Readback Analog
Diagnostic Result for analog diagnostic results registers. These
buttons initiate the writing of a 1 to the selected error flag and
then read back the updated diagnostic result.
Figure 13 shows the digital diagnostic results register. Figure 14
shows the analog diagnostic results register.
Figure 13. ADFS5758 DIGITAL DIAGNOSTIC RESULTS Register
Figure 14. ADFS5758 ANALOG DIAGNOSTIC RESULTS Register
User Guide
ADC Configuration Register
