SOFTWARE QUICK START PROCEDURES

INSTALLING THE ACE SOFTWARE AND
EVAL-AD5413SDZ PLUGINS
The EVAL-AD5413SDZ board uses Analog Devices, Inc.,
software. For instructions on how to install and use the
software, go to www.analog.com/ACE.
When the installation is finished, the EVAL-AD5413SDZ
plugin appears when the ACE

INITIAL SETUP

To set up the EVAL-AD5413SDZ, take the following steps:
1. Connect a USB cable to the PC and then to the
2. Connect the SDP-S board to the EVAL-AD5413SDZ. The
PC recognizes the EVAL-AD5413SDZ.
3. Power up the EVAL-AD5413SDZ with the power supplies
recommended in the Power Supplies section.
4. Open the ACE software. The EVAL-AD5413SDZ appears
in the Attached Hardware pane of the
5. When setting up the EVAL-AD5413SDZ for the first time,
you may be required to install the EVAL-AD5413SDZ
plugin. If the plugin appears as shown in Figure 2, proceed
to Step 7. If the plugin appears as shown in Figure 3,
double-click the evaluation board symbol, and the pop-up
window shown in Figure 4 appears. Click Yes.

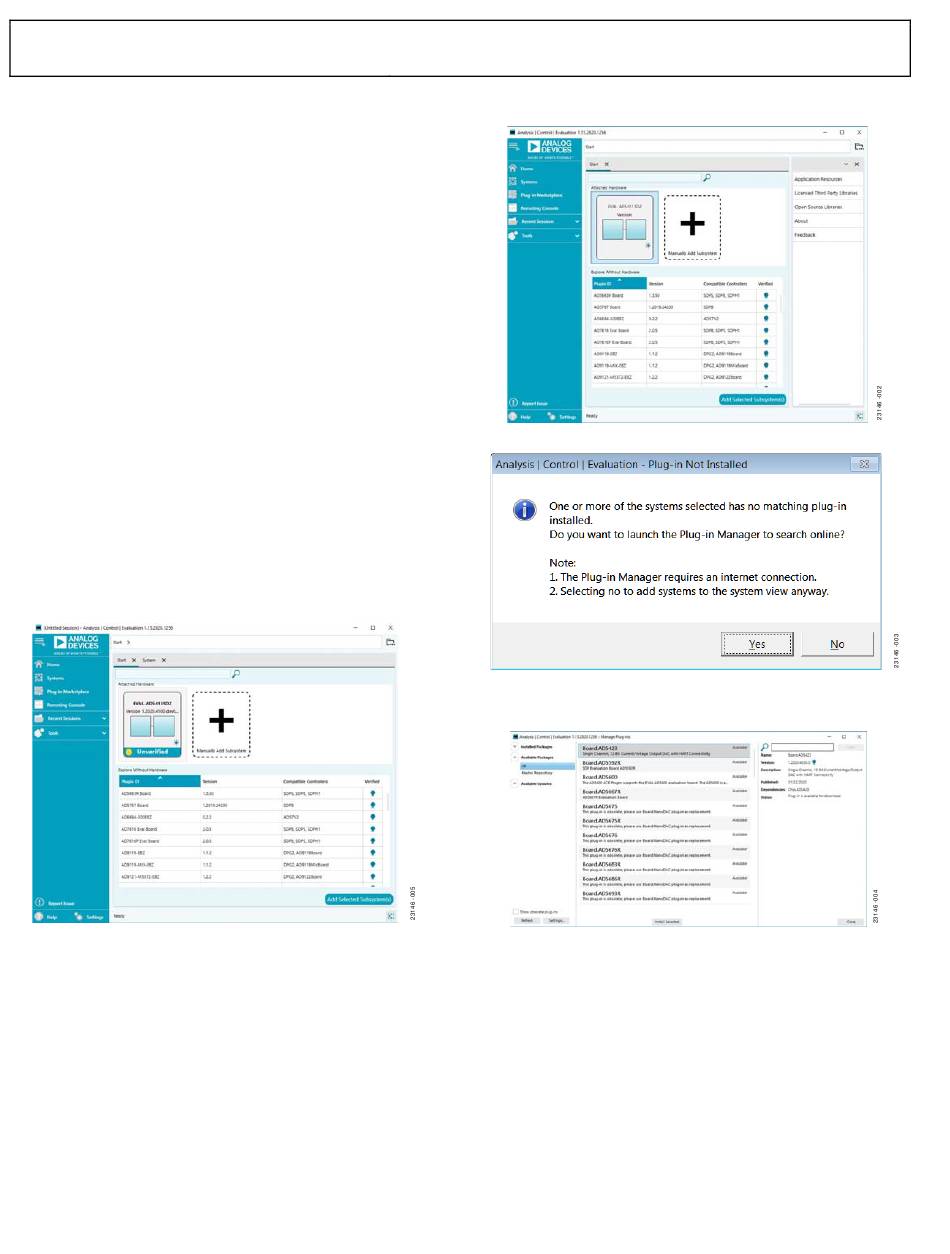

Figure 2. Attached Hardware Section with the EVAL-AD5413SDZ
Plugin Connected
ACE
ACE
software is opened.
SDP-S board.
ACE window.
EVAL-AD5413SDZ
Figure 3. EVAL-AD5413SDZ Plugin Not Installed
Figure 4. Installing the Plugin Pop-Up Window
6. The plugin manager window appears, as shown in Figure 5.
7. Find and select the Board.AD5413 plugin and click Install
Selected. The EVAL-AD5413SDZ plugin is now installed
and displays as shown in Figure 2. In Figure 5 only, the
AD5413 is synonymous with the AD5423.
8. Double-click EVAL-AD5413SDZ to open the
diagram (see Figure 7). The INITIAL CONFIGURATION
window appears on the left side of the
register settings can be configured in this pane and are
written to the device in the appropriate order. The
RESET_OCCURED and CAL_MEM_UNREFRESHED
LED indicators in the DIGITAL DIAGNOSTIC RESULTS
section are illuminated red by default (see Figure 7).
Rev. 0 | Page 4 of 17
Evaluation Board User Guide
Figure 5. Plugin Manager Window
ACE
AD5413 block
window. Several
