EVALUATION BOARD SOFTWARE QUICK START PROCEDURES

INSTALLING THE SOFTWARE

The EVAL-AD5679RSDZ uses the
software, which allows the evaluation and control of multiple
evaluation systems.
The ACE installer installs the necessary
Microsoft® .NET Framework 4 by default. The
available for download from the EVAL-AD5679RSDZ product
page and must be installed before connecting the
to the USB port of the PC to ensure that the
recognized connected to the PC. For full instructions on how to
install and use this software, see the
Analog Devices website.
After the installation is finished, the EVAL-AD5679RSDZ plug-
in appears when the ACE software is opened.

INITIAL SETUP

To set up the evaluation board, take the following steps:
1. Connect the evaluation board to the
then connect the USB cable between the
the PC.
2. Run the ACE application. The EVAL-AD5679RSDZ plug-
ins appear in the attached hardware section of the Start
tab.
3. Double-click the board plug-in to open the board view
seen in Figure 2.
4. Double-click the AD5679R
diagram. This view provides a basic representation of the
functionality of the board. The main functions of the board
are labeled in Figure 3.
User Guide
ACE evaluation
SDP-B drivers and the
ACE software is
SDP-B board
SDP-B board is
ACE software page on the
SDP-B board, and
SDP-B board and
chip to access the chip block

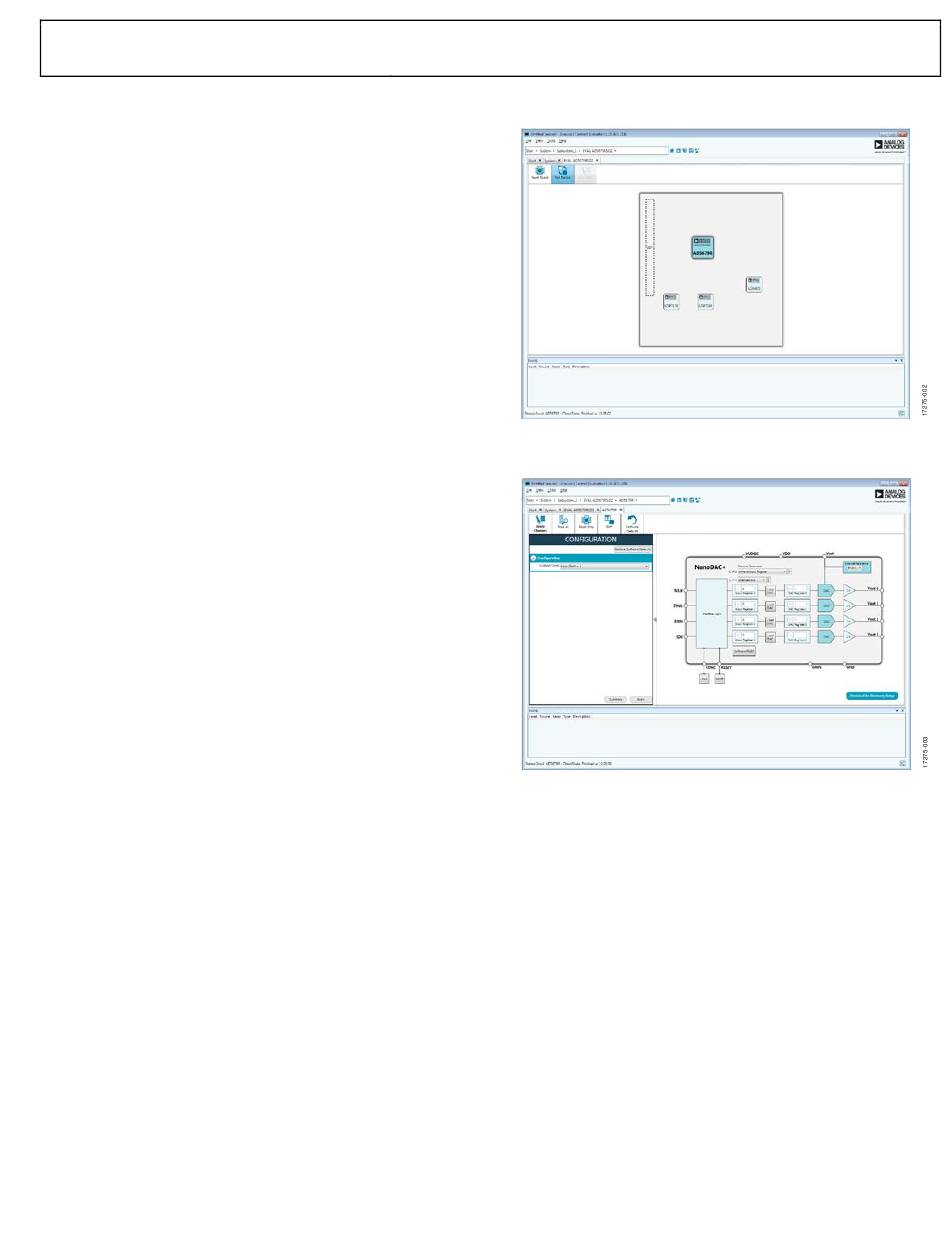

Figure 2. Board View of the EVAL-AD5679RSDZ
Figure 3. Chip Block Diagram of the
