EVALUATION BOARD SOFTWARE QUICK START PROCEDURES

The control software and USB drivers for
accompany the EV-ADF4360-8EB1Z
To install the software, use the following steps:
1. Open ADF4360_setup.msi.
2. The install wizard guides you through the installation
process. The software is installed in a default directory called
C:/Program Files/Analog Devices/ADF4360.
The software requires Microsoft's .NET Framework Version 3.5
or later to be installed on your machine. The installer automati-
cally downloads the framework from the Microsoft website if you
do not have this installed. If you do not have an Internet connec-
tion or have a slow connection on the PC, you can install the
.NET framework directly from the CD. Do this by double-clicking
dotnetfx.exe. Once installed, run ADF4360_Setup.msi again.

WINDOWS XP OS

After you have installed the software, install the USB drivers.
To do so, use the following steps:
1. Plug a USB cable into the USB connector on the evaluation
board. The Found New Hardware box opens. See Figure 5.
2. Choose Install from a list or specified location
(Advanced).
3. Click Continue Anyway when asked about Windows Logo
testing.
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
EV-ADF4360-8EB1Z
on a CD.

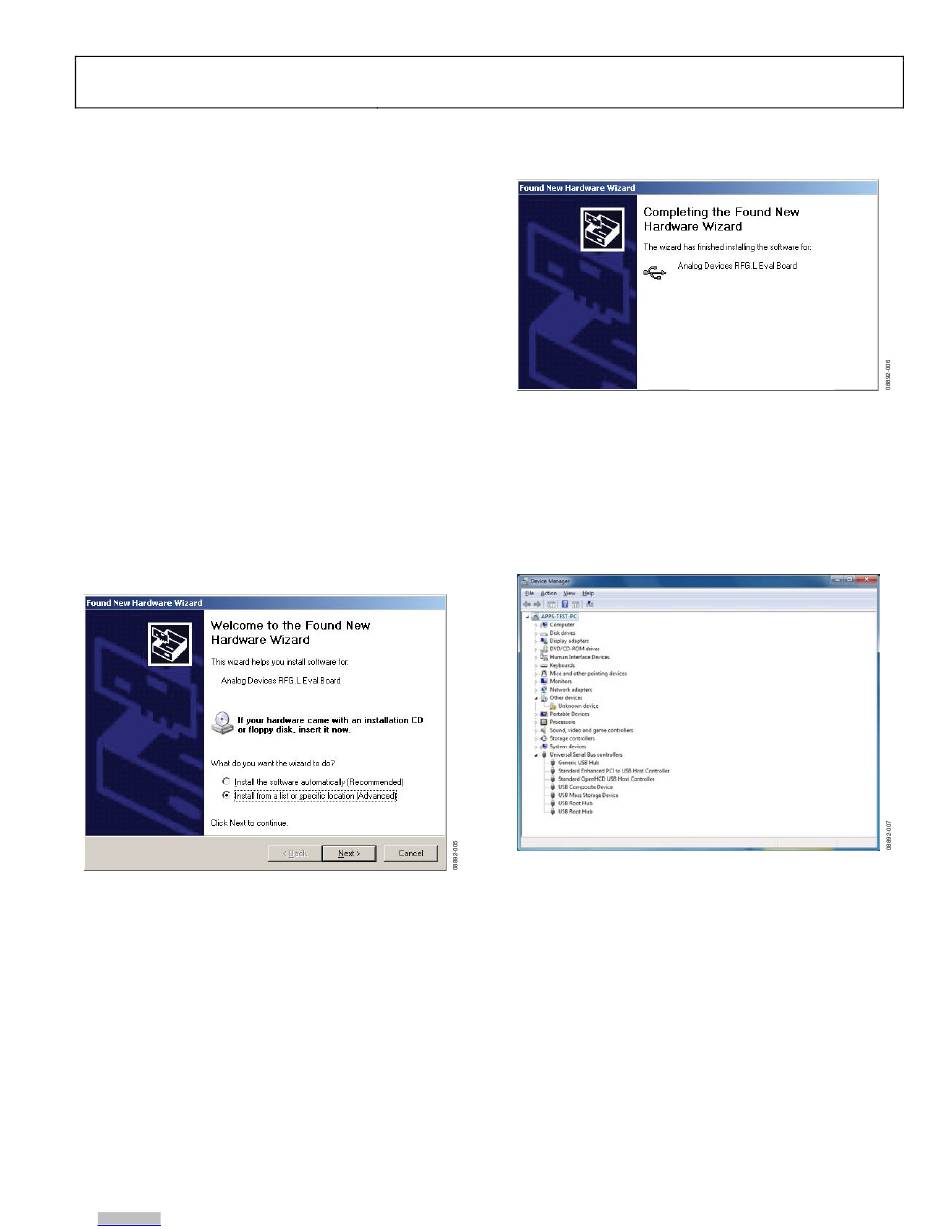

Figure 5. New Hardware Wizard
If the installation is successful, the message in Figure 6 appears.

WINDOWS VISTA OS AND WINDOWS 7 (32-BIT) OS

For Windows Vista or Windows 7 (32-bit), you must manually
install the drivers. To do so, use the following steps:
1. Find the new unknown device (the evaluation board)
in Device Manager and double-click it to open the
properties. The device should be Unknown device,
under Other devices (see Figure 7).
Rev. B | Page 5 of 16
Figure 6. Successful Installation
Figure 7. Device Manager
UG-105
