EVALUATION BOARD SOFTWARE QUICK START PROCEDURES

The control software and USB drivers for
accompany the EV-ADF4360-9EB1Z
To install the software, use the following steps:
1. Open ADF4360_setup.msi.
2. The install wizard guides you through the installation
process. The software is installed in a default directory called
C:/Program Files/Analog Devices/ADF4360.
The software requires Microsoft's .NET Framework Version 2.0
or later to be installed on your machine. The installer automati-
cally downloads the framework from the Microsoft website if you
do not have this installed. If you do not have an Internet connec-
tion or have a slow connection on the PC, you can install the
.NET framework directly from the CD. Do this by double-clicking
dotnetfx.exe. Once installed, run ADF4360_Setup.msi again.

WINDOWS XP OS

After you have installed the software, install the USB drivers.
To do so, use the following steps:
1. Plug a USB cable into the USB connector on the evaluation
board. The Found New Hardware box opens. See Figure 5.
2. Choose Install from a list or specified location
(Advanced).

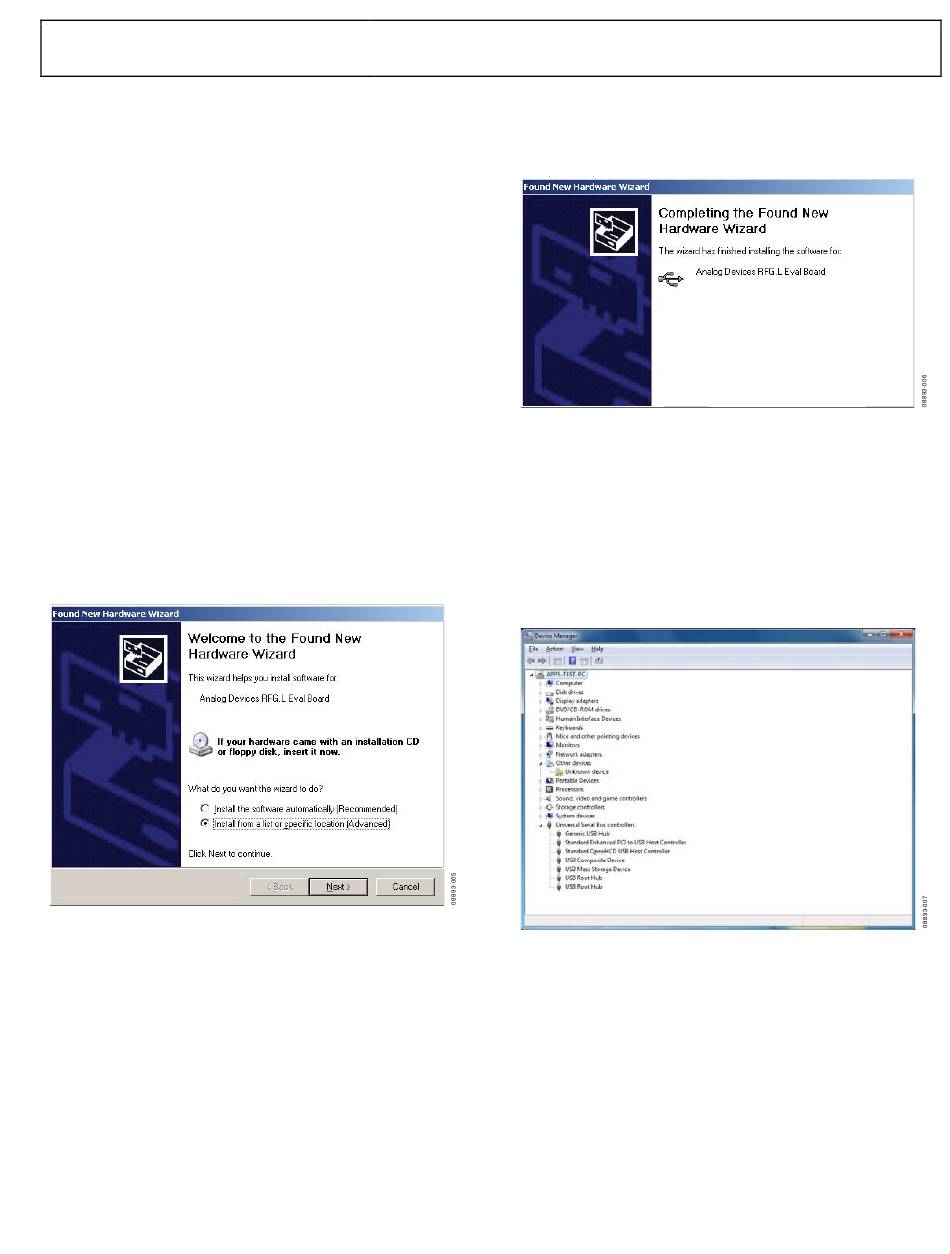

Figure 5. New Hardware Wizard
3. Click Continue Anyway when asked about Windows Logo
testing.
EV-ADF4360-9EB1Z
on a CD.
Rev. C | Page 5 of 16
4. If the installation is successful, the message in Figure 6
appears.
Figure 6. Successful Installation
WINDOWS VISTA OS AND WINDOWS 7
(32-BIT) OS
For Windows Vista or Windows 7 (32-bit), you must manually
install the drivers. To do so, use the following steps:
1. Find the new unknown device (the evaluation board)
in Device Manager and double-click it to open the
properties. The device should be Unknown device,
under Other devices (see Figure 7).
Figure 7. Device Manager
