EVAL-ADFS5758SDZ User Guide UG-1688

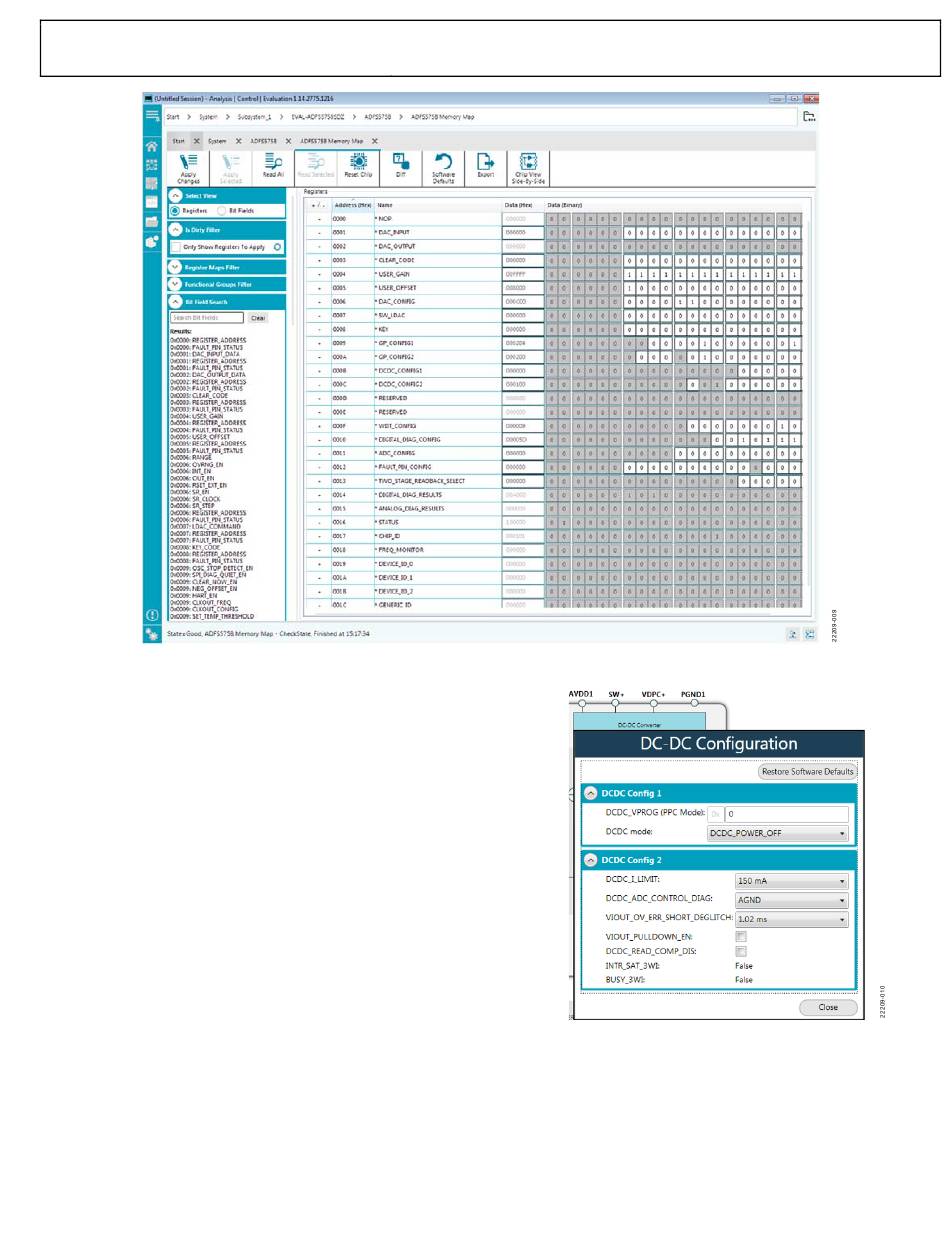

Figure 9. ADFS5758 Memory Map in the ACE Software

INITIAL CONFIGURATION

An initial configuration wizard is available when opening the
ADFS5758 plugin. The initial configuration wizard allows quick
configuration of the ADFS5758 and provides configuration of
the clock output in the general-purpose configuration register,
the dc-to-dc settings, the DAC configuration, and the DAC
input register. Clicking the Apply Changes button initiates the
configured settings in the order of the recommended power-up
sequence described in the ADFS5758 data sheet.

DC-TO-DC CONVERTER SETTINGS

If the V pin is not tied directly to AV , enable the dc-to-dc
DPC+ DD1
converter for proper operation. This step must be completed
before configuring the DAC output. The DC-DC Configuration
popup menu, as shown in Figure 10, contains the dc-to-dc
settings required to configure the ADFS5758 output properly.
After the desired settings are selected, click the Close button
and then click Apply Changes. Figure 10. DC-DC Configuration Popup Menu
Rev. 0 | Page 9 of 20
