EXAMPLE CONFIGURATION SEQUENCES

Several example configuration sequences are available. Click
Example Sequences to open the Sample ADFS5758 Sequences
window shown in Figure 15. To enable any of the sequences,
User Guide

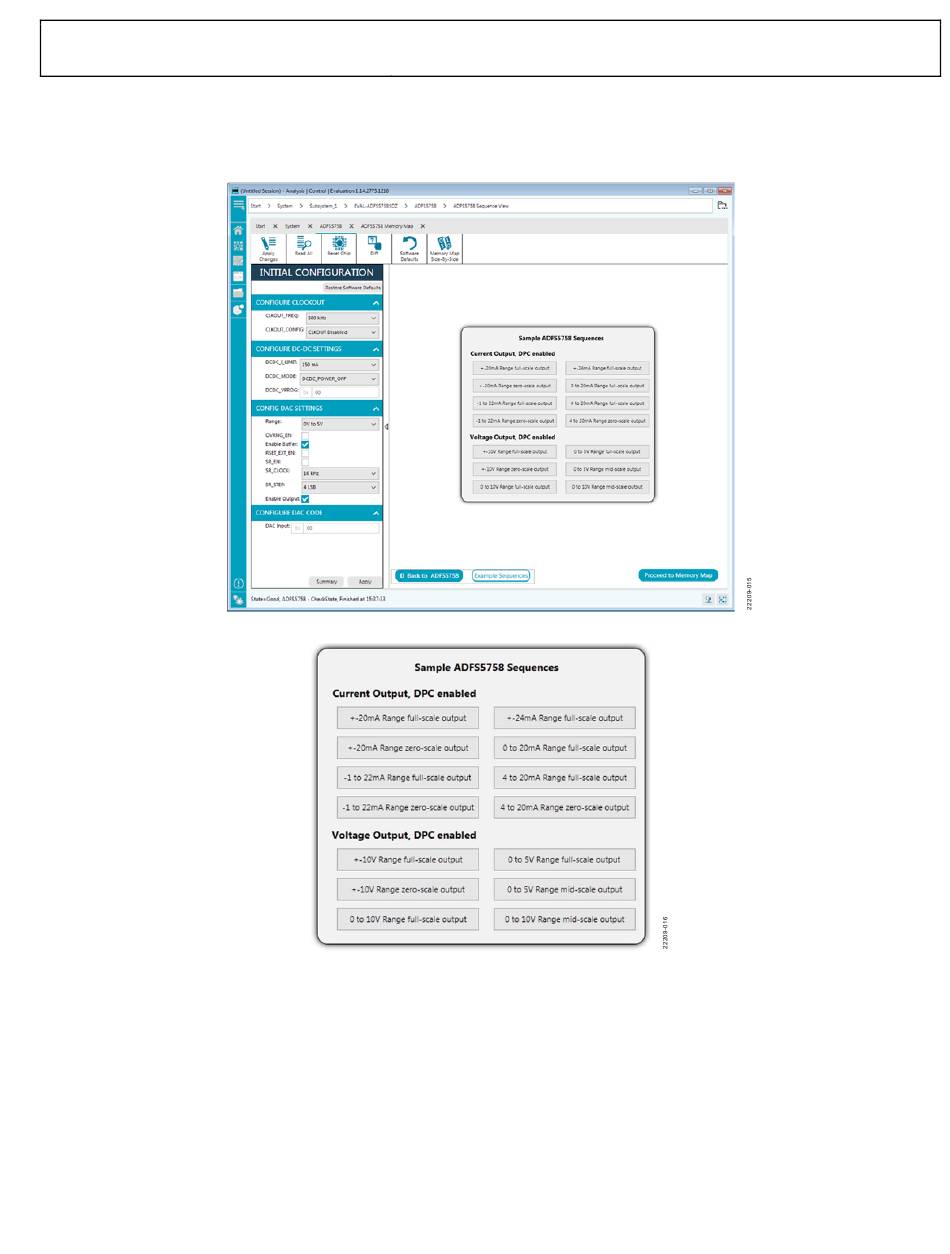

Figure 15. Example Sequences Window
Figure 16. Selecting an Example Sequence
Rev. 0 | Page 11 of 20
click the relevant sequence button, as shown in Figure 16. The
sequence runs immediately and the output changes accordingly.
To return to the main window, click Back to ADFS5758.
