EVALUATION BOARD SOFTWARE QUICK START PROCEDURES

The control software and USB drivers for EV-ADF4360-7EB1Z
accompany the EV-ADF4360-7EB1Z on a CD. To install the
software, use the following steps:
1. Open ADF4360_setup.msi.
2. The install wizard guides you through the installation
process. The software is installed in a default directory called
C:/Program Files/Analog Devices/ADF4360.
The software requires Microsoft's .NET Framework Version 2.0
or later to be installed on your machine. The installer automati-
cally downloads the framework from the Microsoft website if
you do not have this installed. If you do not have an Internet
connection or have a slow connection on the PC, then you
can install the .NET framework directly from the CD. Do
this by double-clicking dotnetfx.exe. Once installed, run
the ADF4360_Setup.msi again.

WINDOWS XP OS

Once you have installed the software, install the USB drivers.
To do so, use the following steps:
1. Plug in a USB cable to the USB connector on the
evaluation board. The Found New Hardware box
appears. See Figure 5.
2. Choose Install from a list or specified location
(Advanced).
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from

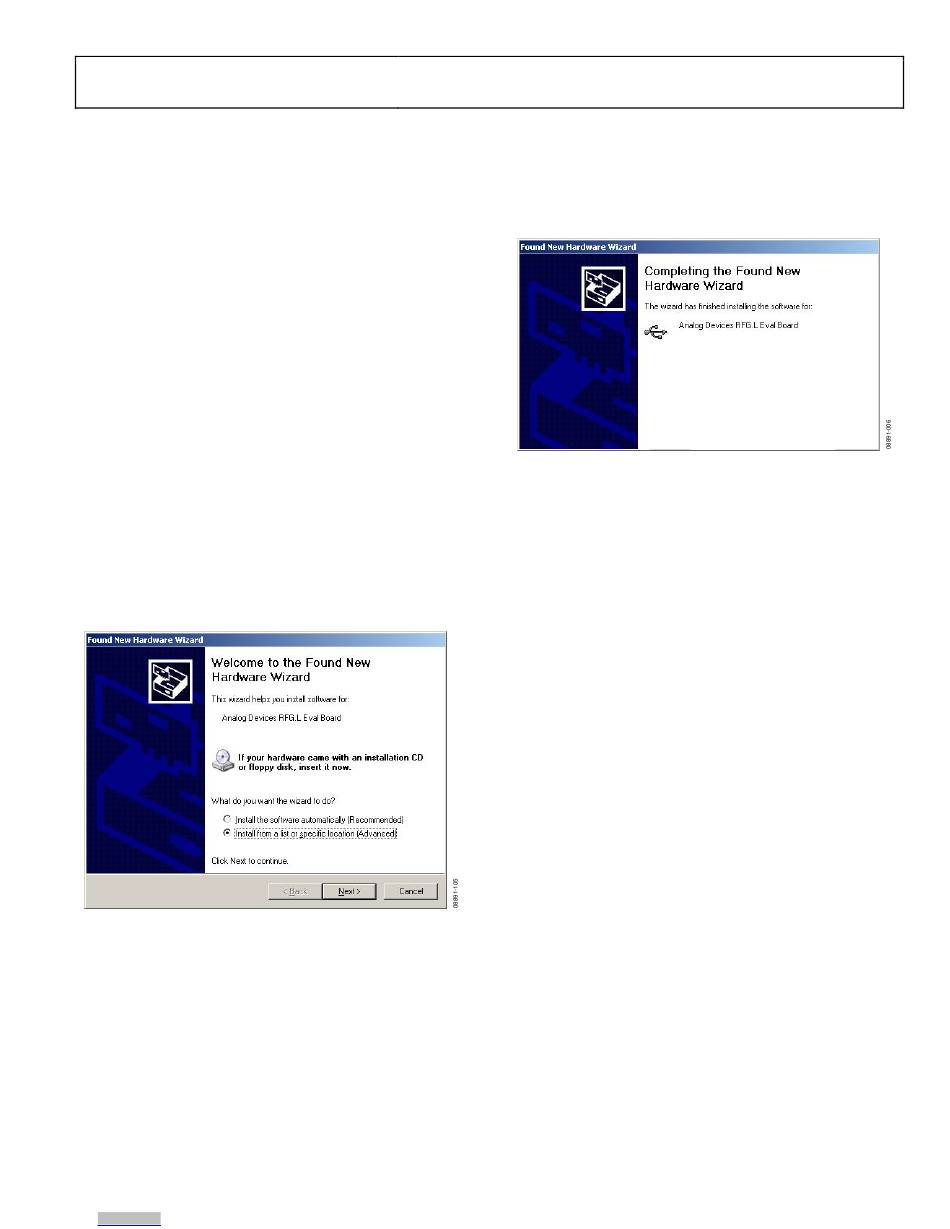

Figure 5. New Hardware Wizard
3. Click Continue Anyway when asked about Windows Logo
testing.
4. If the install was successful, the message box in Figure 6
appears.
