EVAL-AD5423SDZ

SOFTWARE QUICK START PROCEDURES

INSTALLING THE ACE SOFTWARE AND
EVAL-AD5423SDZ PLUGINS
The EVAL-AD5423SDZ board uses Analog Devices, Inc.,
software. For instructions on how to install and use the
software, go to www.analog.com/ACE.
When the installations are finished, the EVAL-AD5423SDZ
plugin will appear when you open the

INITIAL SETUP

To set up the EVAL-AD5423SDZ, take the following steps:
1. Connect a USB cable to the PC and then to the
2. Connect the SDP-S board to the EVAL-AD5423SDZ. The
PC recognizes the EVAL-AD5423SDZ.
3. Power up the EVAL-AD5423SDZ with the power supplies
recommended in the Power Supplies section.
4. Open the ACE software. The EVAL-AD5423 SDZ appears
in the Attached Hardware pane of the

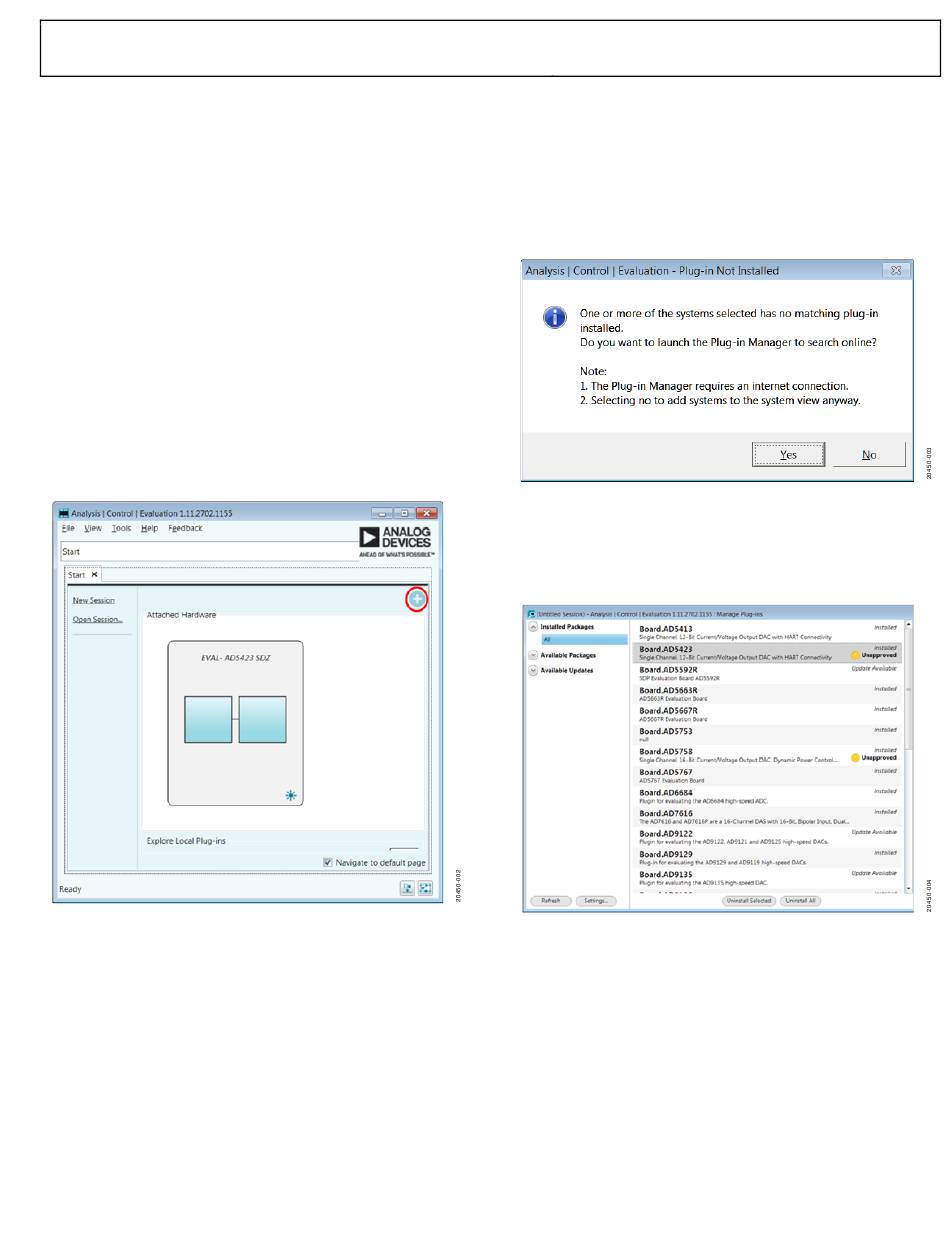

Figure 2. EVAL-AD5423SDZ Plugin Not Installed
Evaluation Board User Guide
ACE
ACE software.
SDP-S board.
ACE window.
5. When setting up the evaluation board for the first time, it
can be required to install the EVAL-AD5423SDZ plugin. If
the plugin appears as shown in Figure 5, then proceed to
ACE
Step 7. If the plugin appears as shown in Figure 2, click on
the button circled in red and the pop-up window shown in
Figure 3 appears. Click Yes.
6. The plugin manager window appears, as shown in Figure 4.
7. Find and select the Board.AD5423 plugin and click Install
Selected. The EVAL-AD5423SDZ plugin is now installed
and displays as shown in Figure 5.
Rev. 0 | Page 5 of 19
Figure 3. Installing the Plugin Pop-Up Window
Figure 4. Plugin Manager Window
UG-1554
