UG-979
EVALUATION BOARD SOFTWARE QUICK START PROCEDURES
INSTALLING THE SOFTWARE
The
EVAL-AD5338RDBZ
evaluation software is compatible with
Windows® Vista (64-bit/32-bit) and Windows 7 (64-bit/32-bit).
The software must be installed before connecting the
to the USB port of the PC to ensure that the
recognized when it connects to the PC.
To install the software, take the following steps:
1.
Start the Windows operating system. Download the
installation software from the
evaluation board page.
2.
Run the setup.exe file from the installer folder if it does not
open automatically.
3.
After installation is completed, power up the evaluation
board as described in the Motherboard Power Supplies
section.
4.
Connect the evaluation board to the
SDP-B
board into the PC using the USB cable included in
the evaluation kit.
5.
When the software detects the evaluation board, click
through any dialog boxes that appear to finalize the
installation.
RUNNING THE SOFTWARE
To run the program, do the following:
1.
Connect the evaluation board to the
connect the USB cable between the
2.
Power up the evaluation board as described in the
Motherboard Power Supplies section.
3.
From the Start menu, click All Programs, Analog Devices,
AD5338R Evaluation Software.
4.
If the
SDP-B
board is not connected to the USB port when
the software is launched, a connectivity error displays (see
Figure 2). Connect the evaluation board to the USB port of
the PC and wait a few seconds. When the
detected, the display is updated (see Figure 3).
Alternatively, the software can be used without an evaluation
board. The software runs in simulation mode displaying expected
outputs based on the input data. The main window of the
AD5338R
evaluation software then opens, as shown in Figure 4.
SDP-B
board
SDP-B
board is
EVAL-AD5338RDBZ
SDP-B
board and the
SDP-B
board and
SDP-B
board and the PC.
SDP-B
board is
Rev. 0 | Page 4 of 13
EVAL-AD5338RDBZ User Guide

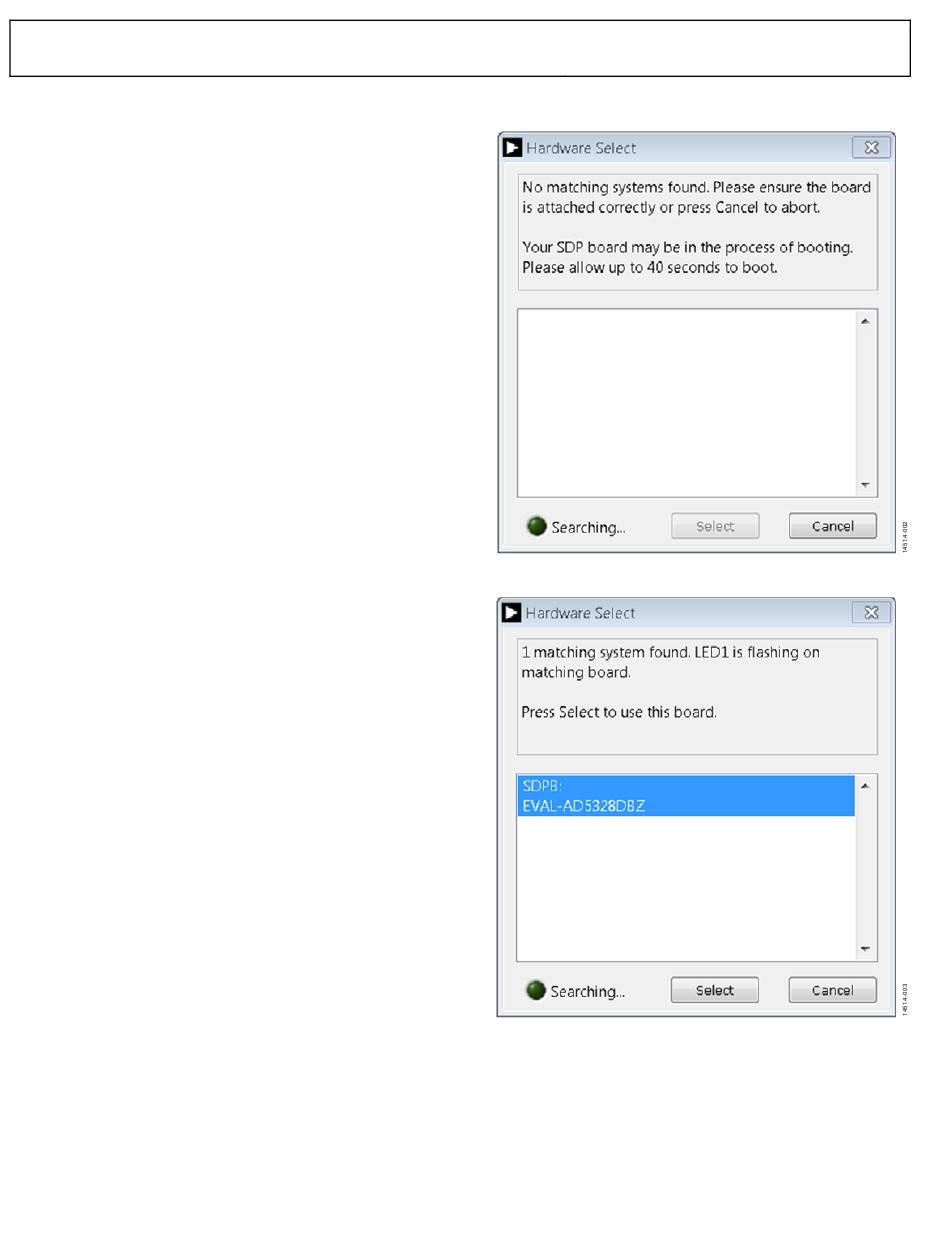

Figure 2. Connectivity Error
Figure 3. Hardware Select
