EVALUATION BOARD SOFTWARE QUICK START PROCEDURES

The ADG2108 evaluation kit includes software on the CD-ROM.
The evaluation software must be installed before connecting the
evaluation board to the USB port of the PC to ensure that the
evaluation board is correctly recognized when connected to the PC.

SOFTWARE INSTALLATION

To install the software,
1. Start the PC and insert the CD. The installation software
should launch automatically. If it does not, use Windows®
Explorer to locate the file setup.exe on the CD. Double-
click this file to start the installation procedure.
2. At the prompt, select a destination directory. By default,
it is C:\Program Files\Analog Devices\ADG2108.
After the directory is selected, the installation procedure
copies the files into the relevant directories on the hard
drive. The installation program creates a program group
called Analog Devices with a subgroup called ADG2108
in the Start menu of the taskbar.
3. After the installation of the evaluation software is
complete, a welcome window displays for the installation
of the ADI PAD Drivers. Click Install to install the
drivers.
4. After the installation of the drivers, power up the
ADG2108 evaluation board as described in the Power
Supplies section. Then, connect the board to the USB port
of the PC using the supplied cable.

SOFTWARE OPERATION

To launch the software, click Start > All Programs > Analog
Devices > ADG2108 > ADG2108 Evaluation Software. The
Configuration tab of the evaluation software then displays as
shown in Figure 2.

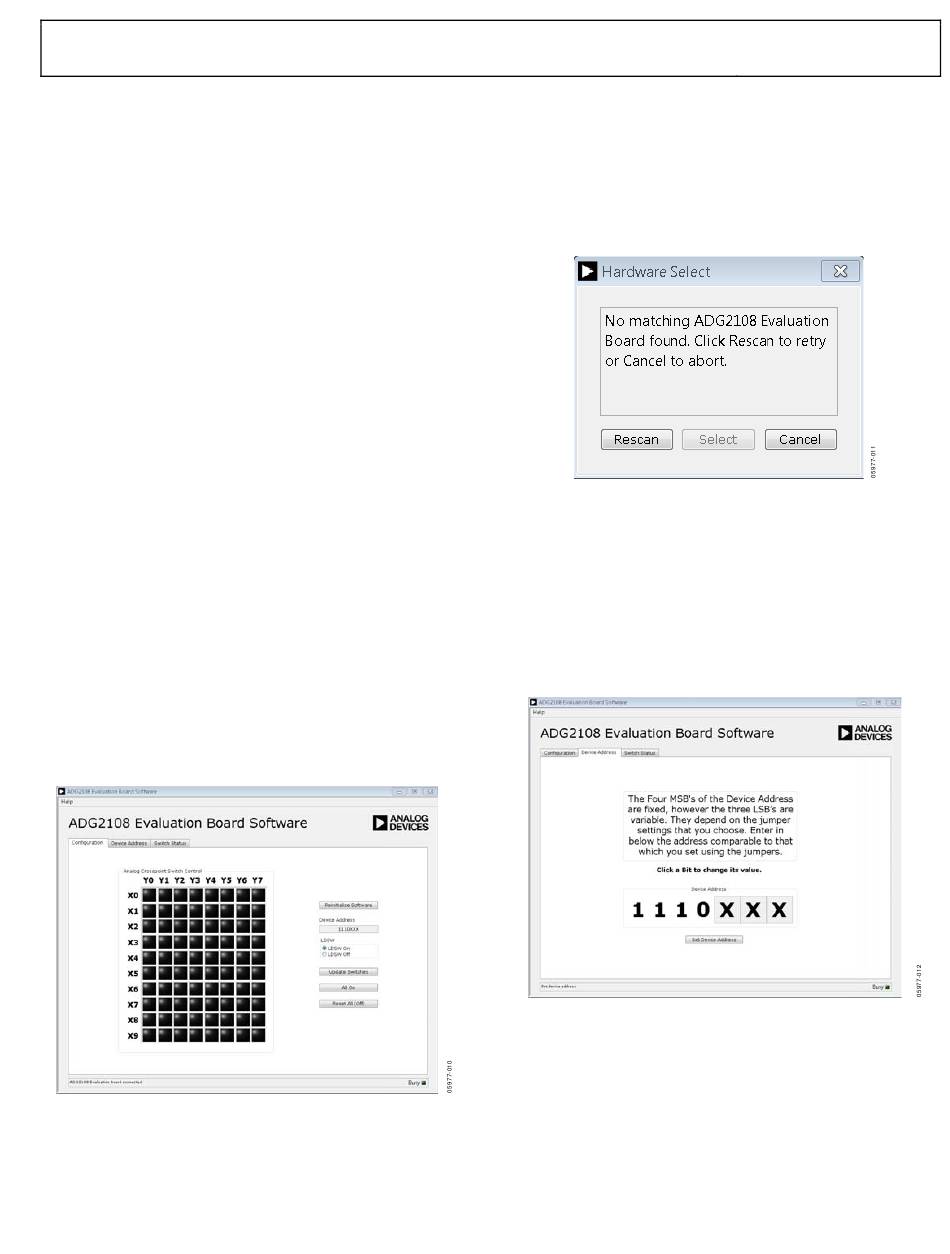

Figure 2. Configuration Tab
If the ADG2108
port when the software is launched, a Hardware Select dialog
box displays (shown in Figure 3). Connect the evaluation board
to the USB port of the PC, wait for a few seconds, click Rescan,
and then click Select. The Configuration tab of the evaluation
software then displays, as shown in Figure 2.
Reinitialize Software
Click Reinitialize Software in the Configuration tab to reset
the software to its default state. Reinitialize the software
whenever the evaluation board is reconnected to the PC;
otherwise, a new evaluation board is used.
2
Setting the I C Address
The device address can be set in the Device Address tab (shown
in Figure 4).
Set the device address by clicking the relevant bit. Remember
to click Set Device Address to update the device address in
the software. Note that the address set must correspond to the
address set with the jumpers on the evaluation board; the
address must be set before the evaluation board software works.
Rev. B | Page 5 of 12
evaluation board is not connected to the USB
Figure 3. Hardware Select Dialog Box
Figure 4. Device Address Tab
