EVAL-ADPD2140Z

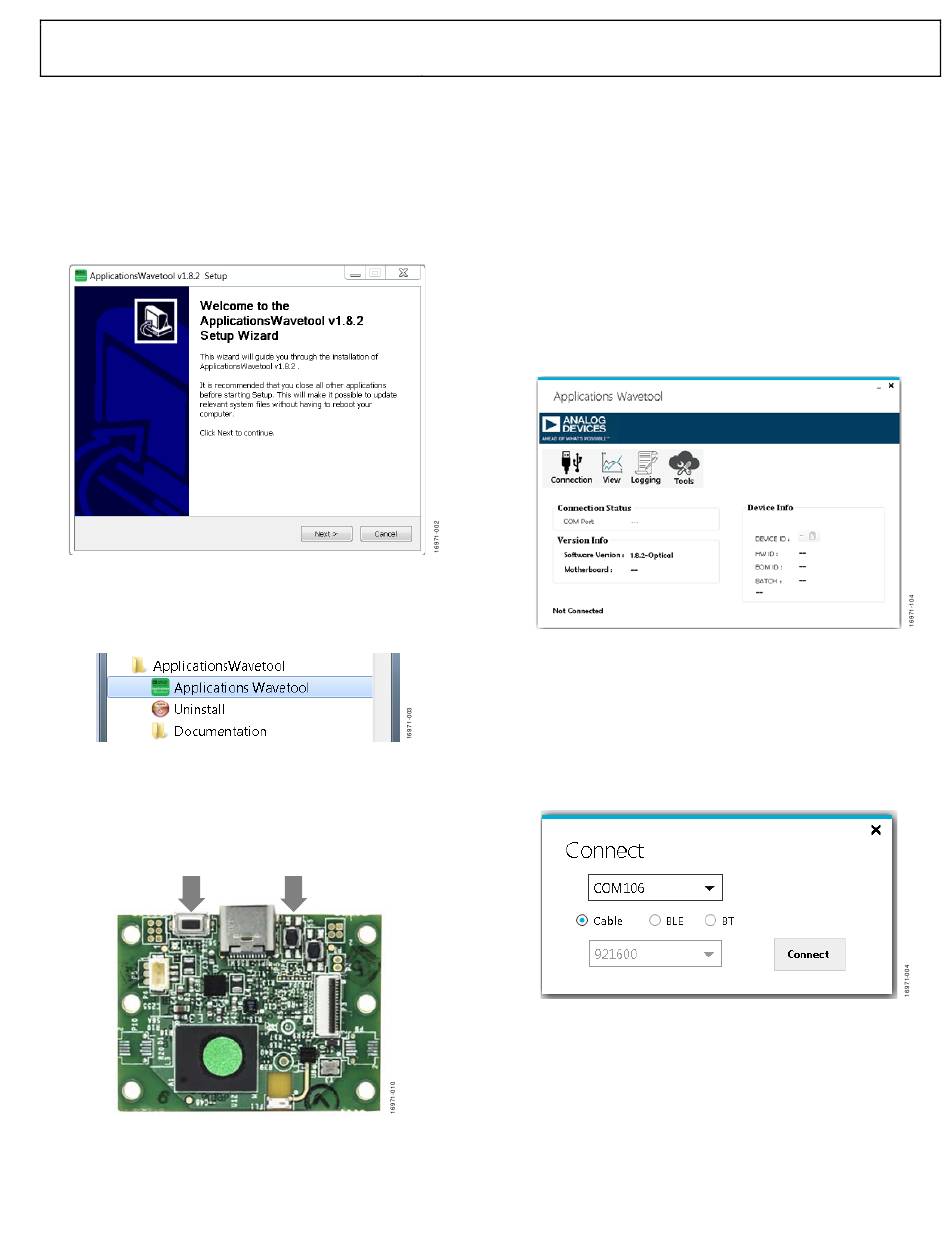

EVALUATION BOARD SOFTWARE QUICK START PROCEDURES

INSTALLING THE APPLICATIONS WAVETOOL
Download the Applications Wavetool
EVAL-ADPD2140Z evaluation board product page. Unzip the
downloaded software folder, run the enclosed Applications_
Wavetool_1853.exe file, and follow the prompts for installing the
Applications Wavetool software (see Figure 2).
Figure 2. Applications Wavetool
To start the Applications Wavetool
ApplicationsWavetool folder from the Start menu and click the
Applications Wavetool icon (see Figure 3).
Figure 3. Navigate to the ApplicationsWavetool Folder from the Start Menu
At startup, the Applications Wavetool
checks if the installed Applications Wavetool
up to date. If there is a newer version available, the user is prompted
to download the newest version.
RESET
Figure 4. EVAL-ADPDM3Z
User Guide
software package from the
Setup
application, navigate to the
application automatically
software version is
BOOT
Evaluation Board
EVAL-ADPD2140Z EVALUATION BOARD USB
CONNECTION
Prior to starting the
the EVAL-ADPD2140Z evaluation board to the
evaluation board via the board to board connectors. Connect the
EVAL-ADPDM3Z
cable included with the evaluation kit. The PC automatically
finds the device drivers and installs them if they have not been
previously installed. When the
board is connected, open the
(see Figure 5).
Figure 5.
After the Applications Wavetool
Connection > Connect to open the communication (COM)
port selection window. Select the appropriate COM port from
the Connect dropdown menu and click Connect (see Figure 6).
The Applications Wavetool
ADPD2140Z evaluation board is connected by displaying M3
Motherboard Found on the screen.
Rev. 0 | Page 3 of 7
Applications Wavetool application, connect
evaluation board to a PC via the USB-C
EVAL-ADPDM3Z
Applications Wavetool
Applications Wavetool Window
application opens, click
then acknowledges that the EVAL-
Figure 6. COM Port Selection Window
UG-1358
EVAL-ADPDM3Z
evaluation
application
