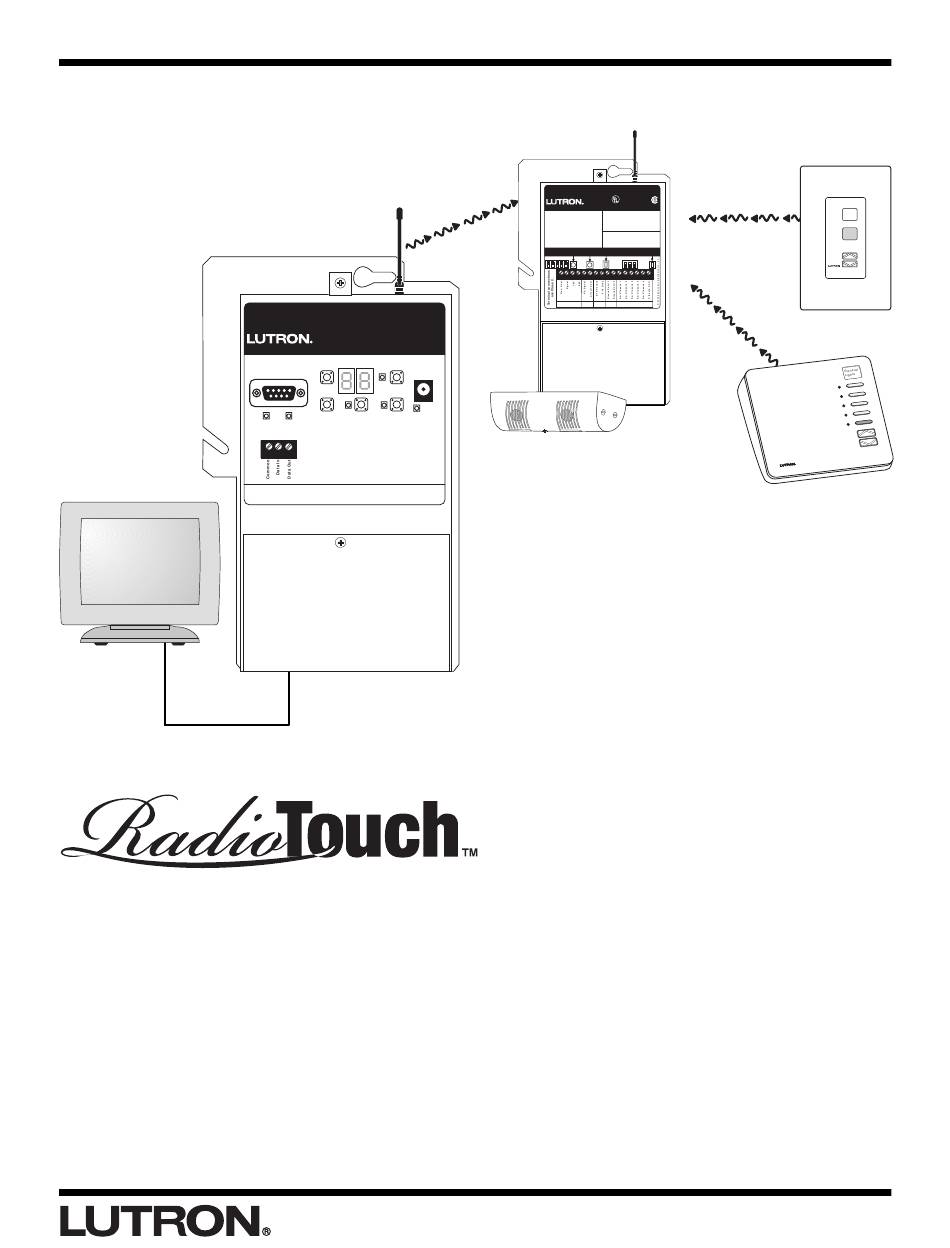

RTA-RS232
Setup and Installation Guide
For RadioTouch
A Comprehensive Step-by-Step Guide for Programming
and Operating the Lutron
Note: Please leave this manual with facility manager.
RadioTouch
TM
RTA-RS232
Radio Frequency
Interface
INTERFACE CONTROL
PELV(CLASS 2:USA)
Coopersburg, PA 18036
Display
Power
9V
RS232 Connector
AC IN
Status
Left
Right
LED
Scroll
Scroll
Mode
Enter
Address
Power
TX
RX
OR
See the RTA-RS232 Setup Guide for interface
Optional Terminal
programming and operation instructions. For
Block Connector
additional system details consult the
RadioTouch
Installers Guide, which is
TM
included with each RadioTouch
Controller.
1 2 3
TM
RadioTouch is a trademark of Lutron Electronics Co., Inc.
This product may be covered by one or more of the following
U.S. patents: 5,248,919; 5,399,940; 5,736,965; 5,798,581;
5,838,226; 5,848,054; 5,905,442, 5,982,103
P/N 500-9258 Rev A
For additional assistance call the Lutron Technical
(800) 523-9466.
Support Center at
RS232 Interface
TM
RadioTouch
TM
®
RadioTouch
RTA-RX-F-SC
TM
Radio Frequency Controller
LISTED 243C
Ind. Cont. Eq.
Coopersburg, PA 18036
RECEIVER SWITCH SETTINGS
STATUS INDICATOR OPERATION
1. UP-Preset Lock
DN.-Preset Adj.
ON - Burn-in Mode
2. UP-Occ. Sensor
DN.-Emerg. Set.
Slow Blink -Normal Operation Mode
3. UP-FDB Mode
DN.-ECO Mode
Fast Blink - Program Mode
Very Fast Blink - Receiving RF Data
4. UP-OFF
DN.-Min. Light
5. UP-Auto ON
DN.-Manual ON
SHADE SWITCH SETTINGS
See Installers Guide for System
1. UP-A/C Shades
Addressing and Programming Instructions
Receiver
Powered
Status
Program
Shade
Settings
When Lit
Indicator
Button
Settings
1 2 3 4 5
1 2 3
1 2 3
4
5
6 7
8
9 10 11 12 13 14 15 16
0-10 V Shade
Switch Closures
Occ. Sensor
RS232 Interface
®
DN.-Normal Oper.
Burn-in
Button
ON
OFF
