Lutron Electronics RadioRA RA-RC-3 Quick Start Manual

For Your Information ...
Using the RadioRA
Overview
The RadioRA System can now be controlled from any location worldwide by using the RadioRA Telephone Interface (RA-
®
RC-3). The Telephone Interface allows for activation of scenes programmed to a RadioRA Switch Closure Interface (RA-SCI)
via telephone. By connecting the three (expandable to nine) outputs from the Telephone Interface to the inputs of the RA-
SCI, pressing buttons on any telephone will turn lighting scenes ON/OFF.
Wiring

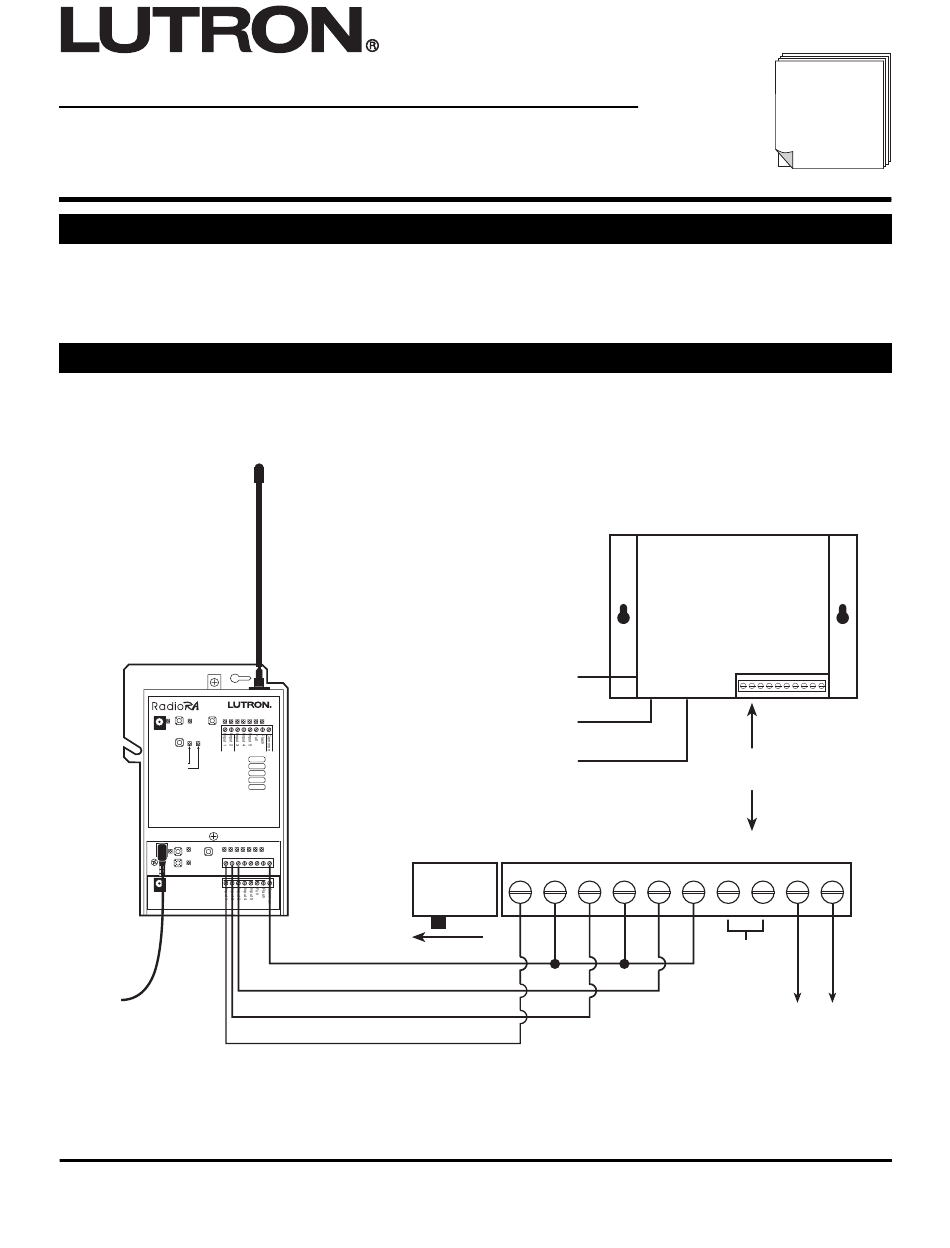

The wiring diagram below shows how to wire up three outputs from the RadioRA Telephone Interface (RA-RC-3) to the
inputs of a RadioRA Switch Closure Interface (RA-SCI). The RA-RC-3 and RA-SCI can then be programmed as described
on the following page to activate the desired scenes. For this application, RA-SCI inputs must be set up for MOMENTARY
operation. A dedicated phone line is not required, but is recommended.
Switch Closure
Interface
Model No.
RA-SCI
TM Coopersburg, PA USA
S w i t c h C l o s u r e I n p u t I n t e r fa c e
ON
Input
Program
Select
Power Button LED
Closure
Type
Input 1
Momentary LED
Input 2
Maintained LED
Input 3
Input 4
Input 5
See the Switch Closure Interface Addendum to the Programming
Guide for operating instructions.
For additional assistance call the Lutron Technical Assistance
Hotline: 1-800-523-9466
FCC ID JPZ0005 Patents Pending
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference and (2) This device must accept any
interference received including interference that may cause undesired operation.
Class 2
AC IN
connection only
To AC
Transformer
(Supplied)
* The RA-RC-3 monitors for DTMF tones anytime the phone line is in an off-hook condition. This allows for its use in conjunction with an
answering machine.
After wiring as above, proceed to programming on the following page. To have additional information faxed to you concerning
the Telephone Interface, call 715-386-4345 and request document #165.
Need additional assistance? Call the Lutron Technical Assistance Hotline 1-800-523-9466
Telephone Interface
®
Transformer (Supplied)
To C. O. telephone line
To in house phones* or
additional RA-RC-3
Talk Battery
OFF
Common
Scene 3
Scene 2
Scene 1
Please provide exact model number when calling.
To 12 VDC
Relay 1 Relay 2
NO C NO C
1 2 3 4
ON
APPLICATION
NOTE
#46
Telephone Interface
Model No.
RA-RC-3
Terminals
RJ-IN RJ-OUT
Close-up
of RA-RC-3
Terminals
Relay 3 12VDC
NO C NC A -
5 6 7 8 9
Not used
for this
application
To additional
RA-RC-3 units
(if used)
+
10
