Lutron

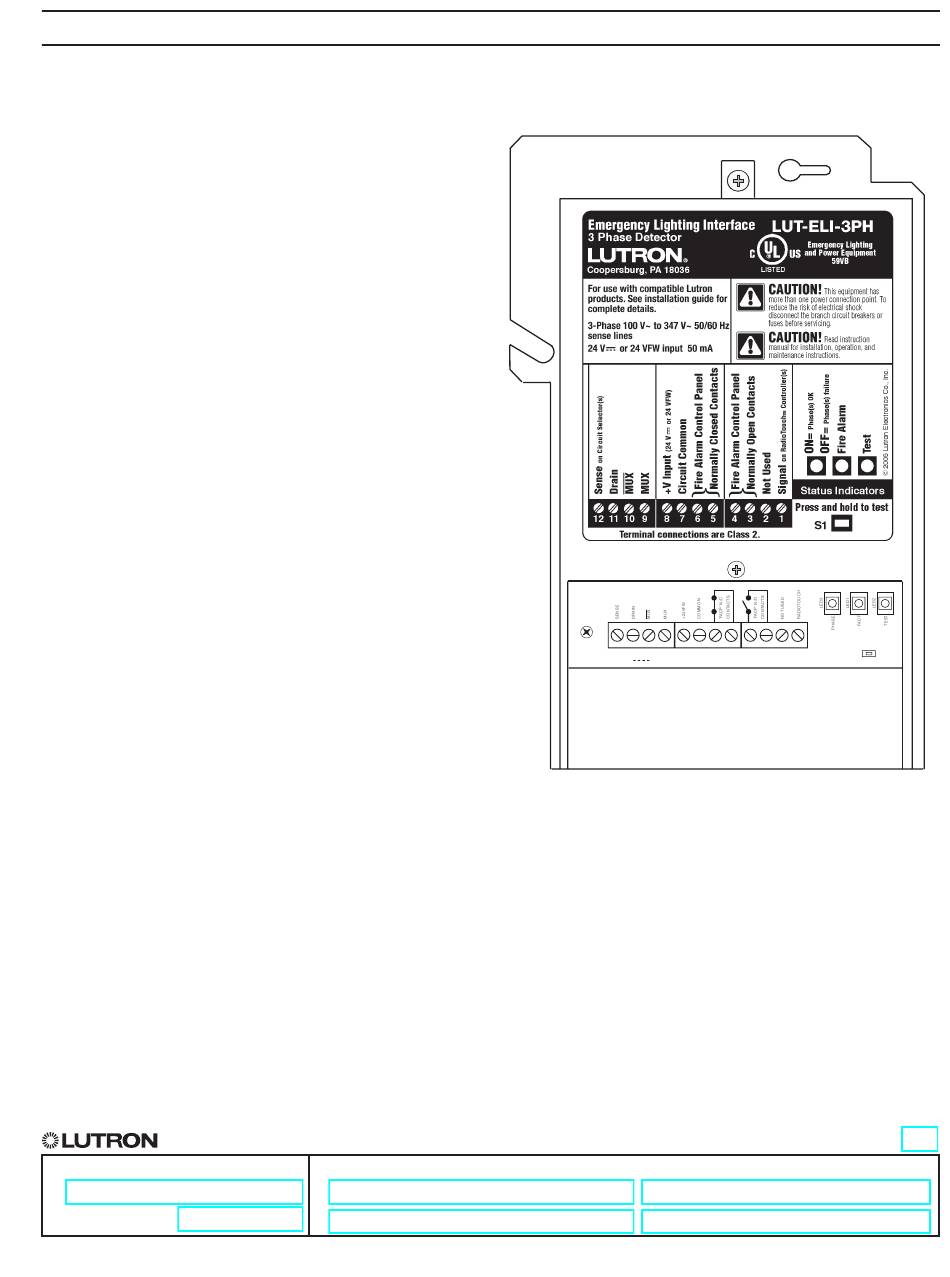

LUT-ELI-3PH Emergency Lighting Interface
The LUT-ELI-3PH is a device that works with Lutron
lighting controls to provide an emergency lighting
solution. The device is capable of sensing normal
(non-essential) line voltage power and accepting an
output from a fire alarm control panel (FACP). Upon loss
of normal power or receiving a signal from the FACP, the
LUT-ELI-3PH will send a signal to the compatible Lutron
control(s) to which it is connected. This signal will cause
the controls to enter the emergency lighting mode and
any lights controlled will go to the emergency light level
setting.
Features
• Compatible Lutron controls
– GP, LP, LCP, XP, XPS, CCP, CXP, and HS
– Energi Savr Node units
– GRAFIK Eye QS units
– Quantum lighting management hubs with EcoSystem
bus supplies
– Vive wireless hub with Emergency PowPak devices
•
ULR 924 & CSA C22.2 No. 141-02 listed as "Emergency
Lighting and Power Equipment"
• Requires a 24 V- power feed from a source on
normal / emergency (essential) power for unit to operate.
•
Status light indicates the phase status. Status light "ON"
is normal mode, "OFF" is emergency mode.
• A test button is provided to perform a functional test of
the system by simulating an emergency situation.
• Accepts a maintained dry contact closure from an FACP
to actuate the emergency mode.
• Senses line voltage from 100–347 V~.
S P E C I F I C AT I O N S U B M I T TA L
Job Name:
Job Number:
LUT-ELI-3PH
Model Numbers:
GND
12
12
12
11
11
11
10
10
10
9
9
9
8
8
8
7
7
7
6
6
6
5
5
5
4
4
4
CLASS 2 LOW VOLTAGE WIRING
Power Accessories
369299h
1 09.06.24
3
3
3
2
2
2
1
1
1
S1
Page
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUT-ELI-3PH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lutron Electronics LUT-ELI-3PH

Summary of Contents for Lutron Electronics LUT-ELI-3PH

  • Page 1 LUT-ELI-3PH 369299h 1 09.06.24 LUT-ELI-3PH Emergency Lighting Interface The LUT-ELI-3PH is a device that works with Lutron lighting controls to provide an emergency lighting solution. The device is capable of sensing normal (non-essential) line voltage power and accepting an output from a fire alarm control panel (FACP). Upon loss...

  • Page 2: Specifications

    • Meets the Canadian National Building Code plenum • May be added to an existing Lutron system. requirements for a concealed space used as a • One LUT-ELI-3PH unit may be used with up to plenum within a floor or roof assembly 32 circuit selectors, specification-grade panel •...

  • Page 3: Dimensions And Mounting

    Lutron Power Accessories LUT-ELI-3PH 369299h 3 09.06.24 Dimensions and Mounting All dimensions shown as in (mm) Front View Side View 2.50 5.00 (64) (127) 7.75 (197) CLASS 2 LOW VOLTAGE WIRING Mounting Example Side View (Cross-Section) 4 x 4 in (102 x 102 mm)
  • Page 4 Lutron Power Accessories LUT-ELI-3PH 369299h 4 09.06.24 Line Voltage Wiring Examples: 3-Phase Diagram Ground Neutral Phase C Normal Power Phase B Phase A Red Red White Green Guide to Power Source Wiring Wire Connects to Phase A Phase B Phase C...
  • Page 5 Lutron Power Accessories LUT-ELI-3PH 369299h 5 09.06.24 Line Voltage Wiring Examples: (continued) Single Phase Diagram Ground Neutral Normal Power Line / Hot Red Red White Green Guide to Power Source Wiring Wire Connects to Red * Line / Hot White...
  • Page 6 • The switch on the circuit selector / controller (SW6) must be in the right-most position, “Essential” for all Emergency Panels. • Terminal 8 (+V input) of the LUT-ELI-3PH must always be connected to at least one of the Emergency (Essential) Panels.
  • Page 7 Black (Common) • One LUT-ELI-3PH may be connected in parallel with up to 32 legacy panel interfaces. • Terminal 8 (+V input) of the LUT-ELI-3PH must always be connected to a PP-DV that is powered by emergency (essential) power. • The emergency switch on the legacy panel interface / controller must be in the right-most position ( ) for all Emergency (Essential) Panels.
  • Page 8 • The LUT-ELI-3PH may be connected across multiple panel links. The below conditions must be met if the LUT-ELI-3PH is connected to more than one panel link. - Only connect 24 VFW, Common, and the Sense line to the LUT-ELI-3PH. Do not connect MUX or _ to the LUT-ELI-3PH.
  • Page 9 • The Sense switch on the panel link translator must be in the right-most position ( ), “essential” for all Emergency Panels. • Terminal 8 (+V input) of the LUT-ELI-3PH must always be connected to 24 V- of a PP-DV that is powered by emergency (essential) power.
  • Page 10 • The switch position SW6 on the controller must be in the right-most position, ‘“Essential” on all Emergency Panels. • The LUT-ELI-3PH unit 24 V- input must always be connected to at least one of the Emergency Panels. S P E C I F I C AT I O N S U B M I T TA L...

  • Page 11: Energi Savr Node Units

    • Wire the power pack black wire (Common) to the LUT-ELI-3PH unit terminal 7 (Circuit Common) and to Energi Savr Node “Com” terminal of the Emergency Contact Closure Input. • Wire the signal wire from the LUT-ELI-3PH unit (terminal 1) to the Energi Savr Node “Emerg” terminal of the Emergency Contact Closure Input.
  • Page 12 DIN power module ensures that the system is compliant with 924. Follow the wiring diagram in the LUT-ELI-3PH for mains wiring. Use the diagram below to complete the installation. There can be up to 32 DIN power modules connected to one LUT-ELI-3PH unit.
  • Page 13 • Wire the power pack red wire (+24 V) to the LUT-ELI-3PH unit terminal 8 (+VFW). • Wire the power pack black wire (Common) to the LUT-ELI-3PH unit terminal 7 (Common) and to the Quantum bus supply terminal 5 (Common).
  • Page 14 Vive Systems A LUT-ELI-3PH unit can be used with a Vive hub for a system that is compliant with ULR 924. Follow the wiring diagram in the LUT-ELI-3PH unit for mains wiring. Use the diagram below to connect the LUT-ELI-3PH to the Vive hub.
  • Page 15 • Provide proper short-circuit and overcurrent protection at the distribution panel. Maximum circuit breaker installation of 20 A. • When normal power loss is detected at the LUT-ELI-3PH unit, all zones in the GRAFIK Eye QS units will go to their emergency states.
  • Page 16 LUT-ELI-3PH unit. Notice: Do not connect any voltage source to To 24 V- power the FACP inputs on the LUT-ELI-3PH unit. If voltage is provided by the FACP and connected to the LUT-ELI-3PH unit, it can damage the Supervisory Circuit (Normally Closed FACP Input) LUT-ELI-3PH unit.
