Lutron Electronics RadioRA RA-IR-KIT Installation Instructions

For Your Information ...
RadioRA RA-IR-KIT Installation Instructions
®
Overview
The RadioRA Infrared Interface (RA-IR) provides direct control of a RadioRA
®
universal remote control. Because infrared signals are line of sight, the RA-IR must be in a path of the users
remote control. An alternate means of getting the infrared signal from the remote to the RA-IR is via an IR exten-

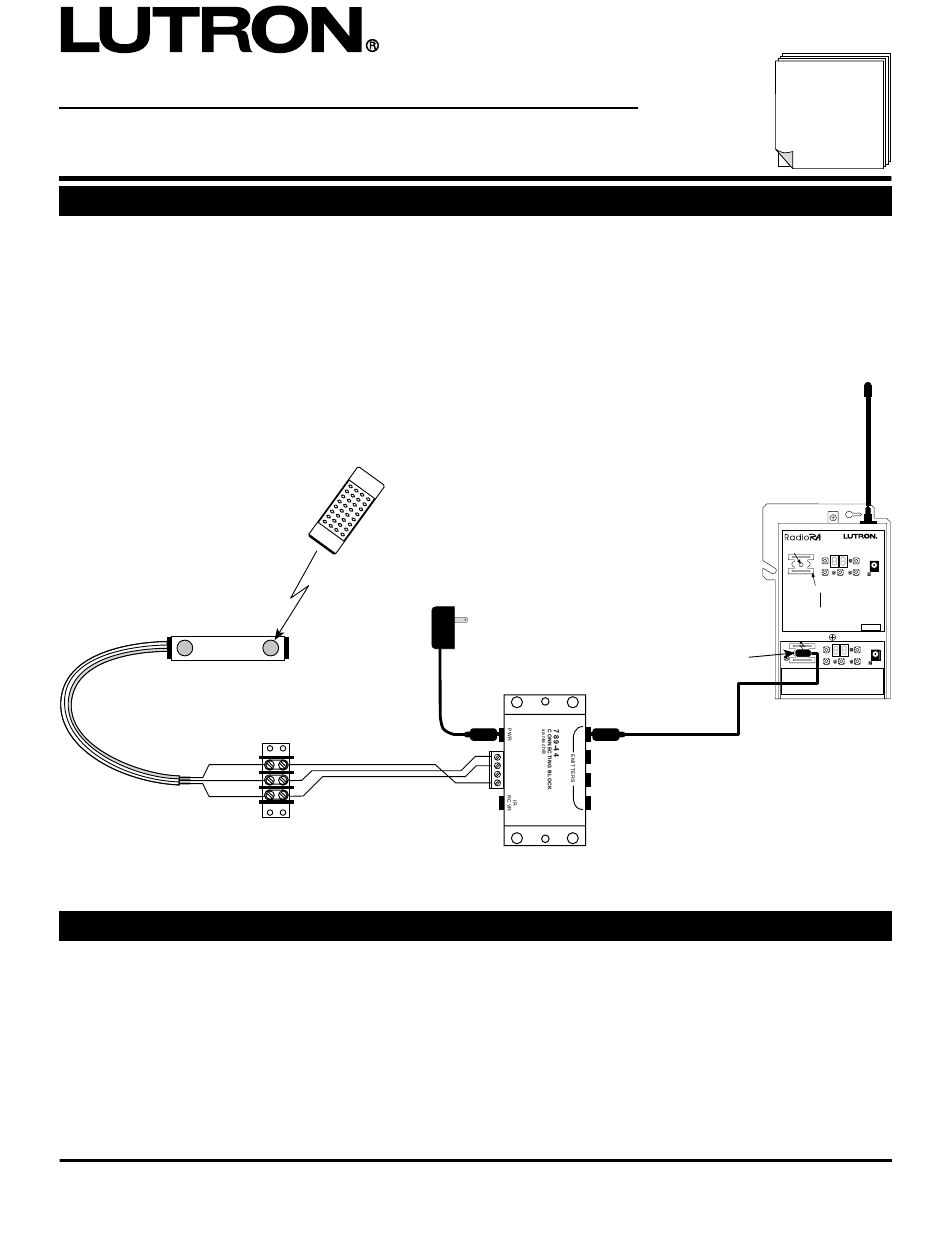

sion system. The IR extension system provides control of the RA-IR when placed in a remote location. An IR
extension system includes a small IR receiver, a connecting block, and a small IR emitter. The small IR receiver
can be mounted in inconspicuous places such as under shelves, behind speaker grills, or on cabinet ledges. A
wire can be run from the IR receiver to the connecting block and the emitter can be plugged into the connecting
block and placed inside the RA-IR. The connecting block, small IR emitter, and the RA-IR can be placed in a
remote location such as a closet.
RA-480B-80
IR Receiver
Equipment
RadioRA RA-IR-KIT
®
• RA-789-44WPS- Connecting Block with power supply.
• RA-480B-80- Infrared Receiver (black) – small (7/16" x 5/16" x 2 1/8"), compact fluorescent friendly IR receiver
with 7 foot 3 inch conductor cable.
• RA-283MW- Infrared mini-emitter - 1/2 inch emitter with a 6 foot wire to mini plug.
Need additional assistance? Call the Lutron Technical Support Center 1-800-523-9466
Remote Control
Button Press
IR Signal
Please provide exact model number when calling.
system through any learnable
®
RA-789-44WPS
Connecting Block
+12VDC
GND
STATUS
SIGNAL
APPLICATION
NOTE
#61
RA-IR
RadioRA
®
IR Interface
TM Coopersburg, PA USA
Infrered Interface
RA-IR
Attach Emitter
Here
Display
Assignment
Up Mode
IR Emitter
Down Select Level Set Power
Mounting Mode
Bracket
Connect wire tie here
to hold Emitter wire
Display
1–15 Scene Number In Advanced Programming Mode
16 ALL ON Assignment mode LED - Single Action
17 ALL OFF Level Set LED - Toggle
See the RA-IR Setup Guide for operating instructions.
For additional assistance call the Lutron Hotline: 1-800-523-9466
RadioRA is a trademark of Lutron Electronics Co. Inc.
This product may be covered by one or more of the following
U.S. patents: 5,736,965; 5,838,226; 5,848,054; 5,905,442
IR Signal
Assignment Mode
Up
RA-283MW
IR Emitter
Down Select Level Set Mode Power
Power
9V
AC IN
