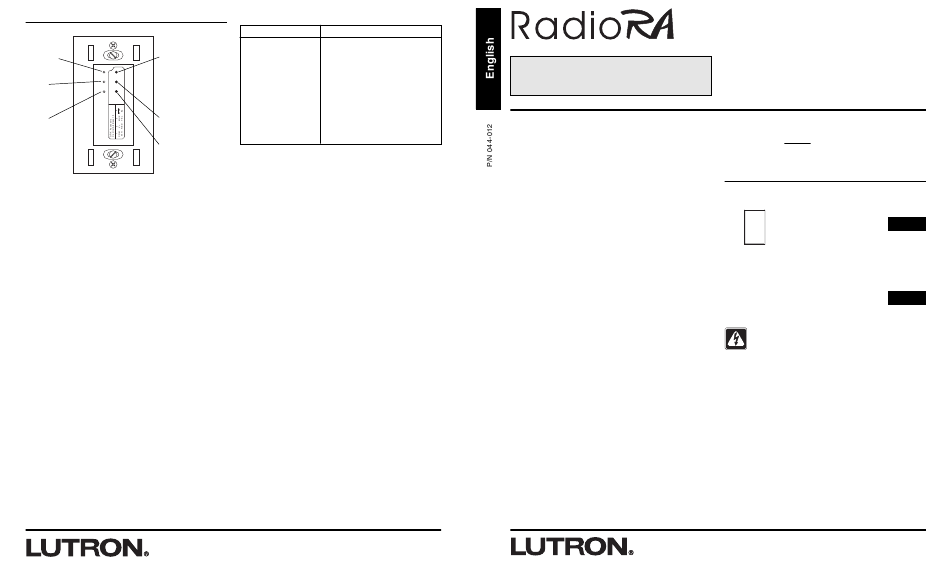

Lutron Electronics radioRA GRAFIK Eye RA-GRXI Installation Instructions

Operation
ON/OFF ON/OFF Button
LED Turns all GRAFIK
Eye Control Units
ON/OFF
®
60 Hz on system link ON
60 HZ
Frequency to Scene 1 and
50 HZ
LED OFF.
50 Hz 60 Hz Frequency
Frequency Select Button
LED
50 Hz Frequency
Select Button
For detailed instructions on programming
your RadioRA GRAFIK Eye Interface,
® ®
refer to the RadioRA Setup Guide that is
®
included with an RF Signal Repeater.
Technical Assistance
If you have questions concerning the installation or
operation of this product, call the Lutron Technical
Support Center. Please provide exact model number
when calling.
(800) 523-9466 (U.S.A., Canada, and the Caribbean)
Other countries call (610) 282-3800
Fax (610) 282-3090
Visit our web site at www.lutron.com
Troubleshooting
Symptom Possible Cause
GRAFIK Eye • No power available to unit.
®
Interface appears
• GRAFIK Eye unit on
®
not to be working.
system link not 3000 or
4000 Series.
• Improper wiring.
• Interface not programmed.
• Improper line frequency
selected.
FCC Information
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by Lutron
Electronics Co. could void the user's authority to operate this equipment.
Limited Warranty
Lutron will, at its option, repair or replace any unit that is defective in
materials or manufacture within one year after purchase. For warranty
service, return unit to place of purchase or mail to Lutron at 7200 Suter Rd.,
Coopersburg, PA 18036-1299, postage pre-paid.
THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES,
AND THE IMPLIED WARRANTY OF MERCHANTABILITY IS LIMITED TO
ONE YEAR FROM PURCHASE. THIS WARRANTY DOES NOT COVER
THE COST OF INSTALLATION, REMOVAL OR REINSTALLATION, OR
DAMAGE RESULTING FROM MISUSE, ABUSE, OR IMPROPER OR
INCORRECT REPAIR, OR DAMAGE FROM IMPROPER WIRING OR
INSTALLATION. THIS WARRANTY DOES NOT COVER INCIDENTAL OR
CONSEQUENTIAL DAMAGES. LUTRON'S LIABILITY ON ANY CLAIM
FOR DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE
MANUFACTURE, SALE, INSTALLATION, DELIVERY, OR USE OF THE
UNIT SHALL NEVER EXCEED THE PURCHASE PRICE OF THE UNIT.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state. Some states do not allow limitations on
how long an implied warranty lasts, so the above limitation may not apply to
you. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply
to you.
This product may be covered under one or more of the following U.S.
patents: 4,835,343; 4,954,768; 5,248,919; 5,399,940; 5,637,930; 5,736,965;
5,798,581; 5,838,226; 5,848,054; 5,905,442; 5,982,103; DES 353,798; DES
378,814; DES 389,461; DES 389,805; DES 395,037; DES 404,013; DES
422,969; DES 428,855; DES 436,579, DES 439,220 and corresponding
foreign patents. Lutron, GRAFIK Eye, and RadioRA are registered
trademarks of Lutron Electronics Co., Inc.
© 2001 Lutron Electronics Co., Inc.
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299, U.S.A.
Made and printed in the U.S.A. 8/01 P/N 044-012 Rev. A
®
W i re l e s s H o m e L i g h t i n g C o n t ro l
Installation Instructions for
GRAFIK Eye Interface
®
Please Leave for Occupant
Read all instructions completely before
installation.
Important Notes
1.
Install in accordance with all national and local
electrical codes.
2.
Do not paint controls or wallplates.
3.
Clean with a soft damp cloth only . Do not
use any chemical cleaners.
4.
Operate in ambient temperatures between 0°C
(32°F) and 40°C (104°F).
5.
Recommended wallbox depth is 2 / " minimum.
1
2
6.
This unit is compatible with GRAFIK Eye
®
and 4000 Series models only.
7.
The GRAFIK Eye Interface uses accessory
®
control address 15 on the GRAFIK Eye
®
system link. Ensure address 15 is not in use by
another GRAFIK Eye accessory control prior
®
to installing the GRAFIK Eye Interface.
®
8.
Only one GRAFIK Eye
Interface may be
®
installed per GRAFIK Eye system link.
®
Interface commands are sent to all GRAFIK
Eye units on the same system link.
®
Commands cannot solely be sent to an
individual GRAFIK Eye unit on a link of many
®
GRAFIK Eye units.
®
9.
For applications where GRAFIK Eye controls
®
are operated on generator power, the
GRAFIK Eye Interface may need to be
®
powered using a 24 VAC power supply. Call
the Lutron Technical Support Center (1-800-
523-9466) for further details.
10.
The range and performance of the RadioRA
System is highly dependent on a variety of
complex factors such as:
• Distance between system components
• Geometry of the home
• Construction of walls separating system
components
• Electrical equipment located near system
components
GRAFIK Eye Interface
®
RA-GRXI
RB-GRXI
Class 2 Device, 12 VDC or 24 VAC, 50/60 Hz
11.
Do not mix RadioRA "A" and "B" frequency products
®
within the same system. Products with different
frequencies are not compatible.
Installation Contents
Installation
Installing a RadioRA GRAFIK Eye Interface.
® ®
3000
Operation
Using the RadioRA GRAFIK Eye Interface.
® ®
DANGER
• Do not connect line voltage power to the
GRAFIK Eye Interface.
®
• Connecting line voltage power or
improper wiring can result in personal
injury or damage to the control or to other
equipment.
• All external control equipment must
maintain Class 2 isolation.
®
Page 2
Page 4
