Performing Infrared Monitoring - Brainlab EXACTRAC INFRARED MONITORING Clinical User Manual

6.4.2

Performing Infrared Monitoring

General Infrared monitoring enables you to constantly monitor the patient's position during treatment. You
Information can define tolerances for the patient's position, so that the system warns you if unacceptable devi-
ations occur.
You can also enable an automatic treatment beam interlock, so that the beam is automatically cut
off if the patient shifts out of position (see "Using the Beam Interlock" on page 69). This is an addi-
tional optional feature that requires an Novalis TX linac, or a Varian high energy linac with ExacTrac
EXGI based Gating.

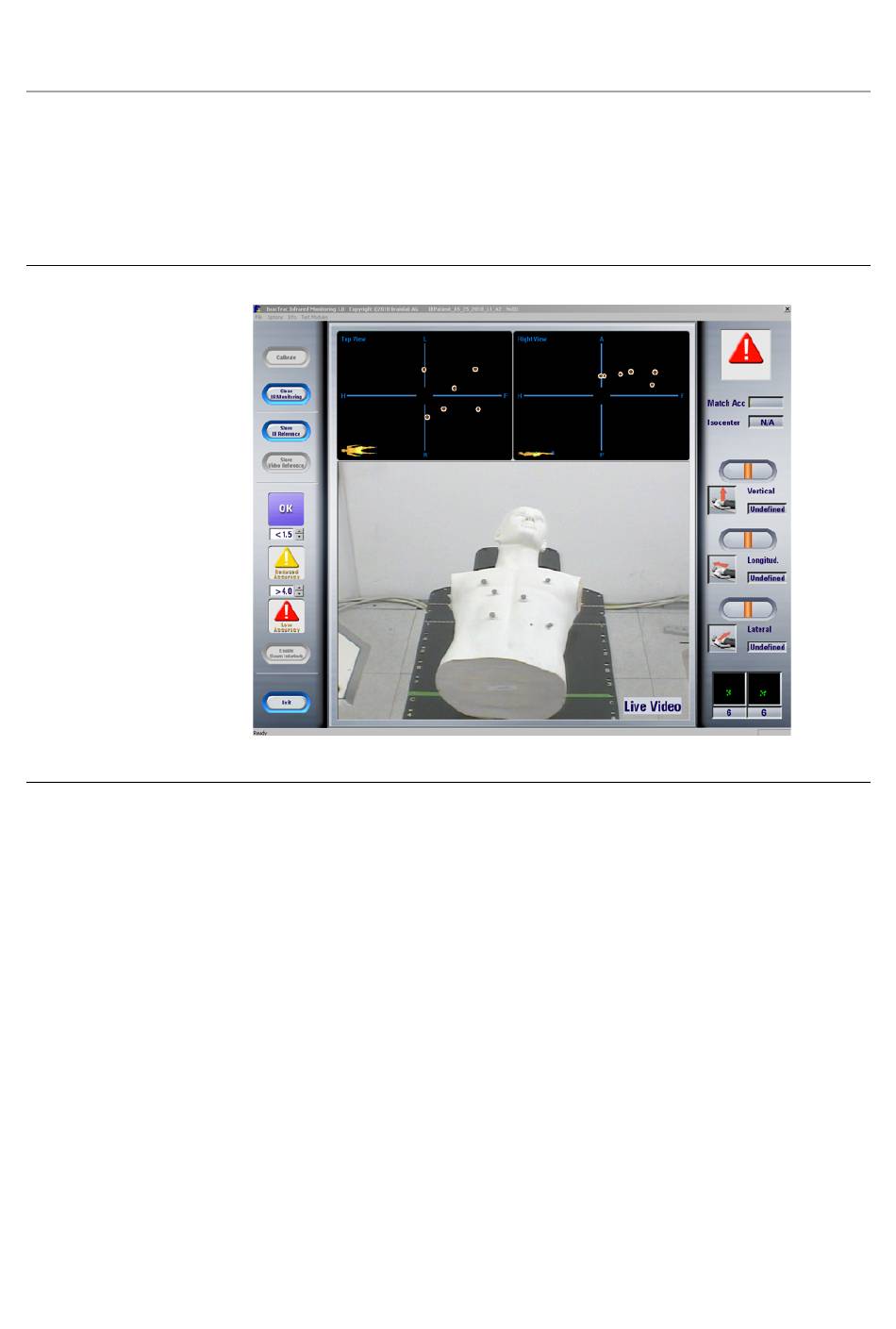

Initial Positioning
Screen
64
Figure 28
Clinical User Guide Rev. 1.1, ExacTrac Infrared Monitoring Ver. 1.0
