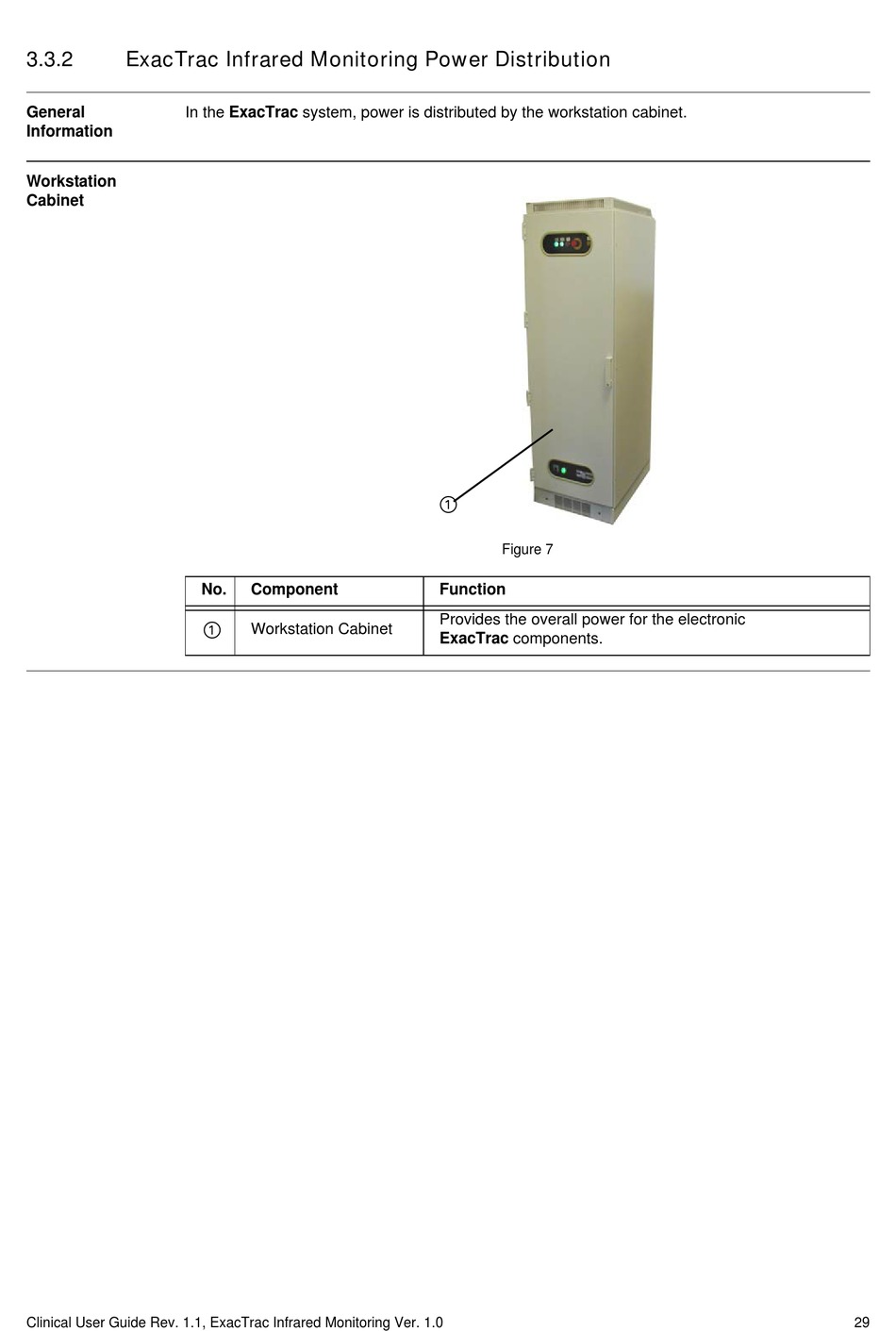

3.3.2
ExacTrac Infrared Monitoring Power Distribution
General
In the ExacTrac system, power is distributed by the workstation cabinet.
Information
Workstation
Cabinet
Clinical User Guide Rev. 1.1, ExacTrac Infrared Monitoring Ver. 1.0
No.
Component
a
Workstation Cabinet
a
Figure 7
Function
Provides the overall power for the electronic
ExacTrac components.
29
