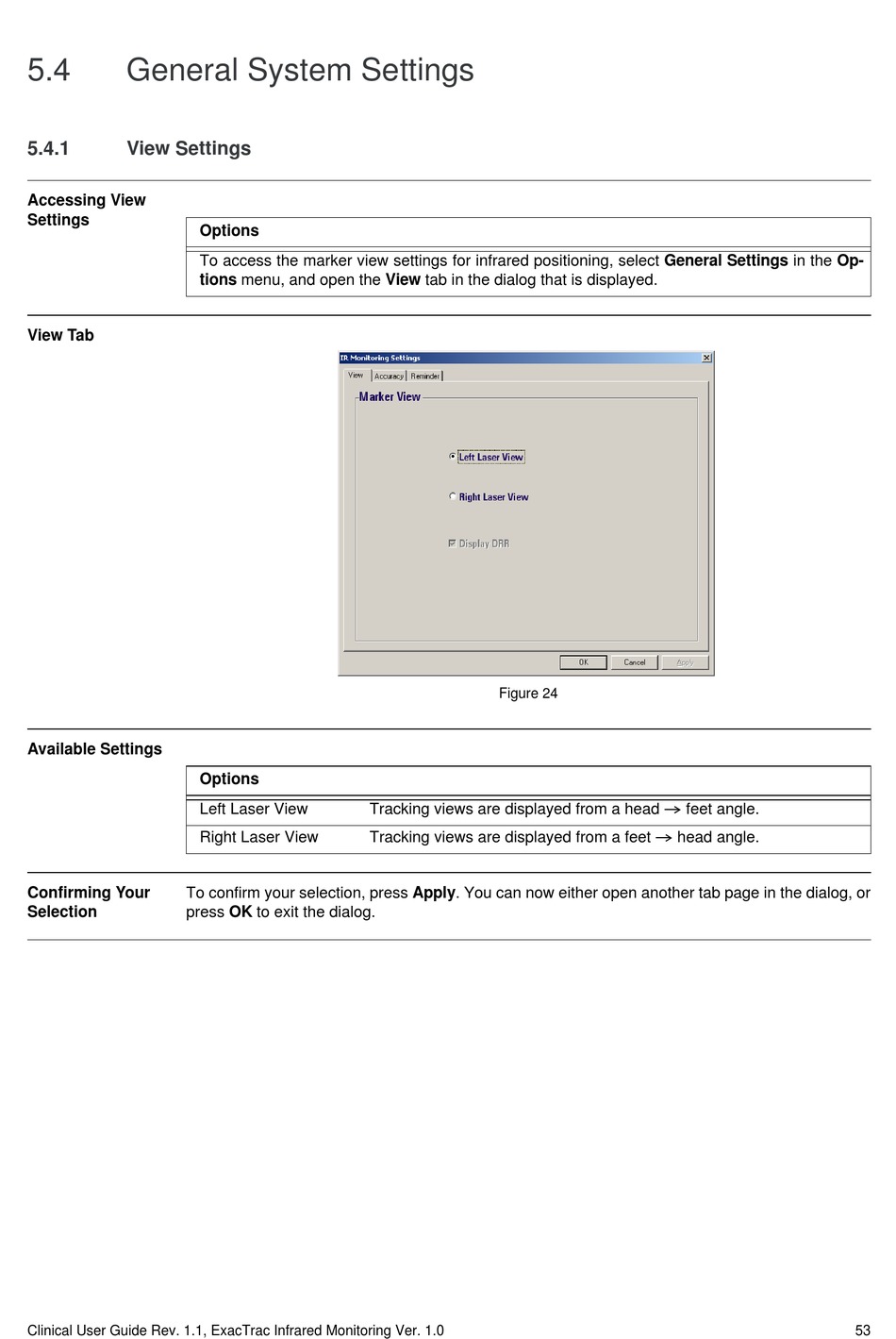

General System Settings; View Settings - Brainlab EXACTRAC INFRARED MONITORING Clinical User Manual

5.4

General System Settings

5.4.1

View Settings

Accessing View
Settings
View Tab
Available Settings
Confirming Your To confirm your selection, press Apply. You can now either open another tab page in the dialog, or
Selection press OK to exit the dialog.
Clinical User Guide Rev. 1.1, ExacTrac Infrared Monitoring Ver. 1.0
Options
To access the marker view settings for infrared positioning, select General Settings in the Op-
tions menu, and open the View tab in the dialog that is displayed.
Options
Left Laser View
Right Laser View
Figure 24
Tracking views are displayed from a head
Tracking views are displayed from a feet
q
feet angle.
q
head angle.
53
