14

Reference Section

14.1

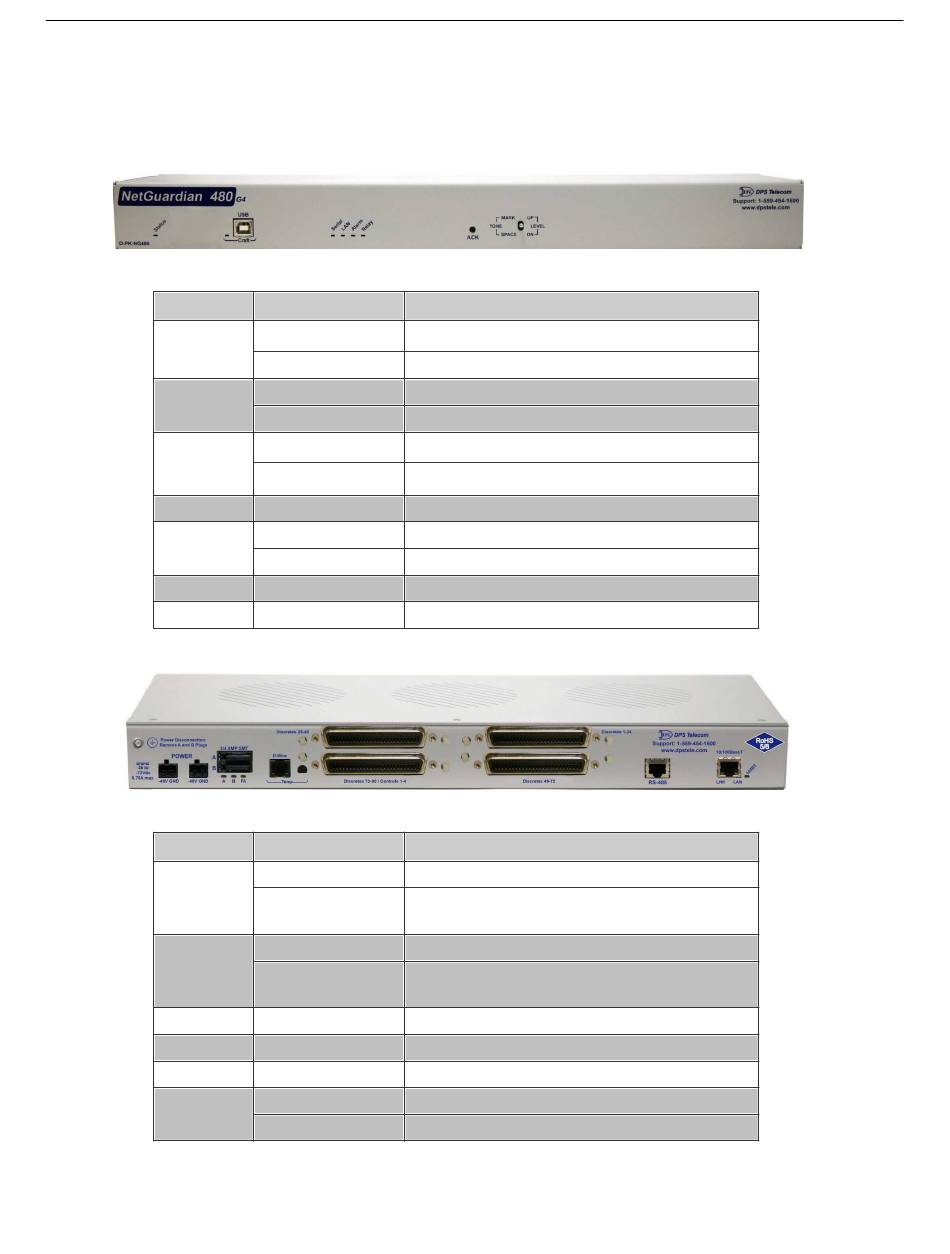

Front and Back Panel LEDs

LED
tatus
S
Craft
Serial
LAN
Alarm
Relay
Tune 202
LED
A
B
FA
LNK
LAN
100BT
Front panel LEDs
Status
Blinking Green
NetGuardian application running
Blinking Red
Boot Loader is running
Flashing Green
NG data transmit over craft port
Flashing Red
NG data receive over craft port
Blinking Green
Back-panel serial port transmit
Blinking Red
Back-panel serial port receive
Blinking Green
LAN activity
Flashing Red
New alarm
Solid Red
Standing alarm acknowledged
Solid Green
1 or more control relays latched
Solid Green
NG is in 202 modem Tuning Mode
Front Panel LED Descriptions
Back panel LEDs
Status
Solid Green
Power supply A OK
No voltage or +24V and GND leads reversed on
Off
Power supply A
Solid Green
Power supply B OK
Off
No voltage or +24V and GND leads reversed on
Power supply B
Solid Red
Blown Fuse
Solid Green
LAN connected
Blinking Yellow
LAN Activity
Solid Green
LAN connection speed is 100BaseT
Off
LAN connection speed is 10BaseT
Back Panel LED Descriptions
Description
Description
61
