Twisted Hobbys Veloxity Manual page 29

Immediately join the to pieces together.
Make sure that when contact is made
that you are in the correct position, the
bond will be instant.
Back the screw out about 2 or 3 three
turns so that it clears the thickness of
the LG strut. Install the strut and
tighten the screw.
Rev: 2015.11.30.v01a

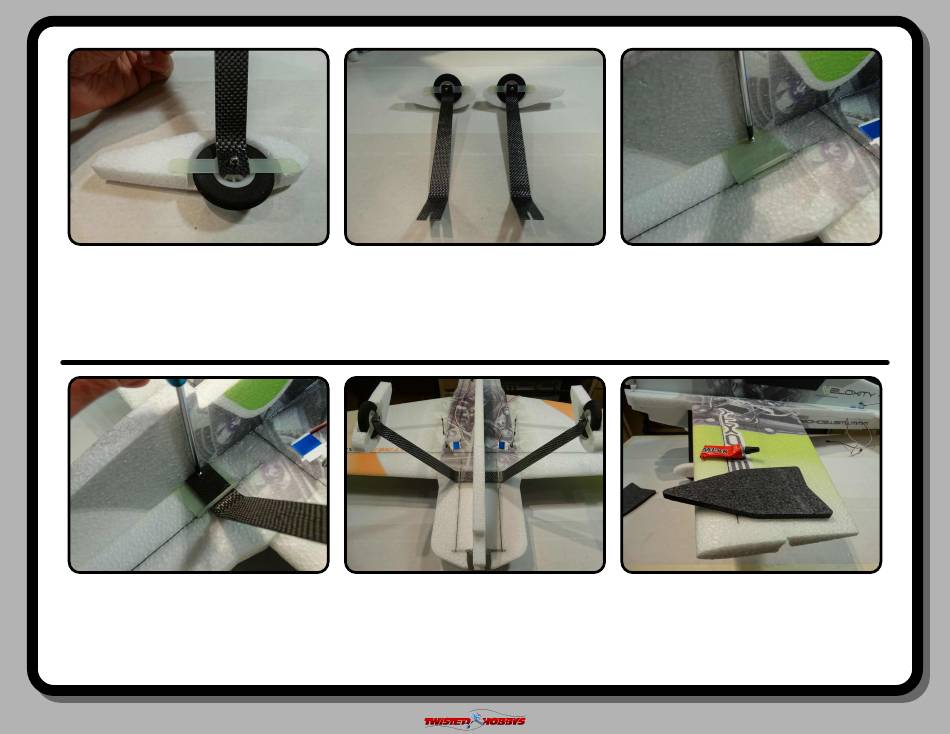

Repeat for the other side. You should
end up with a left and right as pictured
above.
Repeat for the other side. If necessary
loosen the screws and adjust from side
to side to get the LG even and re-
tighten.
Locate the two shorter self tapping
screws. Tap the screw into the LG base
plate. Work it in slowly, do a half turn
or so, reverse, thread back in a little
more, etc until fully seated.
SFG's will be joined to the end of the
wings with the Tack Up Method. Apply
a skim coat of Welders to both mating
surfaces. Note that the carbon slits face
inward.
page 29
