Twisted Hobbys Veloxity Manual page 18

Once the glue has tacked up, bring the
two piece togehter.
Put a little dab of Welders on the under
side of the stock arms and then fasten
the extensions with the screws aquired
from the servo bags. Snip off the extra
length with some ush cutters
Rev: 2015.11.30.v01a

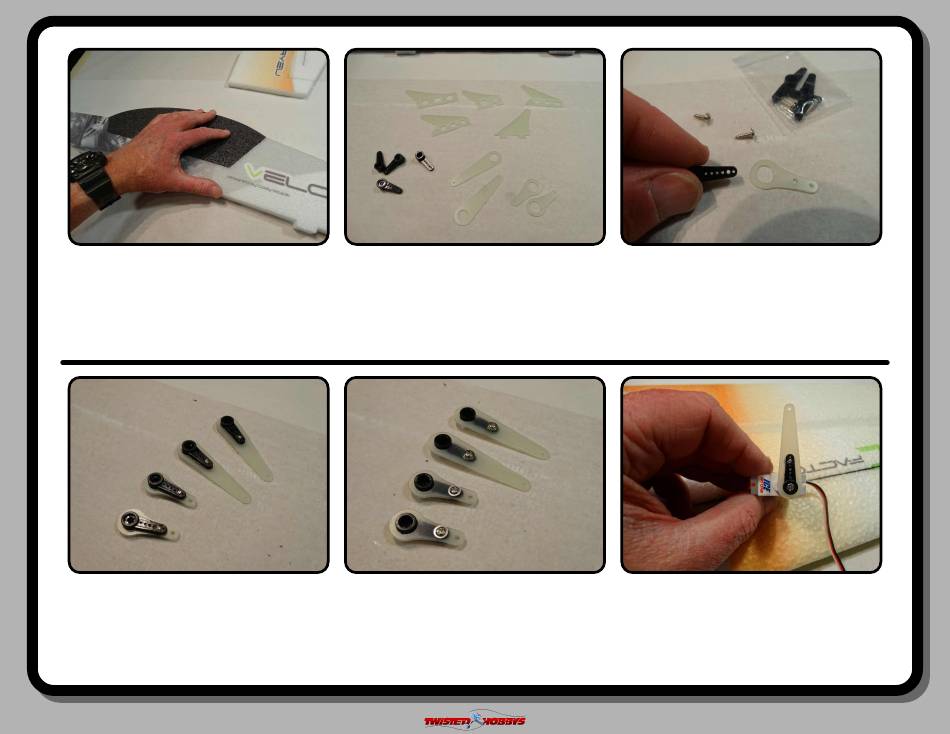

Locate all the items pictured above.
Deburr the break out tabs and roughen
up the bases of the horns and tail skid.
Other side of the nished horns.
Enlarge the second in servo horn hole
to .060" diameter and match drill a
.080" dia hole in the berglass servo
extension arm. Repeat this for all four
arms. Get 4 screws from the servo bags.
Make sure you servo is electronically
centered, and attach the horns as need
for each servo. Right aileron servo is
shown above, and will be the subject of
the next couple pictures / steps.
page 18
