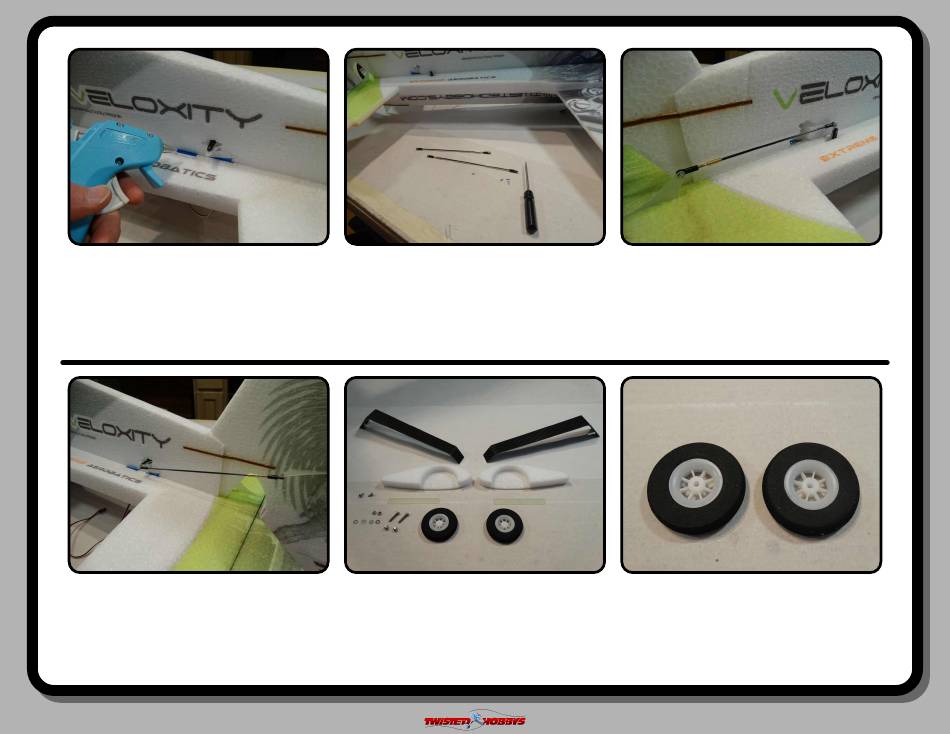

Now is a good time to apply a bead of
low temp hot glue to any places where
the servos meet the foam.
Repeat the process for the rudder
control rod. With the servos centered,
ne adjustment can be made from the
threaded end ball link to get the control
surfaces perfectly positioned.
Rev: 2015.11.30.v01a
Get the tail control rods that were built
in an earlier step and the remaining
four little slotted head screws
Landing gear will be assembled next,
locate all the items pictured above.
Install the elevator control rod as
shown. Note that the ball links have a
at anged side, this is the side that
mates with the horns. Apply a little
thread locker and install the screws.
Drill the hubs of the wheels out to
.125", using a drill press is
recommended to ensure that the hole
stays true to the axis of rotation.
page 27
