Twisted Hobbys Veloxity Manual page 22

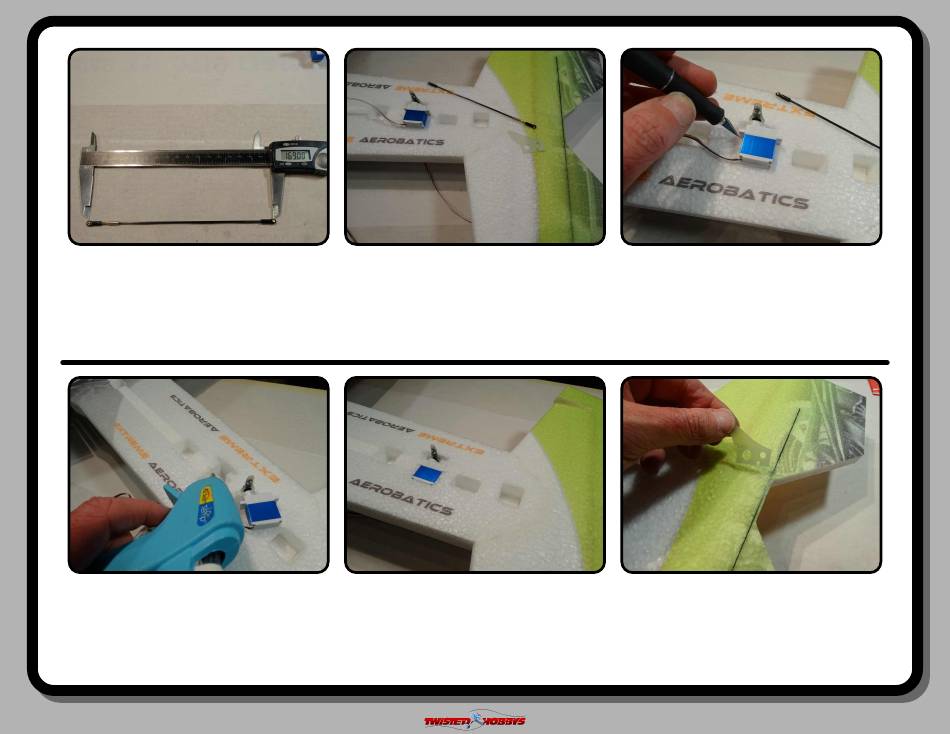

Attach a ball link to the free end, again
sanding a little to get the link to slide
on far enough so that you get 169mm
form center of hole to center of hole.
Glue with thin CA and Kicker
Apply a little low temp hot glue to the
sides of the hole and install the servo.
Servo lead should stick thru
underneath, install the servo quicky,
the hot glue sets fast.
Rev: 2015.11.30.v01a
Prepare to install the Elevator servo,
control horn and control rod. The
elevator road is the short of the two
that were just built. Make sure the
servo is electronically centered.
Once glued and installed, should look
like the above picture.
Cut slits for the servo tabs like what
was done with the aileron servos, and
test t to make sure it will sit ush with
the near surface.
Now install the elevator control horn.
Note that the notch is to clear the spar
that was installed on the underside.
Test t and clean out the pre-cut slot if
needed and install with Welders.
