Twisted Hobbys Veloxity Manual page 19

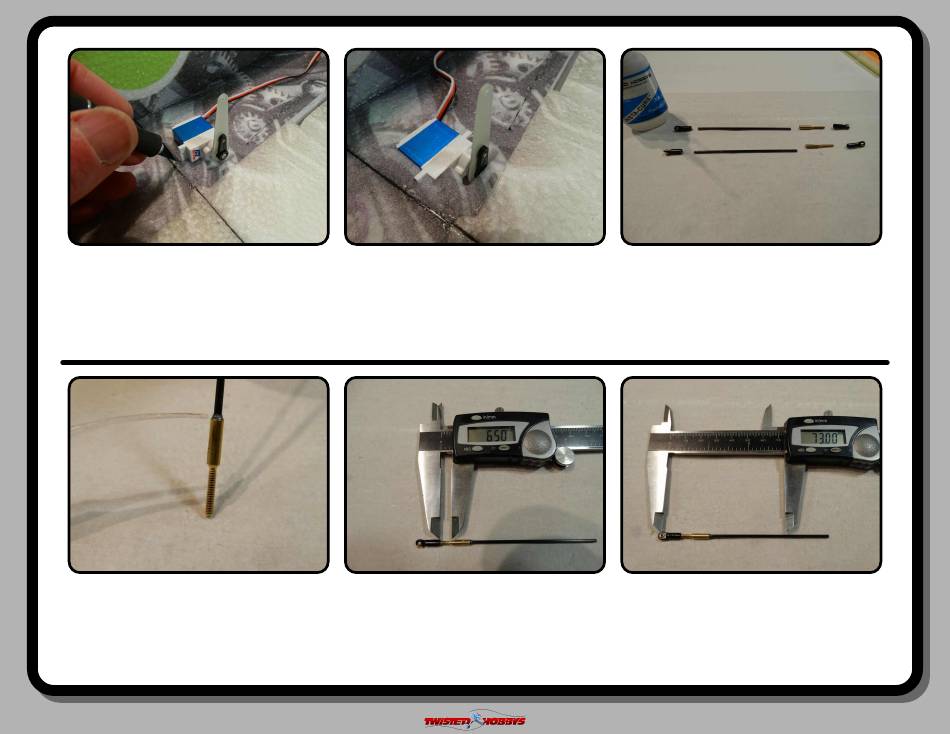

All the servo cut outs need to have slits
added for the servo tangs. Position the
servo directly over the hole and make a
slit in the foam where the tang needs to
insert. Do this for both tangs.
Slide a ferrule onto one end of the
carbon rod make sure it is fully
engaged, then apply a drop of CA to the
open end and let it wick in. Set with
Kicker
Rev: 2015.11.30.v01a
Press the servo in, making sure it goes
all the way ush. It may be necessary
to make a little relief in the foam for the
servo cable. No Glue yet. It will need to
be remove in a couple steps.
Thread the ball link onto the ferrule
until there is approx 6.5mm between
the shoulder of the ferrule and the open
end of the ball link.
Locate the two shortest 1.8mm dia
carbon rods (they may be a little
longer), 2 brass ferrules and 4 ball
links. Thin CA will be used for
assembly.
From the CENTER of the hole of the
bass ball in the ball link, measure off
73mm and cut the rod. Use a rolling
action with a hobby knife to score the
rod, then snap apart at that position.
