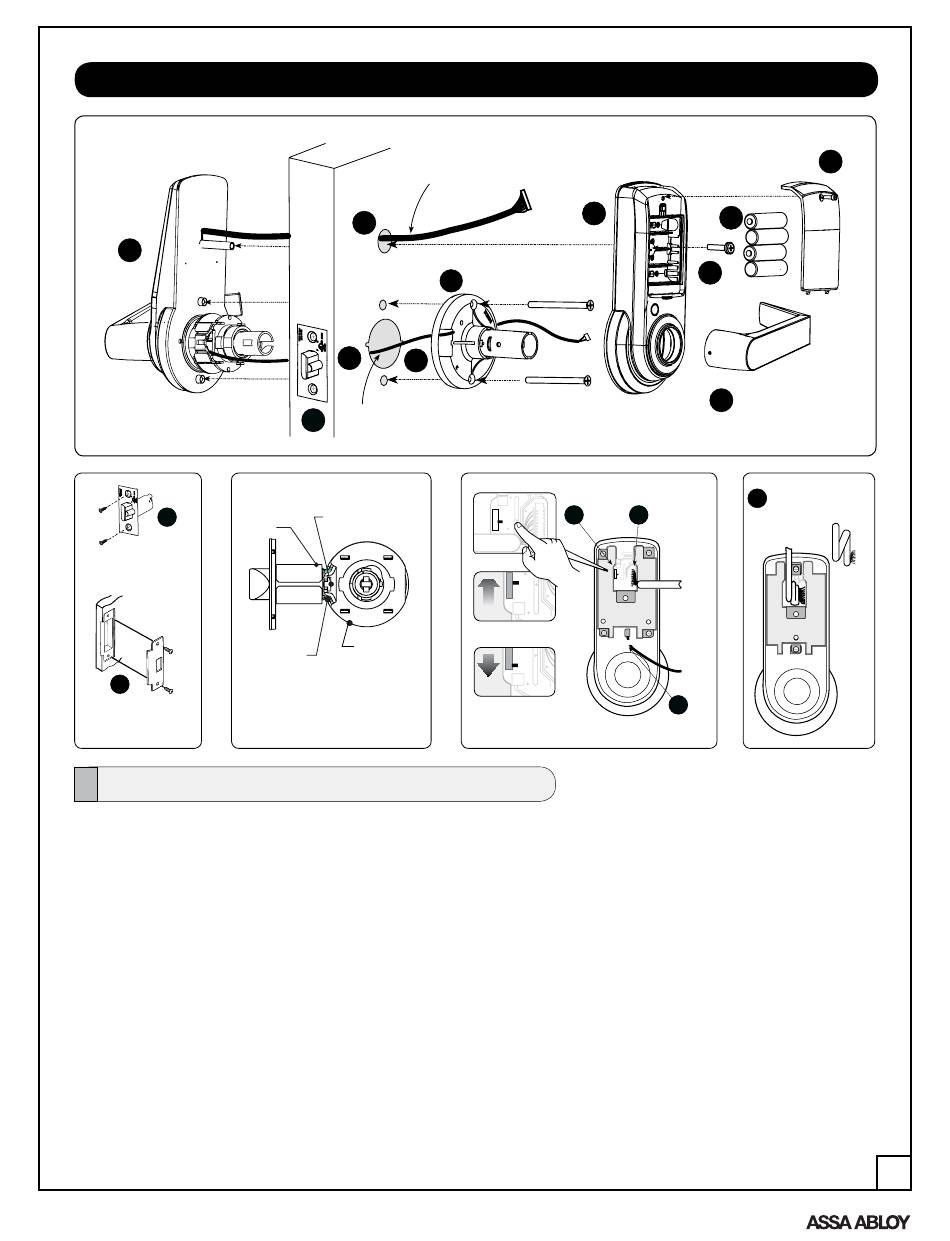

Install Lock - Assa Abloy Yale inTouch Installation And Programming Instructions

Outside Assembly
3
1
(2) 8-32 x 3/4"
Flat Head
Combination Screws
2
(2) 8-32 x 3/4"
Flat Head
Combination Screws
Directions
1. Install latchbolt in door. Be sure that bevel
edge of bolt faces strike. Attach with two
screws supplied.
2. Install strike on the door frame.
3. Insert outside assembly through door, making
sure that the lock body frame hooks latch case
and retractor engages bolt tail(s). DO NOT
FORCE (See Detail A above). If lock body
does not engage latch easily, check door
preparation for errors.
a. Guide motor cable (red and black wires)
through 2-1/8" diameter hole.
b. Guide touchscreen cable through 3/4"
diameter upper hole.
An ASSA ABLOY Group brand

INSTALL LOCK

3b
3a
4
Motor Cable
1
Retractor
Engages
Latch
Bolt Tail(s)
Frame
Lock Body
Engages
Latchcase
Detail A
Inside Assembly
Touchscreen
Cable
9
5
Support Assembly Screws
(2) 10-32 x 2-1/2" Flat
Head Machine Screws
Easy /
Advanced
8
Mode
EASY
EXT-PWR / REMOTE /
ADVANCED
EXT-PWR / REMOTE /
4. Guide motor cable through rectangular
hole on inside support assembly.
5. Slide inside support assembly over outside
assembly, lining up top and bottom screw
guides with holes in door. Secure both
assemblies with (2) 10-32 x 2-1/2" flat head
machine screws. Do not over-tighten.
6. Attach motor cable connector to the
inside escutcheon PC board header
marked "MOTOR."
7. Attach the touchscreen cable connector to
the inside escutcheon PC board header
as illustrated.
8. Select EASY or ADVANCED Mode using the
switch on the back of the PC board.
Escutcheon Screw
(1) 10-32 x 3/4" Pan Head
With Star Washer Screw
12
10
11
Touchscreen Cable
9b
Touchscreen
Routing
Cable
7
Connector
"Z" Fold
MOTOR
6
MOTOR
P/N 80-9150-0065-010 Rev B
13
