Installation; Components And Tools - Assa Abloy Yale inTouch Installation And Programming Instructions

In the box, you should find. . .
Quick Start Instructions
Installation Instructions
Door Marker
Outside Touchscreen Assembly

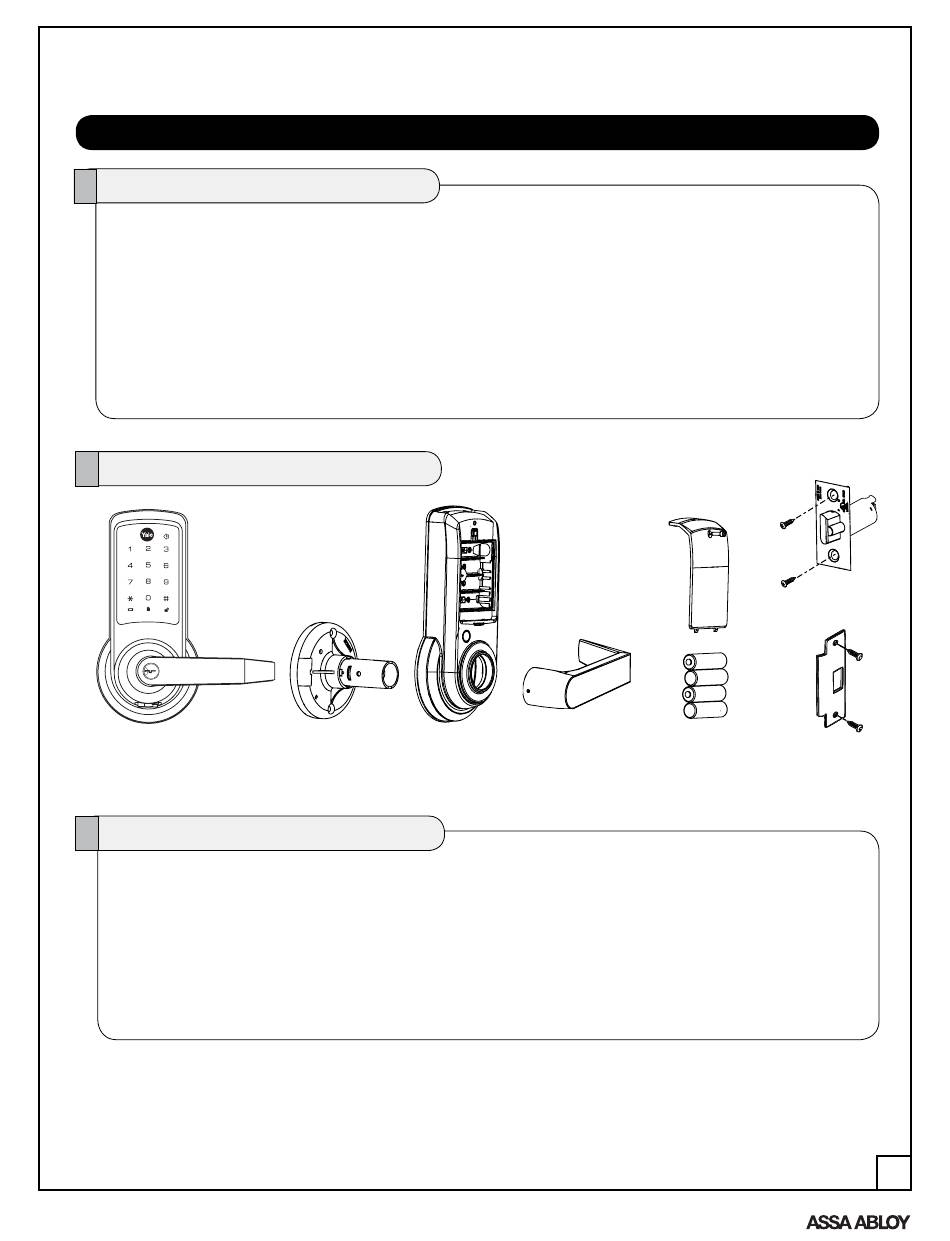

Parts Illustrations
Outside
Touchscreen
Assembly
Tools
Door Prep
2-1/8" (54mm) hole saw
ƒ
ƒ 1" (26mm) boring bit
5/16" (8mm) drill bit
ƒ
ƒ 7/64" (2.5mm) drill bit
Chisel & hammer
ƒ
An ASSA ABLOY Group brand

INSTALLATION

COMPONENTS AND TOOLS

Inside Escutcheon Assembly:
• Inside Support Assembly
• Inside Escutcheon
• Inside Lever Handle
• Battery Cover
Inside Inside
Escutcheon
Support
Assembly
4 AA Alkaline Batteries
Latchbolt
Strike
Allen Wrench 3/32" (2.5mm)
Lever Removal Tool
Screw Pack (7 screws)
2 Keys (If cylinder included)
Inside
Lever
Handle
Lock Installation
#2 phillips screw driver
ƒ
Lever removal tool (supplied)
ƒ
3/8" or 1/2" drill
ƒ
3/32" Allen wrench (supplied)
ƒ
Battery Cover Latchbolt
4 AA Alkaline Strike
Batteries
P/N 80-9150-0065-010 Rev B
3
