Before you begin
DOWNLOAD
THE BILT APP
for step-by-step installation
instructions & to register
your product
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO

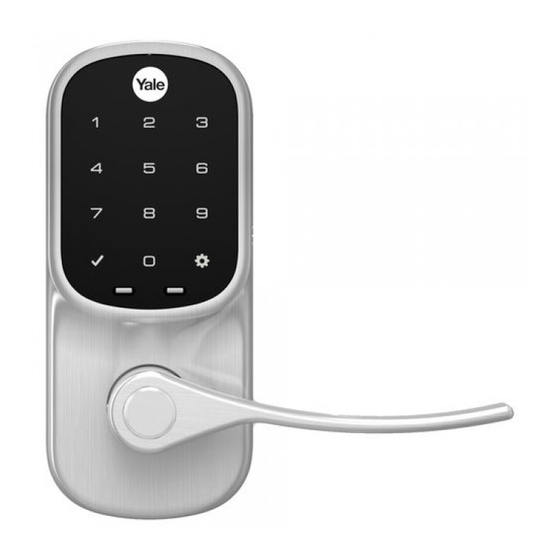

Yale Assure Lever Key Free Touchscreen
®
™
Installation and Programming Instructions
®
(YRL256)
THE PRODUCT AND VOID THE FACTORY WARRANTY
1
P/N YRL-LKFTSINSTL-FUL Rev A
x2
#8-32 x 5/16"
Machine screws
x4
#7 wood & #8-32
machine x 20mm
Combination screws
Battery Cover
Template
Levers
Key Free
Cylinder
Optional
Smart Module*
*Yale Smart Module
is not included with
YRL236-NR models.
Strike Plate
Interior Mounting Plate
Interior Lock
x2
M4 x 22mm
Pan head machine
screws
AA Alkaline
Batteries
Key
Latch
Battery Cover

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Yale Real Living Assure Lever YRL256 and is the answer not in the manual?

Questions and answers

Related Manuals for Assa Abloy Yale Real Living Assure Lever YRL256

Summary of Contents for Assa Abloy Yale Real Living Assure Lever YRL256

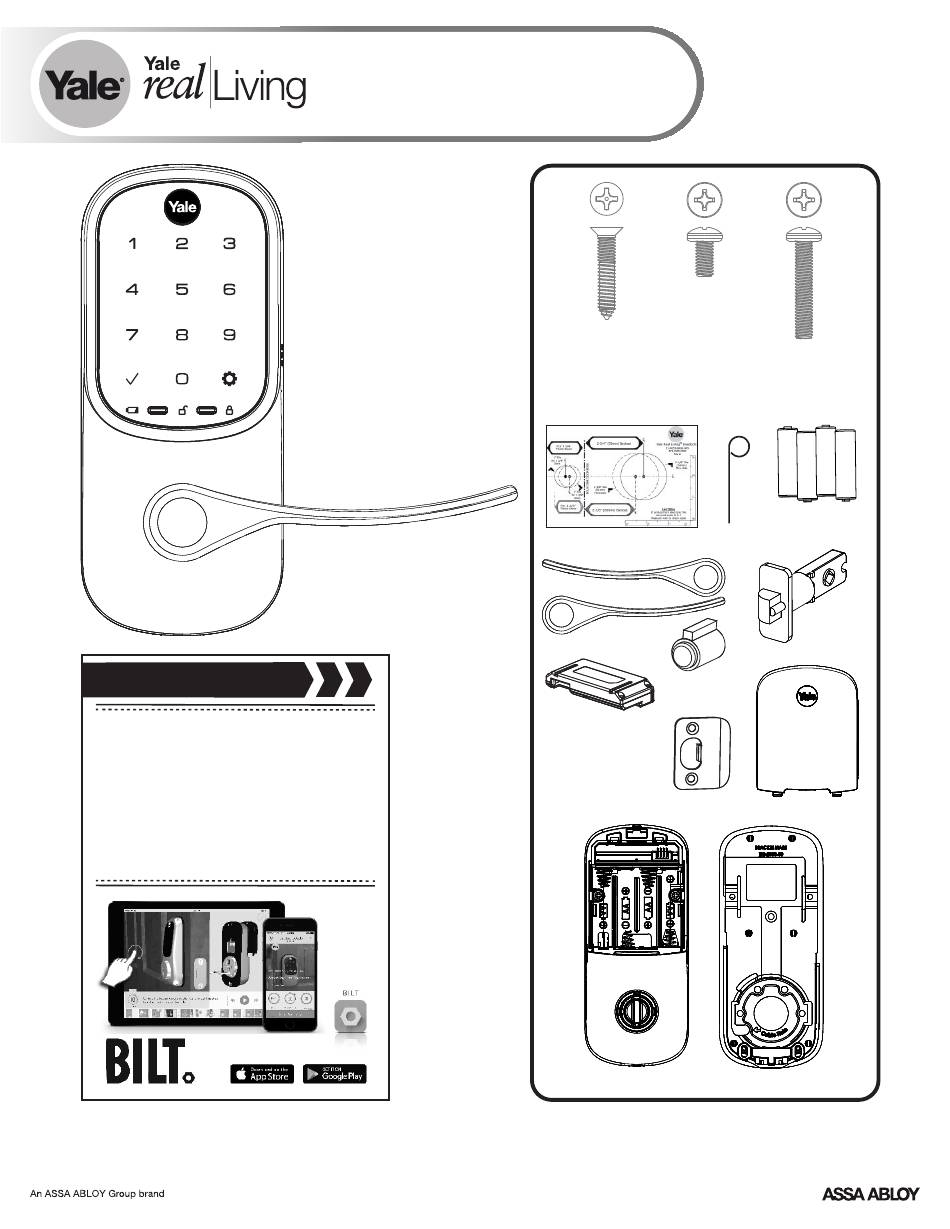

  • Page 1 Yale Assure Lever Key Free Touchscreen ® ™ Installation and Programming Instructions ® (YRL256) #8-32 x 5/16" Machine screws #7 wood & #8-32 machine x 20mm M4 x 22mm Combination screws Pan head machine screws AA Alkaline Batteries Battery Cover Template Levers Latch...

  • Page 2: Preparing To Install

    Preparing to Install Tools Needed Standard Phillips Head Screwdriver Tools necessary only for new doors or adjusting existing prep. Template Tape Pencil Measure Drill Wood Mortise Chisel Utility Knife Level P/N YRL-LKFTSINSTL-FUL Rev A...

  • Page 3: Checking Measurements

    Checking Measurements 2-3/8" or 2-3/4" (60mm or 70mm) Backset 2-1/8" (54mm) Diameter 1-3/8" or 1-3/4" (35mm or 44.5mm) Door Thickness 1" (25mm) Diameter P/N YRL-LKFTSINSTL-FUL Rev A...
  • Page 4 Determining Door Handing Inswinging Door Outswinging Door Interior Left Hand Right Hand Interior Reverse Reverse Left Hand Right Hand Exterior Exterior Face a door swinging open Face a door swinging open away from you. toward you. If it swings open to the right, If it swings open to the right, it it is a right hand door.
  • Page 5 Preparing Door & Frame Necessary for new doors or adjusting existing prep. 2-1/8" (54mm) Dia. 2-3/8" (60mm) 1" (25mm) 2-3/4" (70mm) Dia. Backset Drill holes 1/2 way through door then complete from other side to prevent splitting. Frame Frame Inside of Door 1"...
  • Page 6 Installing Latch & Strike Plate Right Hand Installation Shown 2-3/8" through bolt posts default PULL 2-3/4" through bolt posts Note: Adjustment based on backset optional Outside of Door Frame *Backset *2-3/8" (60mm) 2-3/4" (70mm) P/N YRL-LKFTSINSTL-FUL Rev A...
  • Page 7 Installing Touchscreen Right Hand Installation Shown “TOP” mark must be on top surface and tailpiece in vertical position. Incorrect orientation will cause lock to fail. Outside of Right Hand Door Inside of Right Hand Door P/N YRL-LKFTSINSTL-FUL Rev A...
  • Page 8 Installing Interior Mounting Plate Right Hand Installation Shown Inside of Right Hand Door Inside of Right Hand Door P/N YRL-LKFTSINSTL-FUL Rev A...
  • Page 9 Attaching the Cable Assembly Right Hand Installation Shown Ensure cable is securely fastened into adapter. Inside of Right Hand Door Use cable hooks for proper cable routing. P/N YRL-LKFTSINSTL-FUL Rev A...
  • Page 10 Installing Interior Lock Right Hand Installation Shown Inside of Right Hand Door “Click” P/N YRL-LKFTSINSTL-FUL Rev A...
  • Page 11 Installing Exterior Key Free Cylinder Outside of Right Hand Door Latch Key free cylinder must be installed with bar away from latch. P/N YRL-LKFTSINSTL-FUL Rev A...
  • Page 12 Installing Exterior Lever Outside of Right Hand Door Press pin while installing lever so lock is not damaged. P/N YRL-LKFTSINSTL-FUL Rev A...
  • Page 13 Installing Interior Lever Inside of Right Hand Door Press pin while installing lever so lock is not damaged. P/N YRL-LKFTSINSTL-FUL Rev A...
  • Page 14 Testing Mechanical Operation Test interior and exterior operation with door open. Outside of Right Hand Door Outside of Right Hand Door Test thumbturn and both levers in locked and unlocked positions. If operation fails, check installation beginning with Step 3 and refer to Hardware Troubleshooting.
  • Page 15 Installing Optional Smart Module (if included) Inside of Right Hand Door Batteries must not be installed prior to inserting and/or removing module. NOTE: If a Smart module was included with your lock, it is in a separate box with additional module installation instructions.
  • Page 16 Installing Batteries & Cover "Welcome to Yale Real Living." Inside of Right Hand Door Congratulations, you've installed the Assure Lever Key Free Touchscreen ( YRL256 Yale ® ™ Programming Instructions will help you customize your product. P/N YRL-LKFTSINSTL-FUL Rev A...
  • Page 17 Testing Touchscreen Operation Test with door open. A Master Enty Code must be created upon installation or after resetting the lock to factory default. Programming and use of lock is not possible until this step has been successfully completed. See of Programming Instructions below.
  • Page 18 Resetting Lock to Factory Default Interior Lock Reset Button When resetting the lock, all user codes, including the Master Entry Code*, are deleted. All programming features are reset to original default settings. See “Factory Settings”. 1. Remove the battery cover and batteries. 2.

  • Page 19: Factory Settings

    Factory Settings Settings Factory Setting Registration required* Master Entry (PIN) Code Automatic Re-lock Disabled Automatic Re-lock Time 30 Seconds Inside Indicator Light Disabled (Off) Language Setting Mode English Lockout Mode Disabled One Touch Locking Enabled Shutdown Time 60 Seconds Volume Setting Wrong Code Entry Limit 5 Times *The Master Entry Code must be created prior to any other programming of the lock.

  • Page 20: Hardware Troubleshooting

    Hardware Troubleshooting Cycle lock in both the locked and unlocked positions. If problems are found: Tailpiece and spindle will not mate and fit into the interior escutcheon a. Ensure that your door is between 1-3/8" and 1-3/4" thick b. Ensure that the square shaped spindle has “Top” writing and arrow facing upwards c.

  • Page 21: Programming Instructions

    Programming Instructions Low Battery Speaker Indicator Lockout Mode Lock Activation Master Entry Code must be created before any further programming. Max User Codes = 250 with Smart Module and 25 without. P/N YRL-LKFTSINSTL-FUL Rev A...
  • Page 22 Creating Master Entry Code Creating a Master Entry Code must be performed upon installation or after resetting the lock to factory default. Programming and use of lock is not possible until this step has been successfully completed. "Register Master Code. Press the gear key to continue."...
  • Page 23 Creating User Entry Codes Master Entry Code must be created first. *Max user codes = 250 with Smart Module and 25 without. "Menu Mode, enter number, press the gear key to continue." Enter Master Entry Code Press Press Enter 4-8 digit Entry Code Press Press Press...

  • Page 24: Code Chart

    Unlocking Door with Entry Code Enter Entry Code Press Code Chart Duplicate if necessary Entry Code Management Entry Code Master: User Name: P/N YRL-LKFTSINSTL-FUL Rev A...
  • Page 25 Definitions All Code Lockout Mode: This feature is enabled by the Master Code. When enabled, it restricts all user (except Master) entry code access. When attempting to enter a code while the unit is in Lockout, the RED locked padlock will appear on the screen. Automatic Re-lock Time: After a successful code entry or manual unlock, the lock will automatically re-lock after each unlock in an effort to keep your home secure.
  • Page 26 Feature Programming Through Menu Mode Using Master Entry Code* 1. Touch Yale logo or screen with back of hand or palm to activate. 2. Enter 4-8 digit master entry code* followed by key. Lock Response: "Menu mode, enter number, press key to continue."...

  • Page 27: Programming Troubleshooting

    Programming Troubleshooting Symptom Suggested Action P/N YRL-LKFTSINSTL-FUL Rev A...
  • Page 28 Ÿ Consult the dealer or an experienced radio/TV technician for help. Ÿ Warning: Changes or modifications to this device, not expressly approved by ASSA ABLOY Residential Group, Inc. could void the user's authority to operate the equipment. Industry Canada: This Class A digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.
  • Page 29 Yale Z -Wave Plus Module ® ® ® Installation and Programming Instructions Installing the Z -Wave Plus Module ® IMPORTANT: the batteries must be removed prior to removing and/or inserting the network module: • Remove battery cover and batteries. • Remove and/or insert Network Module. •...
  • Page 30 Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company. Yale® and Yale Real Living® are registered trademarks of Yale Security Inc., an ASSA ABLOY Group Company. Other products’ brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only.
  • Page 31 Yale ZigBee Module ® ® ® Installation and Programming Instructions Installing the ZigBee Module ® IMPORTANT: the batteries must be removed prior to removing and/or inserting the network module: • Remove battery cover. • Remove batteries. • Remove and/or insert network module. •...
  • Page 32 Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company. Yale® and Yale Real Living® are registered trademarks of Yale Security Inc., an ASSA ABLOY Group Company. Other products’ brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only.
