Assa Abloy Yale SIMPLICITY Mounting Instructions

Yale
®
HAND OF DOOR ACCORDING TO ENGLISH PRACTICE
RIGHT - HAND DOOR LEFT - HAND DOOR
OUTSIDE OUTSIDE OUTSIDE OUTSIDE
DOOR OPENING DOOR OPENING DOOR OPENING DOOR OPENING
IN OUT
IN
Determine hand of lock required from hand of door chart above.
Yale Simplicity Series Mortice Locks are mounted in accordance
with these instructions. Locks may or may not have cylinders,
lever handles or turn knob. Disregard instructions referring to the
features not required.
Important : Before drilling door, ensure correct hand is being installed.
NOTE: CASE DOES NOT need to be opened, to change HAND or
FUNCTION of LOCK.
HANDING OF LOCK
Determine hand of lock required from above hand of door chart.
Rotate bolt head to suit latching direction.
2
SNIB
Rotation of the Snib hands the lock. With snib in unlocked position, use a
cylinder pin to rotate the snib if required.
STANDARD TURN KNOB ADAPTORS
3
TURN KNOB CAM
Establish which side the adaptor is to be located, lever out Cylinder hole plug
where fitted.
PUT LOCK IN LOCKED POSITION, as shown in Step 1.
Align Adaptor cam so that it points up towards the top of the lock front plat, and
insert into the lock. (Look from the other side to check engagement with snib)
Place retainer pin through front plate to retain adaptor to lock. Ensure pin is
flush with front plate.

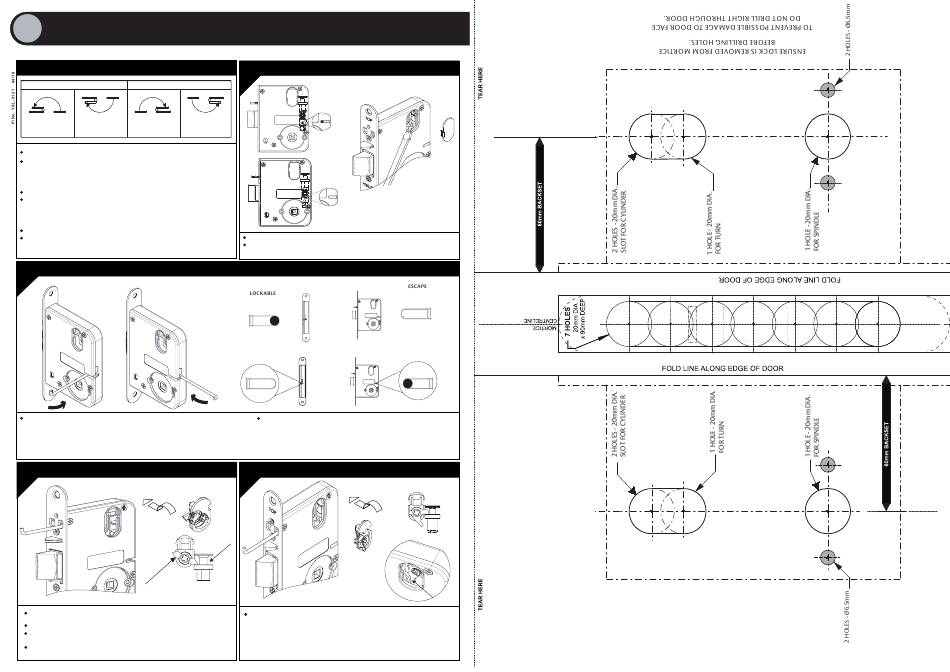

SIMPLICITY MORTICE LOCK
MOUNTING INSTRUCTIONS
SETTING LOCK STATUS
1
OUT
UNLOCKED
(Snib up)
LOCKED
(Snib down)
Ensure lock is in UNLOCKED position.
To UNLOCK (if required), using a small screwdriver, lever out Cylinder Hole
Plug where fitted and lift snib using the screwdriver.
SETTING LOCK STATUS
ESCAPE RIGHT HAND DOOR
L
ESCAPE LEFT HAND DOOR
ESCAPE
L
ESCAPE Locks
The hole on the snib indicates the side lockable.
For left hand door the hole will be visible from the left of the lock.
For right hand door the hole will be visible from the back of the lock.
The escape side will have no holes on the snib.
ANTI-LOCKOUT TURN KNOB ADAPTORS TURN KNOB ADAPTORS
4 4
YOKE
Establish which side the adaptor is to be located, lever out Cylinder hole plug
Anti-lockout is achievable via an anti-lockout adaptor. Ensure the lock is
where fitted.
unlocked and that the leg of the adaptor is installed behind the bolt frame.
PUT LOCK IN LOCKED POSITION, as shown in Step 1.
Insert Adaptor into lock body with TOP of Turn Knob Cam point away from front
of lock body. Ensure Turn Knob Cam is engaged in yoke of snib as shown.
The adaptors are handed. Ensure that the correct adaptor is installed.
Place retainer pin through front plate to retain adaptor to lock. Ensure pin is
flush with front plate
LOCKABLE
Adaptor leg
ENSURE LOCK IS REMOVED FROM MORTICE
BEFORE DRILLING HOLES.
TO PREVENT POSSIBLE DAMAGE TO DOOR FACE
DO NOT DRILL RIGHT THROUGH DOOR.
