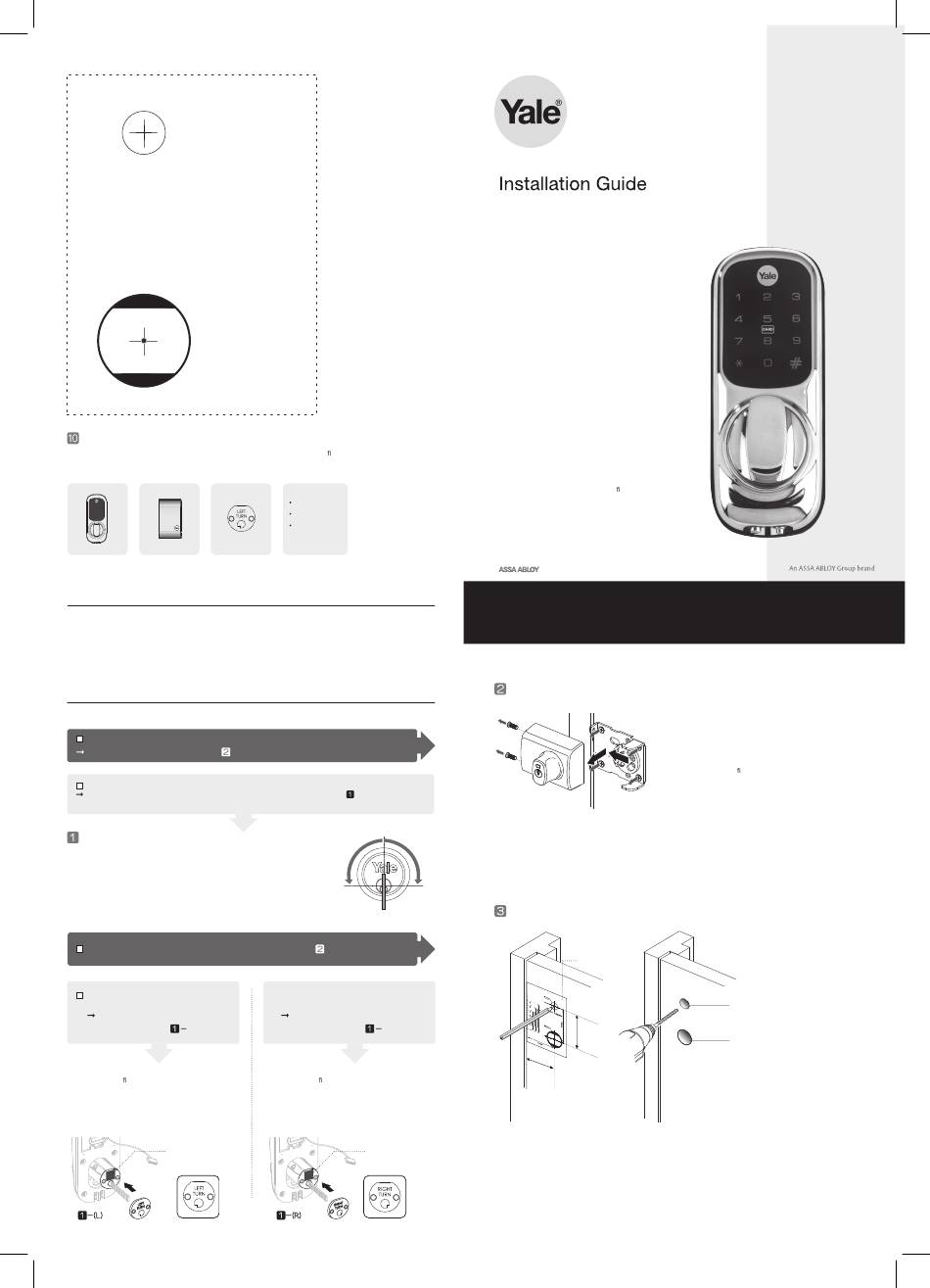

Assa Abloy Yale Smart Latch Installation Manual

20mm Hole
Contents Include
Fit Yale digital lock using hand Phillips screwdriver to avoid cross threading xing
screws. If using a cordless, please ensure it is set to low speed & torque.
Front Body Battery Pack Handing Plate
Before getting started
Are you installing the Yale Smart Latch with a new Nightlatch?
Yes, I have bought the Yale Smart Latch with a new Nightlatch to install them onto my door.
Please start from installation step ON THE RIGHT PAGE
NO, I am going to keep using the existing Nightlatch on my door with the with the Yale Smart Latch.
There are many types of Nightlatches, so please start from installation step
the check points for correct installation.
Check Point
Please use the key of your existing Nightlatch and check the below
Ⓐ
Keep your door open
Ⓑ
Insert the key in the outside cylinder key hole
Ⓒ
Turn the key 90° counter clockwise (to the left)
and check the latch fully retracts
Ⓓ
Turn the key 90°clockwise (to the right) and check the latch fully retracts
Can you open with your key in both directions? Please go to step
Can you open with your key only in the
left direction? Not in the right direction?
Your Nightlatch needs an additional plate
(L)
PLEASE GO TO STEP
Please attach the additional handing plate tightly
onto the cylinder xing surface.
The plate must be aligned with the shape.
Make sure the 'LEFT TURN' is shown as the image
below if your latch is opened only to the LEFT
direction by the key.
Self adhesive pad
Screws
Batteries
Self adhesive
pad
ISL-1290-01
BELOW, and follow
Ⓒ Ⓓ
90 90
0 0
Ⓑ
KEY
Can you open with your key only in the
right direction? Not in the left direction?
Your Nightlatch needs an additional plate
(R)
PLEASE GO TO STEP
Please attach the additional handing plate tightly
onto the cylinder xing surface.
The plate must be aligned with the shape.
Make sure the 'RIGHT TURN' is shown as the image
below if your latch is opened only to the RIGHT
direction by the key.
Self adhesive pad
Smart Latch
Please read the intructions before tting and
using the Yale Smart Latch.
The functions and design of this product can be
.
changed without prior notice for performance
and quality improvements.
The smarter way to protect your home.
Disassemble Lockset
Please disassemble your existing Nightlatch
case and mounting plate.
*The Nightlatch and plates above are generic
images. If you are retro tting the Yale Smart
Latch, your existing Nightlatch may be different.
Door Preparation
Use template
provided
72.5mm
60mm
At the height you want your lock, use a pencil to mark a spot exactly 60mm from the edge
of the door. At that spot, drill a 32mm diameter hole through the door. Or if using an
existing cylinder hole, use the template to mark the position for the 20mm hole.
20mm Hole
32mm Hole
