SPARROW HAWK

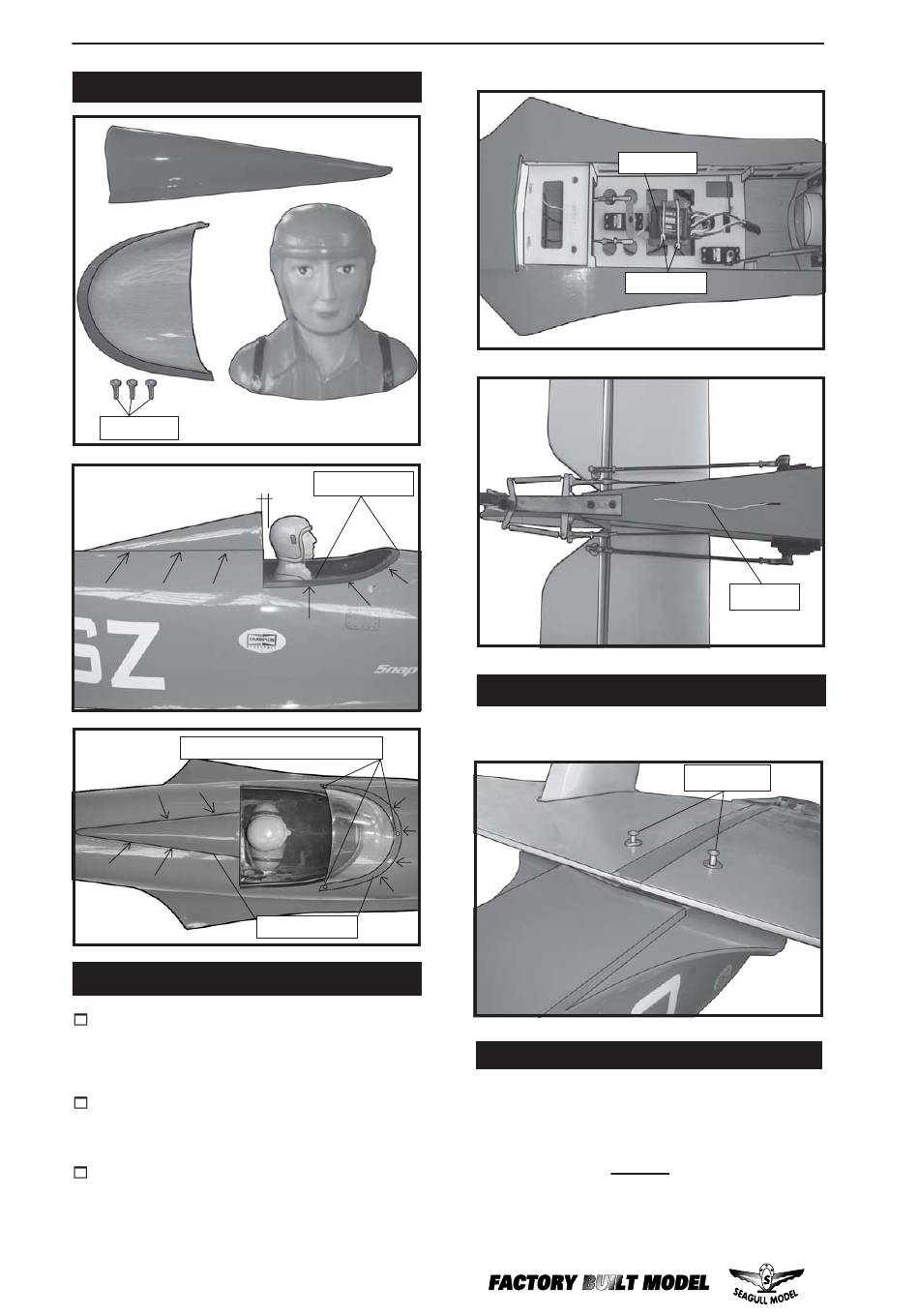

INSTALLATION PILOT.
2 x8 mm.
10 mm.
Machine screw 2 x 8mm.

INSTALLING THE RECEIVER.

1) Plug the servo leads and the switch
lead into the receiver. Plug the battery pack
lead into the switch also.
2) Wrap the receiver and battery pack in
the protective foam rubber to protect them
from vibration.
3) Route the antenna in the antenna tube
inside the fuselage and secure it to the bot-
tom of fuselage using a plastic tape. See pic-
ture below.
18
Silicon glue.
Silicon glue.
Instruction Manual
Receiver.
Tie Wrap.
ATTACHMENT WING - FUSELAGE.
Bolt the wing to fuselage.
BALANCING.
1) It is critical that your airplane be balanced
correctly. Improper balance will cause your
plane to lose control and crash. The center of
gravity is located 11.5cm back from the lead-
ing edge of the wing, measured at the wing
tip.
Antenna.
Wing bolt.
