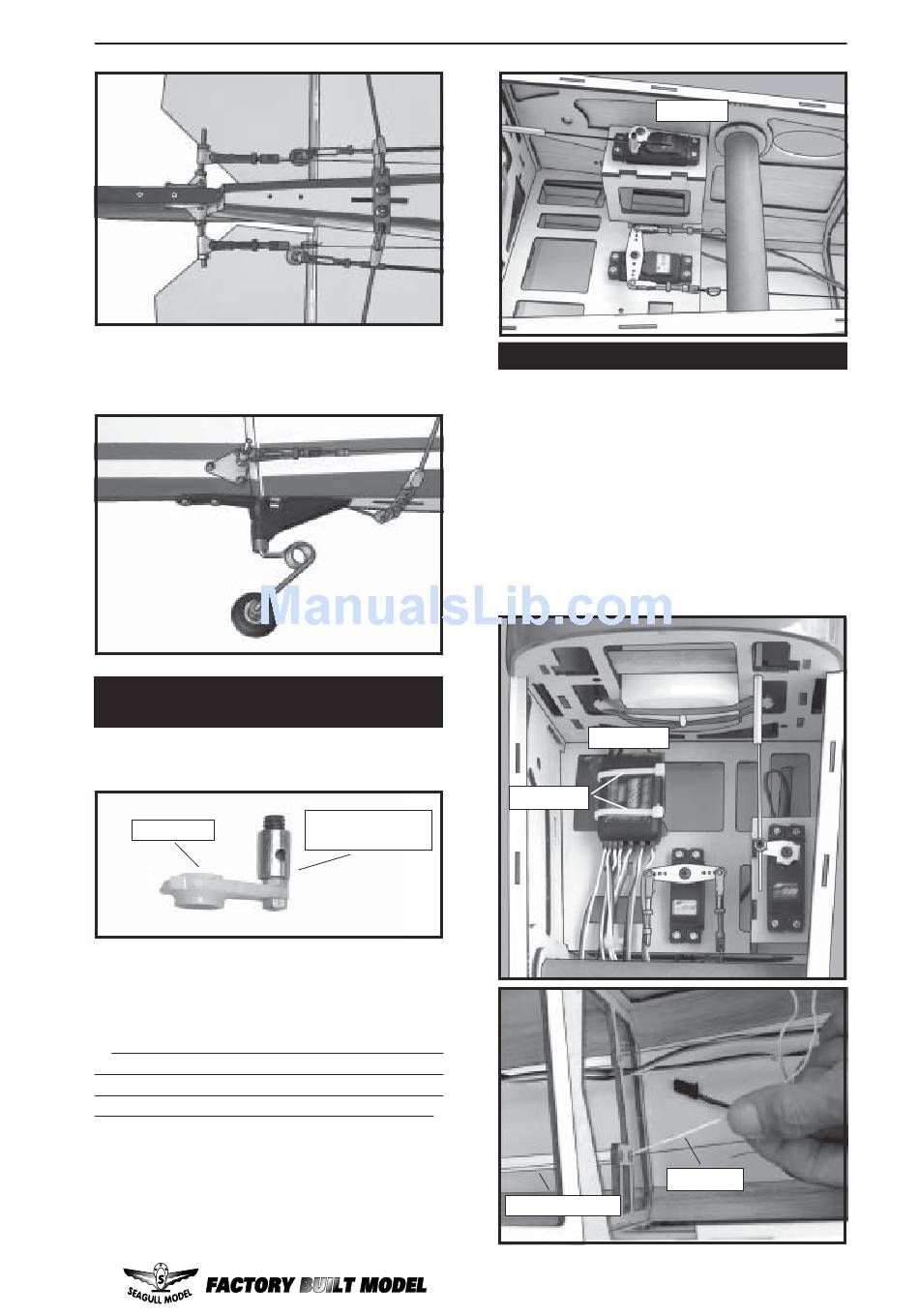

! 4) Secure the tail wheel bracket in place
using two 3x25mm wood screws. Be careful
not to overtighten the screws.
THROTTLE SERVO ARM
INSTALLATION.
!
) Install adjustable servo connector in the
1
servo arm.
Servo arm.
! 2) Install the rubber grommets and brass
collets onto the throttle servo. Test fit the servo
into the throttle servo mount.
Because the size of servos differ, you may
need to adjust the size of the precut opening
in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
! 3) Secure the servos with the screws pro-
vided with your radio system.
! 4) Install the pushrod throttle.
www.seagullmodels.com
Adjustable Servo
connector.
Throttle.

INSTALLING THE RECEIVER.

! 1) Plug the six servo leads and the switch
lead into the receiver. Plug the battery pack
lead into the switch also.
!
2) Wrap the receiver and battery pack in
the protective foam rubber to protect them
from vibration.
! 3) Route the antenna in the antenna tube
inside the fuselage and secure it to the bot-
tom of fuselage using a plastic tape. See pic-
ture below.
Receiver.
Tie wrap.
Antenna tube.
Antenna.
21
