SPARROW HAWK
Secure the servos with the screws pro-
vided with your radio system.
Aileron Electric.
Plastic tape.
Repeat the procedure for other wing
haft.

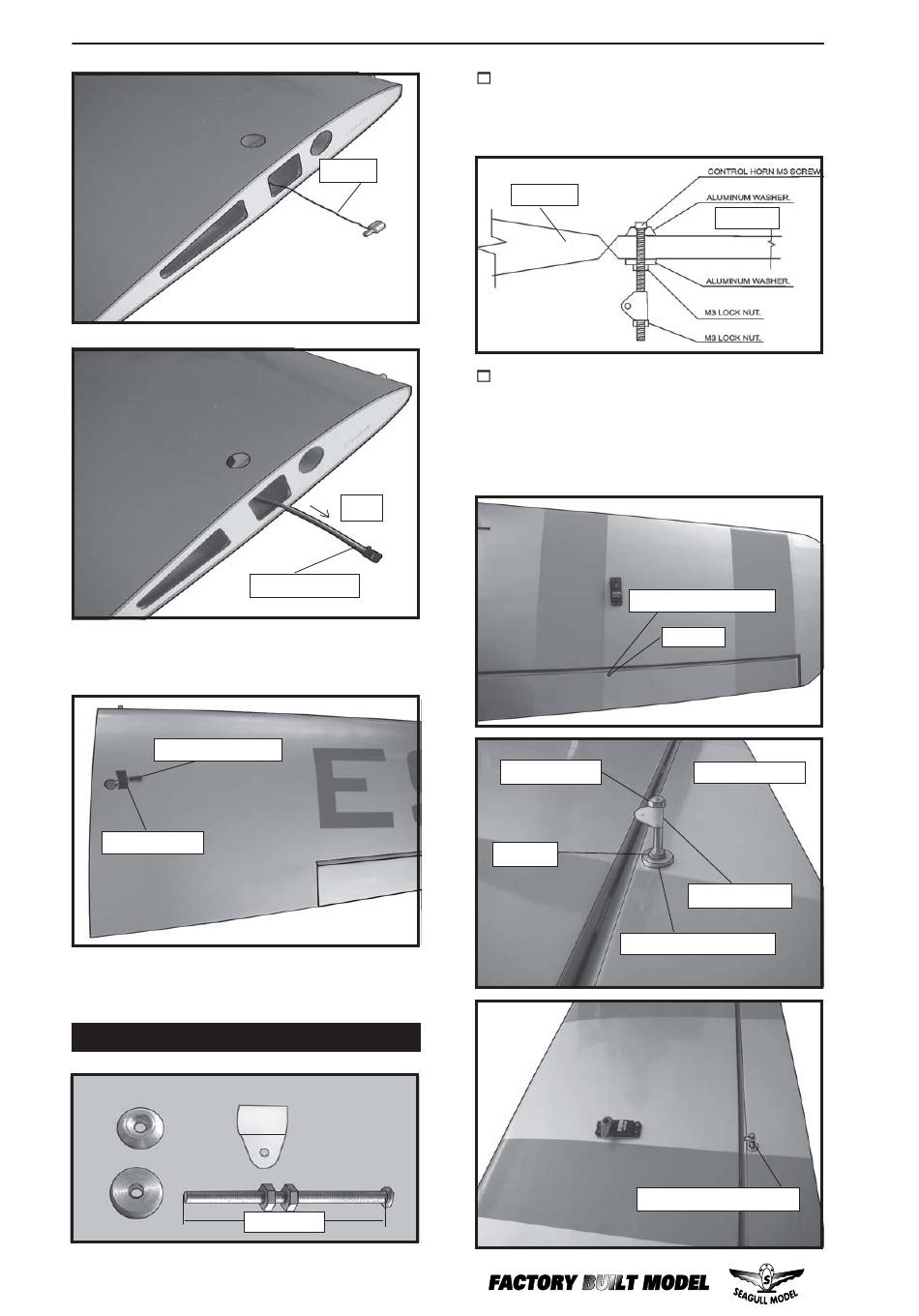

AILERON CONTROL HORN INSTALLATION.
10
String.
Pull.
Electric wire.
3x45mm.
Instruction Manual
1) Aileron control horn:
Mix a small amount of 30 minute epoxy and
lightly coat the inside of the hole in the aileron
and the 3x45mm control horn screw.
Wing.
2) Thread the screw (insert the washer)
into the hole from the top of surface. Wipe away
any excess epoxy on the wing and screw with
rubbing alcohol and a paper towel. Screw the
M3 nut (insert the washer) in place as shown.
Alllow the epoxy to fully cure.
Pre-drill at factory.
M lock nut.
3
M nut.
3
Aluminium washer.
Aileron control horn.
Aileron.
3.2mm.
Wing bottom.
control horn.
